Bel 80 Series - Page 2

Bel Stewart Connector
Page
2
of
2
MN800006
-
A
1
11118 Susquehanna Trail South Glen Rock, PA 17327
80 SERIES UNSHIELDED CABLEJACK
ASSEMBLY INSTRUCTIONS
80 SERIES CA
BLEJACK ASSEMBLY INSTRUCTIONS

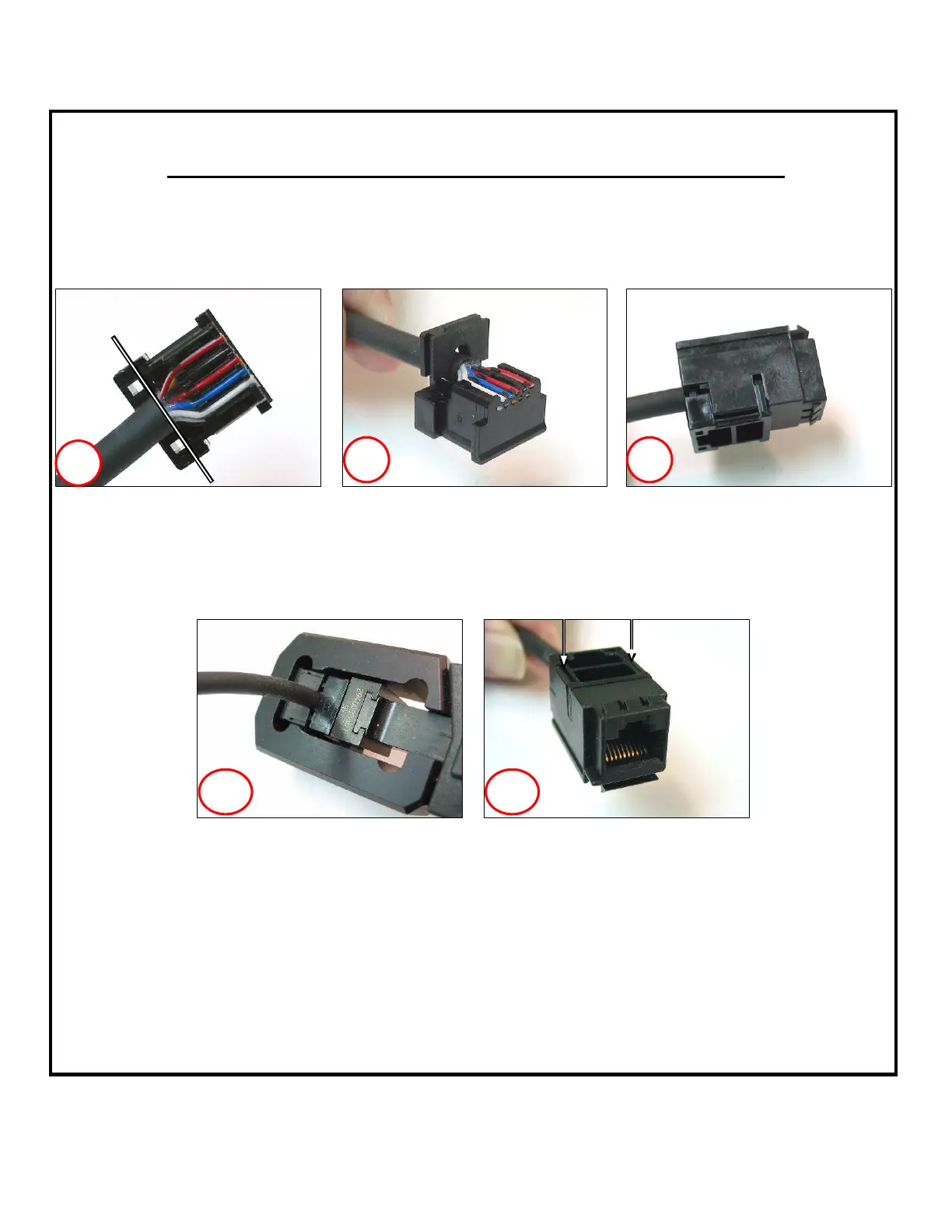

Assembly steps 1
–
11: (Cont.)
Snap upper row conductors into
place. Cable jacket ends in front
of square holes
7
Place strain relief over cable
8
Place completed rear
assembly into housing
9
Place jack into crimper tool and
crimp
10
Assembly complete. Verify both
sides are latched
11
