Secure DVI-I KVM Dual-Head Switch with Audio User Manual
SECTIONS
Table of Contents
1 3 4 5 6 87
OVERVIEW
2

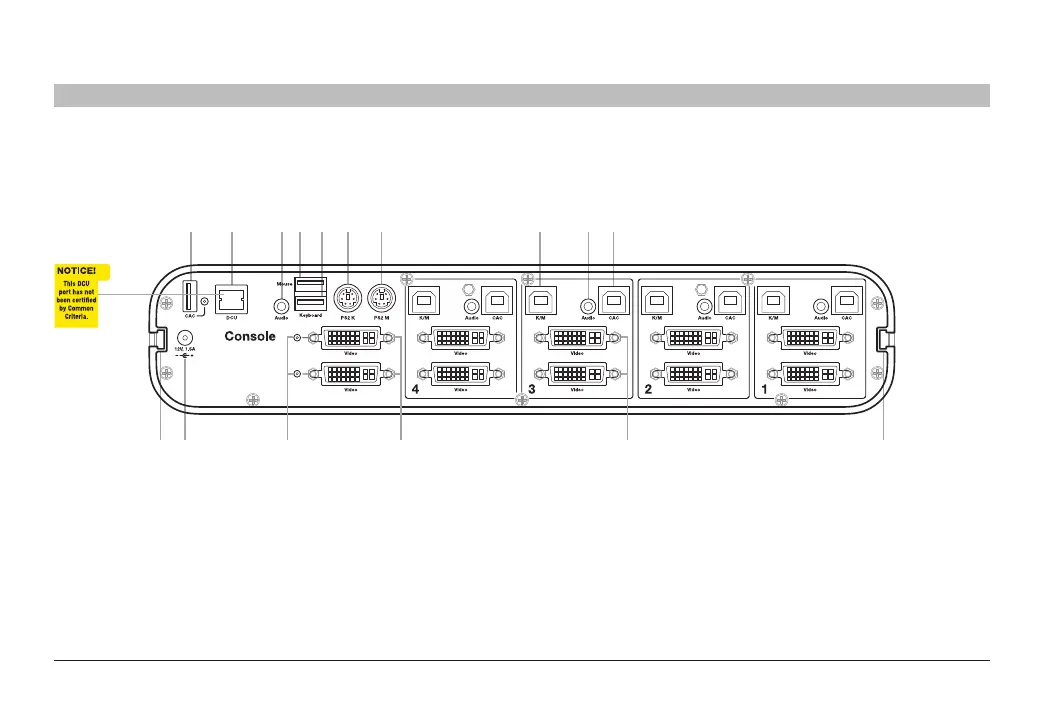

Unit Display Diagram, Back View
F1DN104F-3 model shown
2 43 5 6 7 8 9 101
13 14 15 1611 12
1 Console USB CAC Reader Port
and LED (F1DN104F-3 model only)
7 PS/2 Console mouse Port 13 Video Diagnostic LEDs
2 Remote control (non-operative, for future use) 8 Computer USB KM port 14 Console DVI Ports
3 Console Audio Input Jack 9 Computer audio port 15 Computer DVI ports
4 Console USB Mouse Port 10 Computer CAC USB Port
(F1DN104F-3 model only)
16 Mounting Track
5 Console USB Keyboard Port 11 Mounting Track
6 PS/2 Console Keyboard Port 12 DC Power Jack
