ASSEMBLY INSTRUCTIONS
NOTE: ONE PERSON CAN ASSEMBLE THIS FLAT PANEL MOUNTING SYSTEM, BUT TWO PEOPLE ARE REQUIRED TO
MOUNT THE FLAT PANEL TV TO THIS SYSTEM AND TO SLIDE THE FURNITURE CABINET TO DESIRED LOCATION.
D
A
1
A
1
1
A
Fig. 1

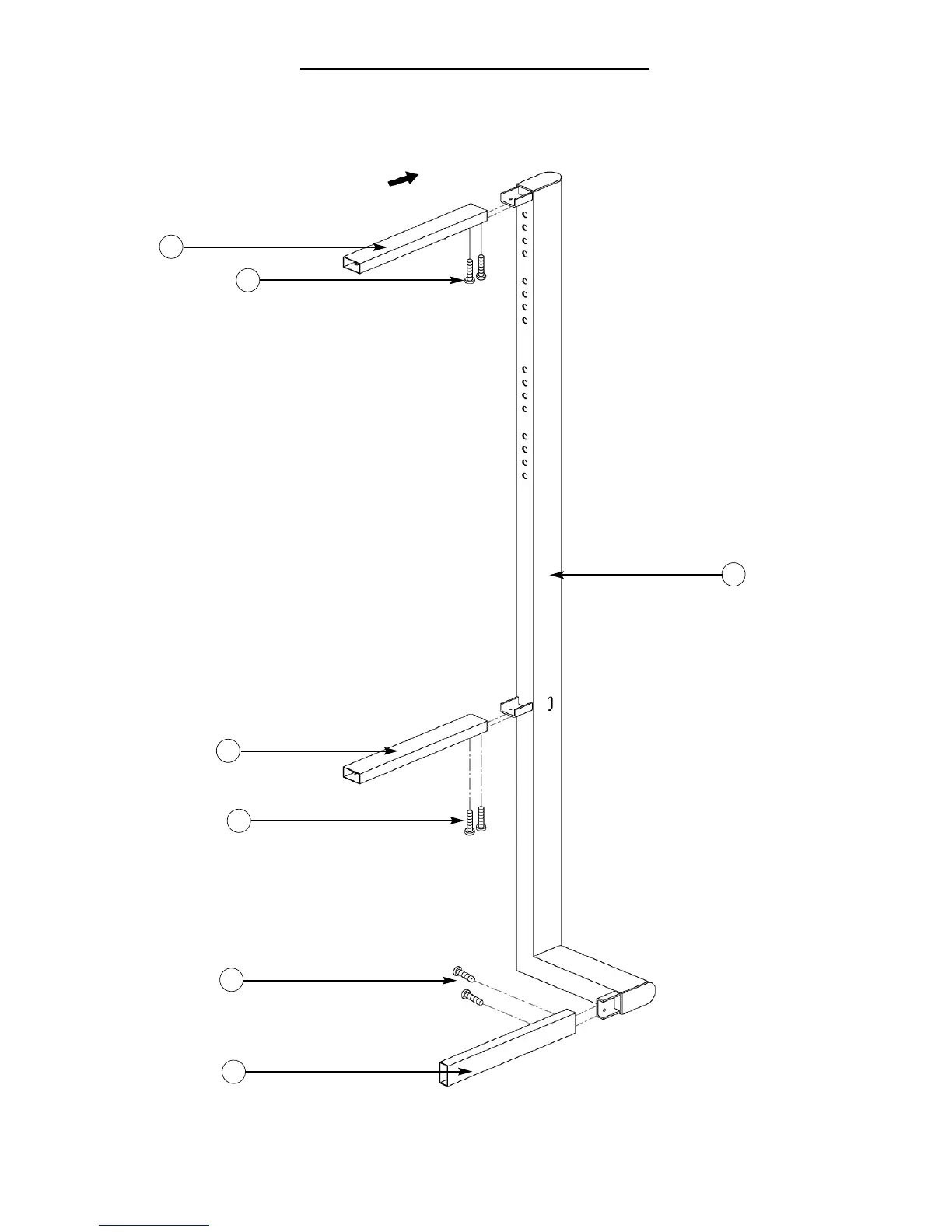

A. PLACE the Right upright frame (D) on a soft sur
face with the bottom L shaped base of the frame facing
upward. SECURE the three cross bars (A) to the bottom, center and top of the frame using the 10mm
smaller scr
ews (1) as shown in Fig. 1.
