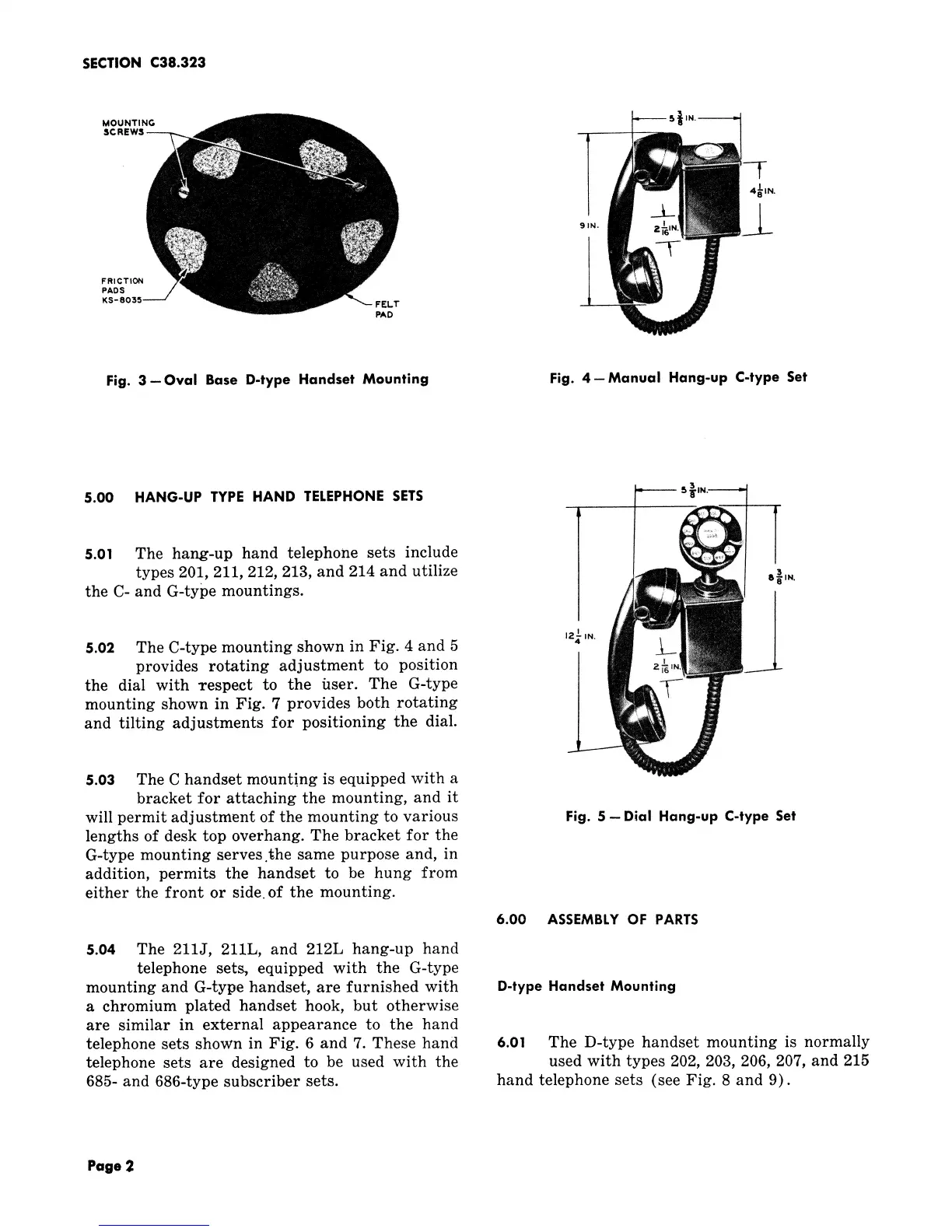

SECTIONC38.323
MOUNTING 5
$CRE
-T
4_IN.
9IN.
FRICTION
PADS
KS- 8035 -- FELT
PAD
Fig. 3--Oval Base D-type HandsetMounting Fig. 4--Manual Hang-up C-type Set
5.00 HANG-UPTYPEHAND TELEPHONESETS _ s
,
5.01 The hang-up hand telephone sets include
types 201,211, 212, 213, and 214 and utilize s_,,.
the C- and G-type mountings.
12_. IN.
5.02 The C-type mounting shown in Fig. 4 and 5
provides rotating adjustment to position
the dial with respect to the user. The G-type
mounting shown in Fig. 7 provides both rotating
and tilting adjustments for positioning the dial.
5.03 The C handset mounting is equipped with a
bracket for attaching the mounting, and it
will permit adjustment of the mounting to various Fig. 5 -Dial Hang-up C-type Set
lengths of desk top overhang. The bracket for the
G-type mounting serves.the same purpose and, in
addition, permits the handset to be hung from
either the front or side. of the mounting.
6.00 ASSEMBLYOF PARTS
5.04 The 211J, 211L, and 212L hang-up hand
telephone sets, equipped with the G-type
mounting and G-type handset, are furnished with D-type Handset Mounting
a chromium plated handset hook, but otherwise
are similar in external appearance to the hand
telephone sets shown in Fig. 6 and 7. These hand 6.01 The D-type handset mounting is normally
telephone sets are designed to be used with the used with types 202, 203, 206, 207, and 215
685- and 686-type subscriber sets. hand telephone sets (see Fig. 8 and 9).
