D. Install the oven.

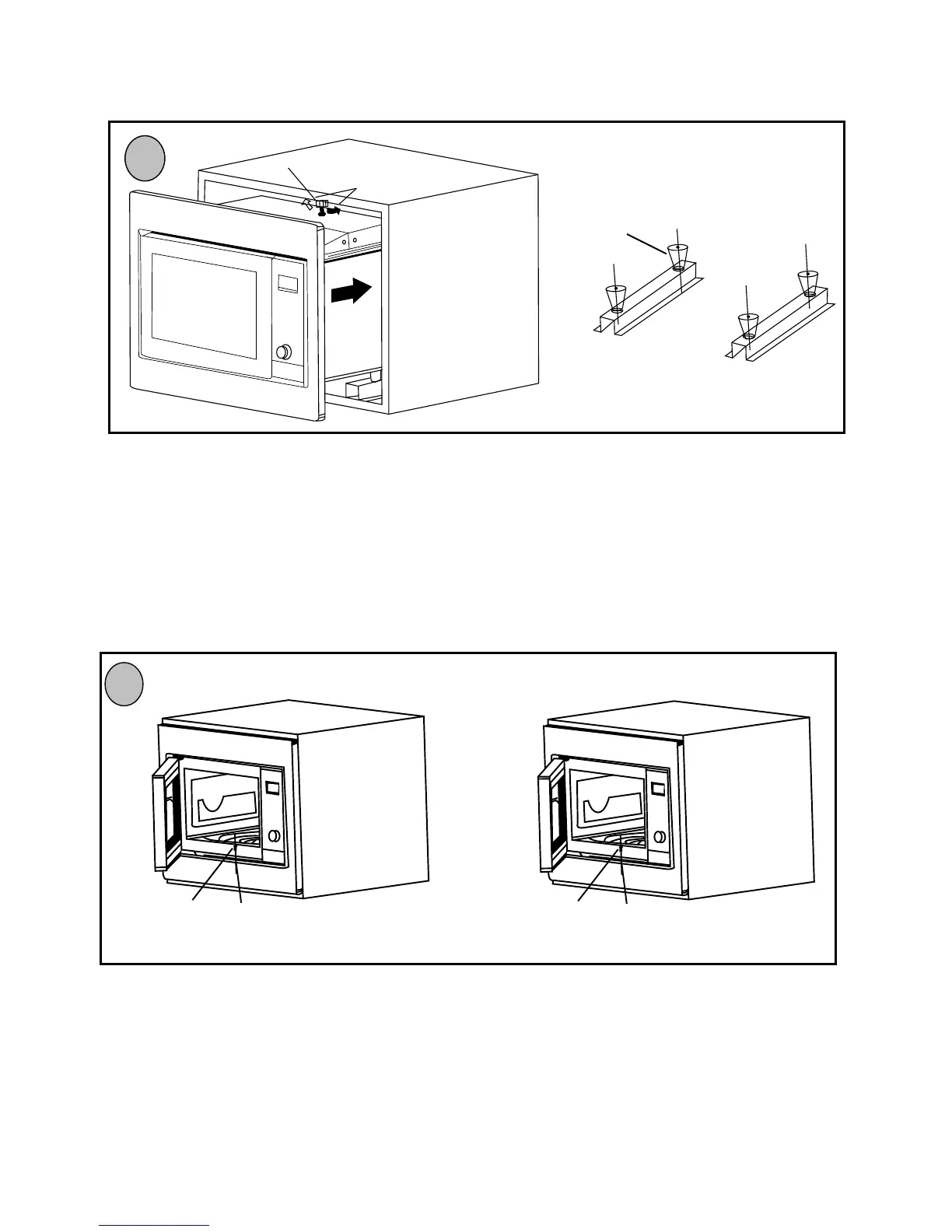

5. Install the oven into the cabinet.
z Adjust the height of SCREW B to keep 1mm gap between the SCREW B
and the top plane of cabinet.
z Make sure that the OVEN FEET are aligned with the grooves of brackets
when install the oven into the cabinet.
z Do not trap or kink the power cord.
6. Open the door; fix the oven to the cabinet with SCREW C at the
INSTALLATION HOLE of TRIM KIT.
6
Then fix the TRIM-KIT PLASTIC COVER
to the INSTALLATION HOLE.
SCREW C
INSTALLATION HOLE
TRIM-KIT PLASTIC COVER
INSTALLATION HOLE
ADJUST HEIGHT
ADJUST SCREW B
OVEN FOOT
5
