DRAWER ASSEMBLY INSTRUCTIONS
M
M
5
6
6
7

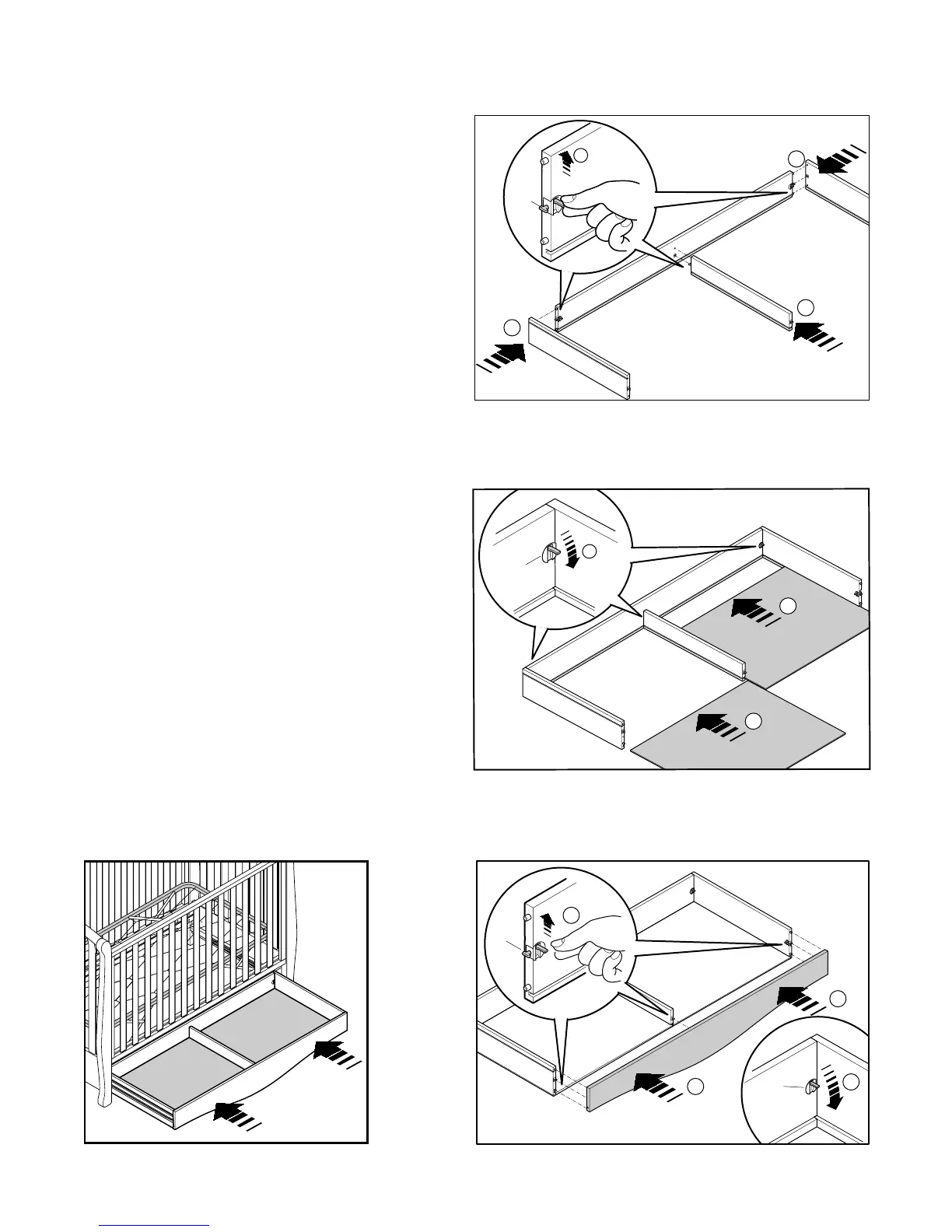

Step 15 Diagram 16-17
DRAWER ASSEMBLY
Turn the metal tabs so they are in the
unlocked position (tabs up, diagram 10-1)
Attach drawer sides and drawer center to
drawerback and push metal tabs down to
lock sides and center into place. (diagram
14-3) Indert two drawer bottom boards (dia-
gram 14-4) into channels.
Step 16 Diagram 18
Attach the drawer front to drawer sides and
center and lock tabs.
Diagram 19
Slide drawer into guides on crib end panels.
(Wheel to Wheel)
DIAGRAM 16
DIAGRAM 17
DIAGRAM 18DIAGRAM 19
