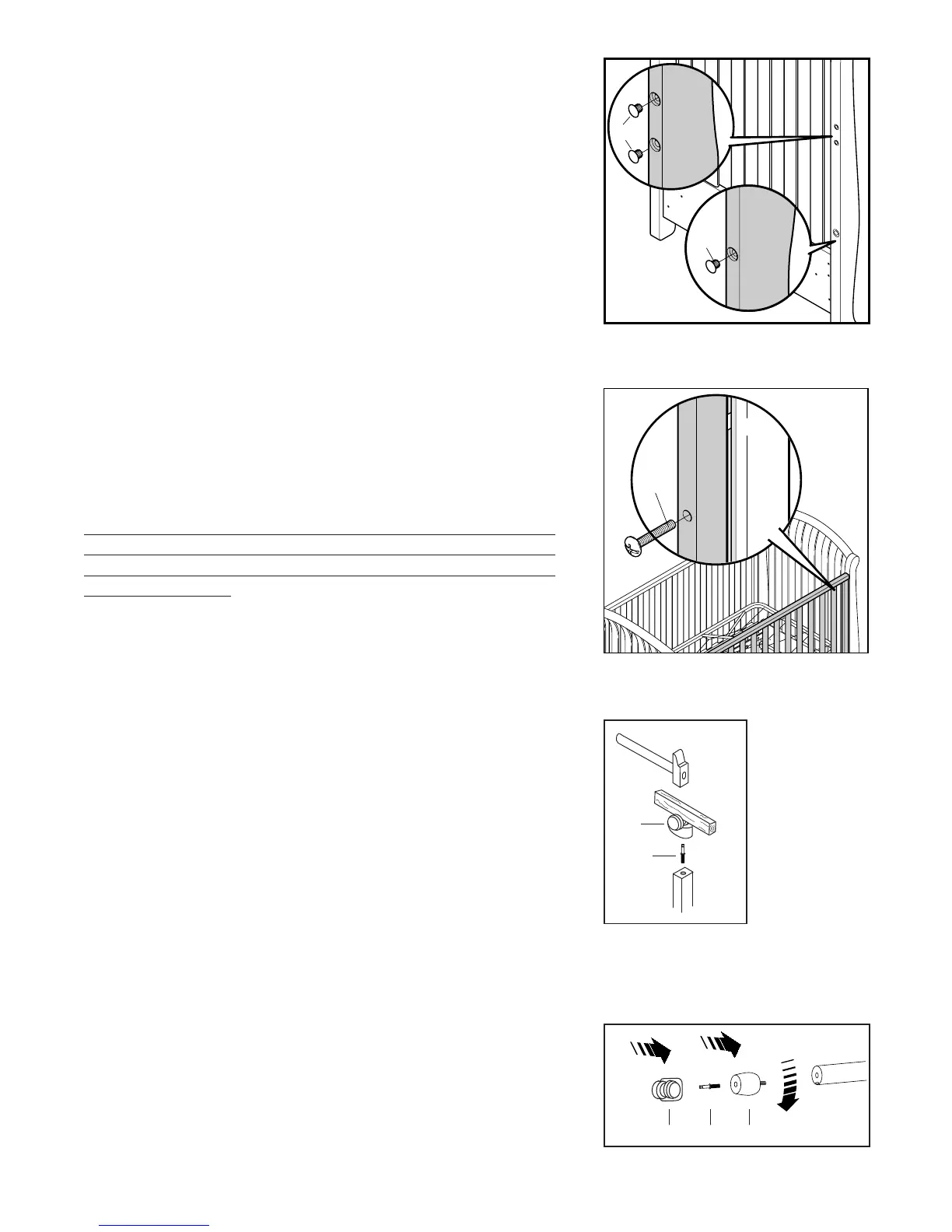

Step 12 Diagram 13
MASKING THE HOLES IN THE LEGS
Use wrench “B” to remove screws X and the spanner “Y2”
for screw Y. Replace the screws with the masking caps X1
and Y1 as shown in diagram 12.
Step 13 Diagram 14
TO FIX SIDE
Raise side until it locks. Use 2 screws N to fix side. Tighten
screws.
IN ORDER TO INCREASE THE ST
ABILITY OF THE COT
AND IMPROVE THE OPERATION OF THE MOVABLE
SIDE, IT IS ADVISABLE TO SECURE THE OTHER SIDE
USING SCREWS.
Step 14 Diagram 15
MOUNTING THE CASTERS
DO NOT STRIKE THE WHEELS! Place a piece of wood or
something similar that will fit between the wheels and gen-
tly tap with a hammer.
IMPORTANT NOTE: On models with removable
bun feet (U), screw on bun foot (U) first. Then, if
you wish to use castors, when are optional, follow
step 12 (See diagram 13).
DIAGRAM 15
