Recommended Suite Installation Dimensions
Installation
22” and 22”-16” Chollerton models BM-06 and 2785
● Ensure that the mains power is isolated to the appliance plug / socket point.
● Offer the fire into the opening
● Mark on the wall the positions of the fixing points on the side flanges of the fire. See diagram 1 and 2.
● Remove the fire from the opening.
● Drill and plug the wall holes using suitable fixings.
● Connect the appliance to the plug / socket.
● Offer the appliance back into the opening and using suitable screws fix the appliance in position.
● Fit the trim to the magnets provided on the fire.
● Restore power to the plug / socket.
Ember model 1584
● Carefully mark out the hole positions in a central position. Drill and plug fixing holes as shown in
diagram 3 (please ensure correct plugs for the wall / back panel medium are used).
● Fit two pan head screws (No.8 x Min 25 long not supplied) leaving approximately 2mm between the
wall and the screw head
● Lift the fire in to the aperture cable side first, moving from the left, taking great care not to damage
either the cable or hearth. Once the cable side of the fire is in position, lift the fire in to a central
position opposite the retaining screws.
● Lift the fire up and hook the keyhole slots on to the retaining screws. Please note that to ensure a
snug fit against the wall the screw heads as mentioned in section 1 can be adjusted in or out
8
BM-06 (22” Pryzm) (Patent Pending)
2785 (22” – 16”) Chollerton Flat wall
fix with spacer
Fully inset no spacer
565 min
590 max
565 min
590 max
413 min
570 max
513 min
570 max

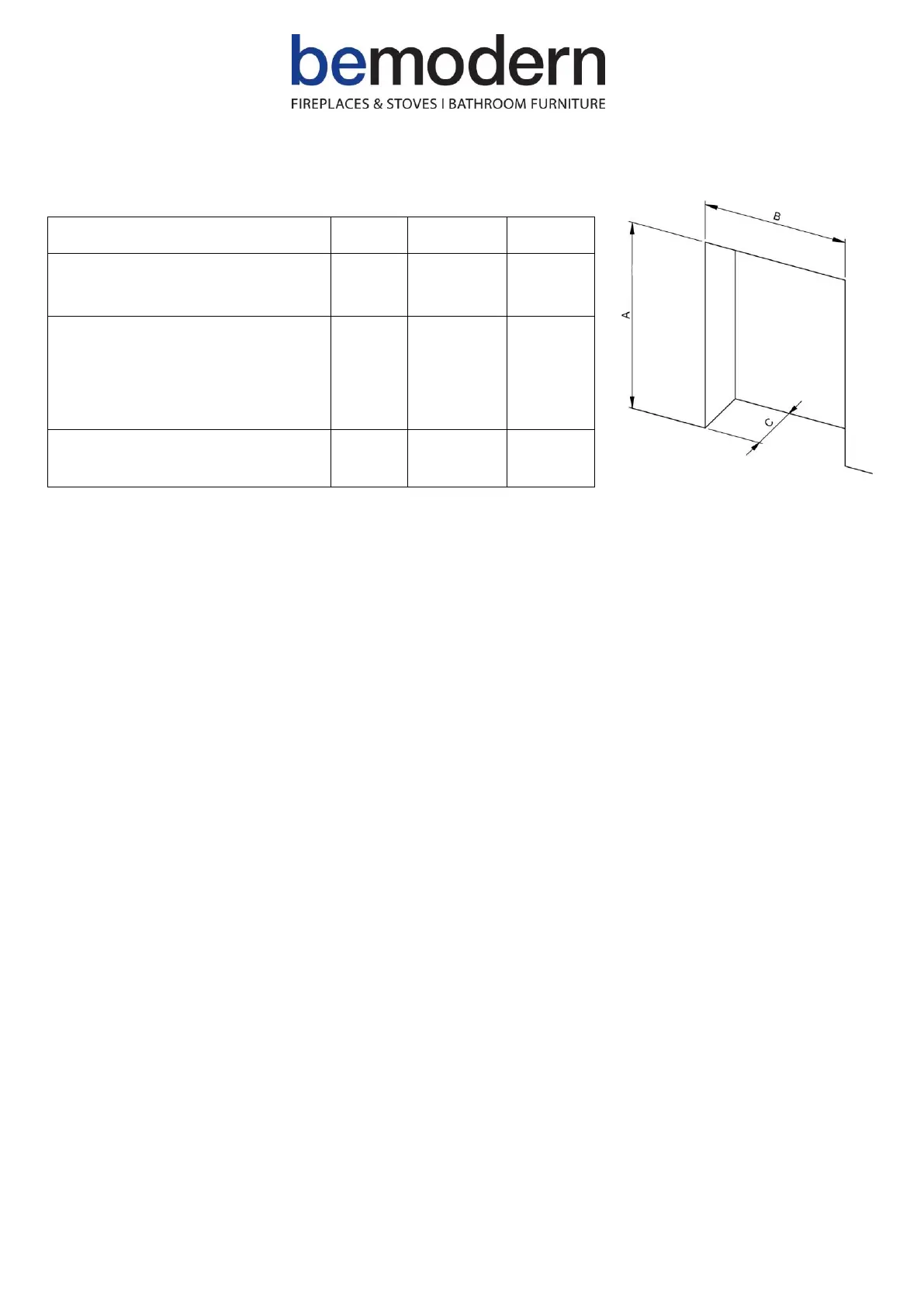

Recess dimensions: (unit: mm)
