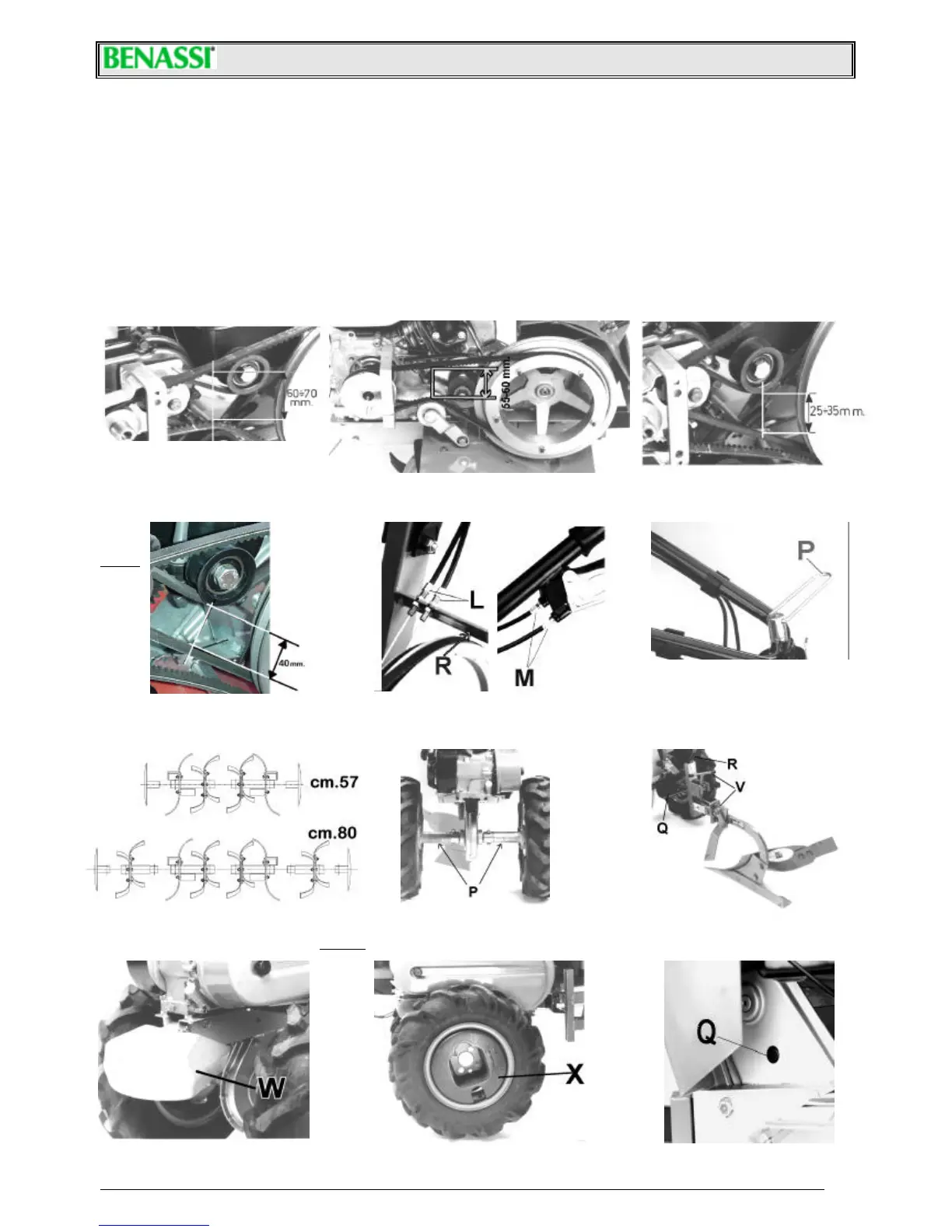

• Fit the tool post in the place of the spur support, fixing it to the handlebar support with the bolt (pict.17 ref. “P”).
• Fit the plough on the tool post. The plough can fit three different positions, because the pin (ref “R” pict. 18) can be inserted
in three different holes.
• The plough can be adjusted by changing the inclination of the blades. Both full side and vertical adjustments are possible bu
means of the tension bar or of both bolts. (ref “V” pict.18).
• In doing this kind of work, you have to assemble a ballast in the front of the machine. Fix the ballast in the place of the
transport wheel support (ref “W” pict.19), using two bolts. You have also to assemble two ballasts on the wheels (ref. “X pict.
20), using two screws that fix them to the internal side of the wheel rim.
CAUTION: IT IS ADVICED NOT TO KEEP THE MOTOR RUNNING WHEN THE MACHIN IS NOT BEING USED FOR ITS
SPECIFICAL PURPOSE.
- Picture 11 - - Picture 12 - - Picture 13 -
HIGH FORWARD SPEED REDUCED FORWARD SPEED REVERSE MOTION BL 45
- Picture 14 -
(REVERSE MOTION BL 45 HONDA) - Picture 15 - - Picture 16 -
- Tillers - - Picture 17 - - Picture 18 -
- Picture 19 - - Picture 20 - - Picture 21 -
