OPERATION
1). Open the battery compartment, located in the front of the thermometer handle,
by pulling forward on either side, and insert the 2 x 1.5V AAA batteries included
with the tool.
2). Aim the infrared thermometer and press the trigger and release to activate the
thermometer. Push (C) to activate the laser if desired. The temperature of the
target will be displayed on the LCD screen.
3). For continuous scan measuring, pull the trigger and do not release. Slowly move
the thermometer to scan the temperature of the target. The temperature will
display continuously on the LCD display screen. The max temperature value will be
displayed on the LCD screen during continuous temperature scanning.

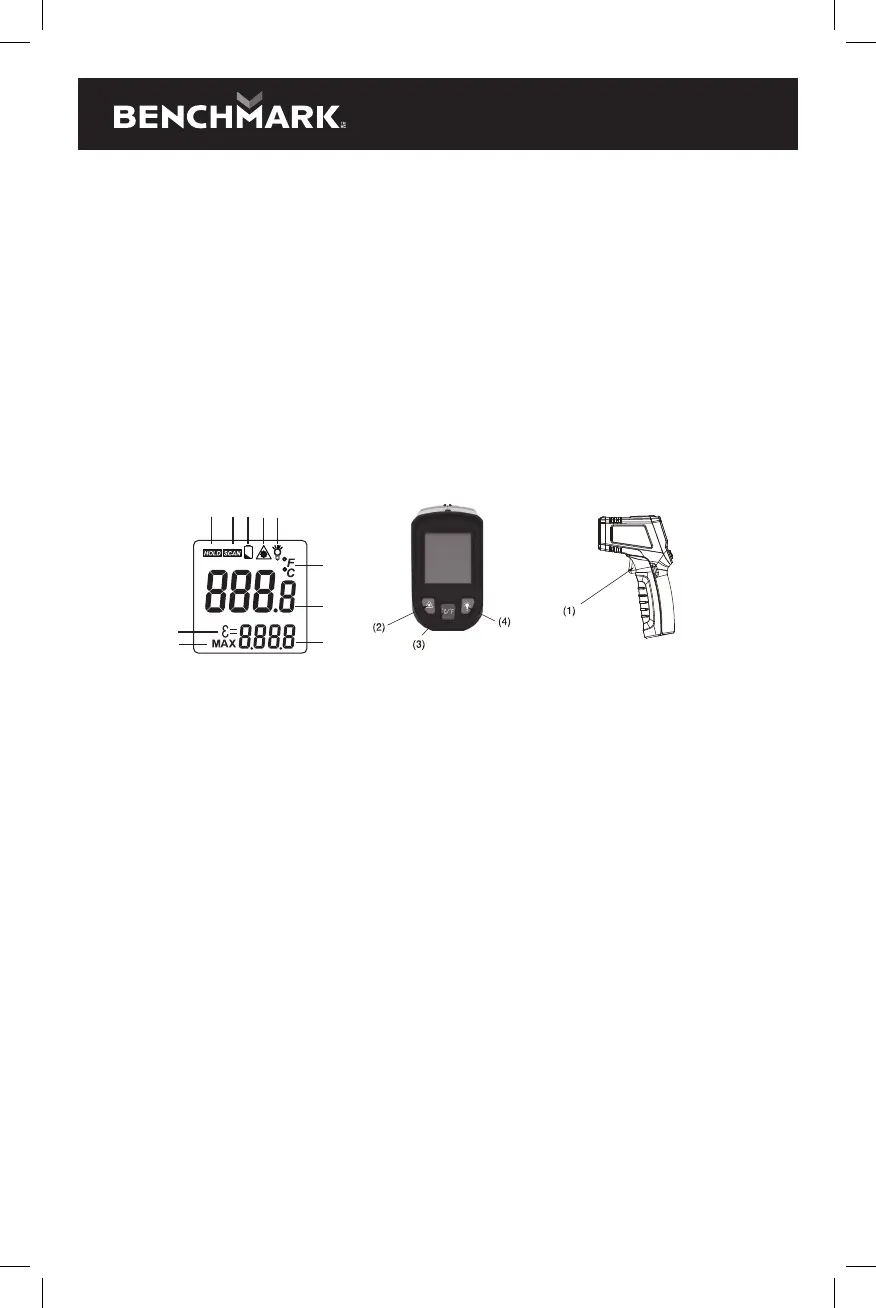

SCREEN DISPLAY:
A. Hold: The HOLD function automatically retains the current temperature once
the trigger is pushed and then released.
B. Scan: SCAN will show on the LCD screen when the trigger is depressed and until
it is released. The final temperature scanned will be displayed at the "G" position
and the maximum temperature recorded during the continuous scan will be
displayed at the "J" position.
C. Laser ON/OFF - Press button (2) to turn the laser ON/OFF. The symbol will be
displayed on the LCD screen when the laser button has been pushed. The laser is
used for accuracy when aiming at a specific target.
D. LCD BACKLIGHT - Push button (4) to activate the LCD backlight, push again to
turn the light o.
E. Power: Battery capacity indication.
F. MODE - Push button (3) to switch temperature readings between Celcius and
farenheit
G. Temperature value.
J. Max temperature value or Emissivity:The thermometer is preset to an emissivity
of 0.95. To change this preset, hold the Temperature unit button (3) and continue
to hold down until the emissivity value flashes. Push either the laser ON/OFF
button (2) to increase the emissivity value or push the "mode" button (3) to
decrease this value. Push button (2) again to save the emissivity value selected.
H. Emissivity value symbol
I. Max temperature
NOTE: The thermometer automatically shuts o if left idle for 15 seconds.
A B E C D
F
G
J
I
H
