FEATURES AND CONTROLS
KNOW YOUR PRESSURE WASHER
Read the operator's manual and safety rules before operating your pressure washer.

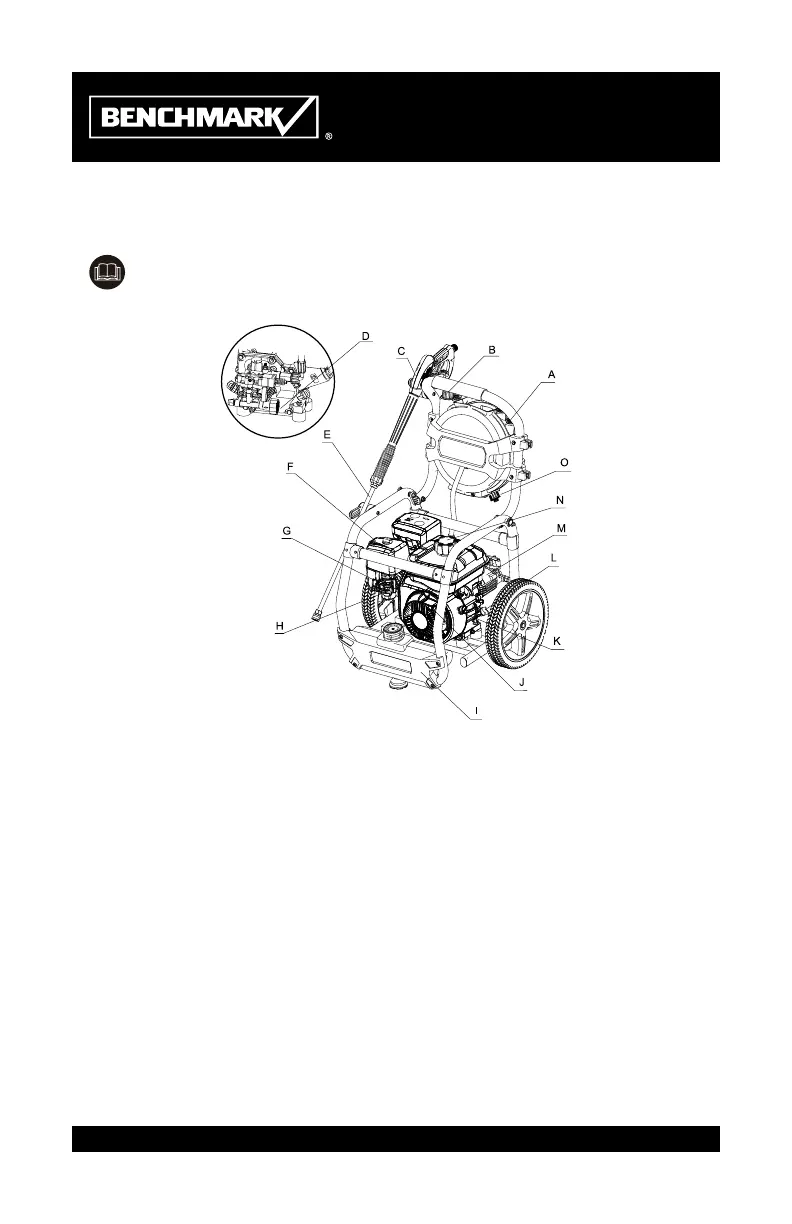

Compare the illustrations with your pressure washer to familiarize yourself with
the locations of various controls and adjustments. Save this manual for future reference.
A - Quick-Connect Nozzles - 15°, 40° for high pressure, soap is for detergent function with low
pressure water steam. Turbo is for rotating flush.
B - Nozzle Needle - Clean the nozzles.
C - Spray Gun - Controls the application of water onto cleaning surface with trigger device. In
-
cludes trigger lock.
D - Water Inlet - Connection for garden hose.
E - Spray Wand - Attach to spray gun to use four different quick-connect nozzles.
F - Air Filter - Protects engine by filtering dust and debris out of intake air.
G - Choke Lever - Used to help start a cold engine.
H - Fuel Valve Lever - Set the fuel supply valve.
I - Detergent Tank - Use to store detergent for the low pressure water stream.
J - Recoil Starter - Used for starting the engine manually.
K - Engine Switch - Set the engine in starting mode and stop a running engine.
L - Oil Fill Cap/ Dipstick - Check, fill and drain engine oil here.
M - Pump - Develops high pressure water.
N - Fuel Tank Cap - Fill engine with regular unleaded fuel here. Always leave room for fuel expansion.
O - High Pressure Hose - Connect one end to the spray gun, the other end to the pump (already
assembled to the pump at the factory).
