ATTACHING THE 20" HIGH PRESSURE WAND
1. Insert the end of the 20" high pressure wand into the front opening
of the power washer.
2. Ensure when inserting, both the large tab and the small tab located on the
end of the 20" high pressure wand are both aligned with the large and small
notches located inside the front opening of the power washer.
3. Turn clockwise to lock wand into power washer.
4. To remove wand from the power washer, press in and turn wand half
a turn counter-clockwise and pull out (Fig 6 and 7).
ATTACHING THE 5-POSITION ROTATING NOZZLE
1. Push the locking sleeve on the quick connect nozzle coupler on the end
of the wand back.
2. While holding locking sleeve back, insert the end of the 5-position rotating
nozzle into the coupler.
3. Release the locking sleeve on the quick connect coupler
to lock the 5-position rotating nozzle in.
4. Pull on the nozzle to ensure it is locked into the quick connect nozzle
coupler on the wand before use (Fig. 8).

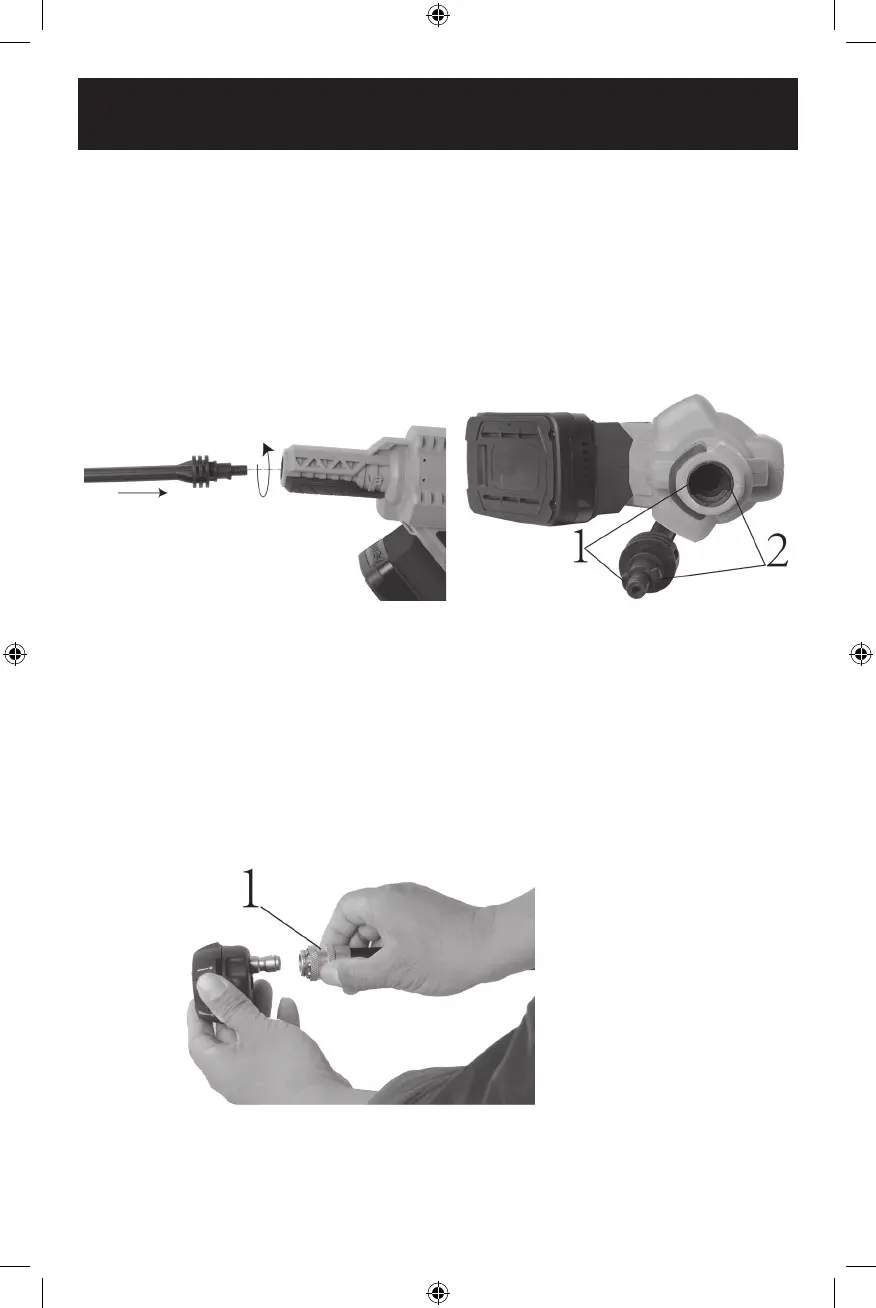

FIG. 6
FIG. 8
FIG. 7
