20V MAX BRUSHLESS 2 SPEED POWER WASHER
16
5-POSITION ROTATING NOZZLE ADJUSTMENT
1. The 5-position rotating nozzle can be rotated to select 1 of 5 spray angle
0° to 40°+ with the arrow printed on the rear portion of the nozzle (2) Fig. 11.
2. Please see list below of recommended settings for various cleaning applications.
Setting 1 0°: This delivers a pinpoint stream of pressurized water and is extremely
powerful. It covers a very targeted area. This nozzle should only be
directed at surfaces that can withstand high pressure such as metal
or concrete. Do not use this nozzle to clean wood.
Setting 2 15°: This position is for intense cleaning or stripping of small areas and
surface preparation such as removing dirt, mildew, or paint. This should
only be used on areas and materials that can withstand high pressure
Setting 3 0°+: This position delivers the narrowest degree of spray and should
only be used on areas that can withstand high pressure such
as metal or concrete.
Setting 4 40°: This nozzle delivers a 40-degree spray pattern and a less powerful
stream of water. This nozzle can cover a wide area and can be used for
most general cleaning jobs.
Setting 5 40+°: This nozzle delivers the widest degree spray pattern and can
be used for most general cleaning jobs.
WARNING: To avoid injury and damage ensure you are using the correct
nozzle setting for the job. To minimize surface damage, always use the lowest-
pressure nozzle that will do the job. If you need a stronger spray, adjust distance
SPEED (PRESSURE) ADJUSTMENT
The speed (pressure) adjustment button is located
on the top of the machine (1) Fig.12. To select
desired speed (pressure), press the button (1)
and the indicator (2) will change color depending
on the setting selected. Red is the higher setting
and the indicator will change to green which
is the regular setting (lower speed,

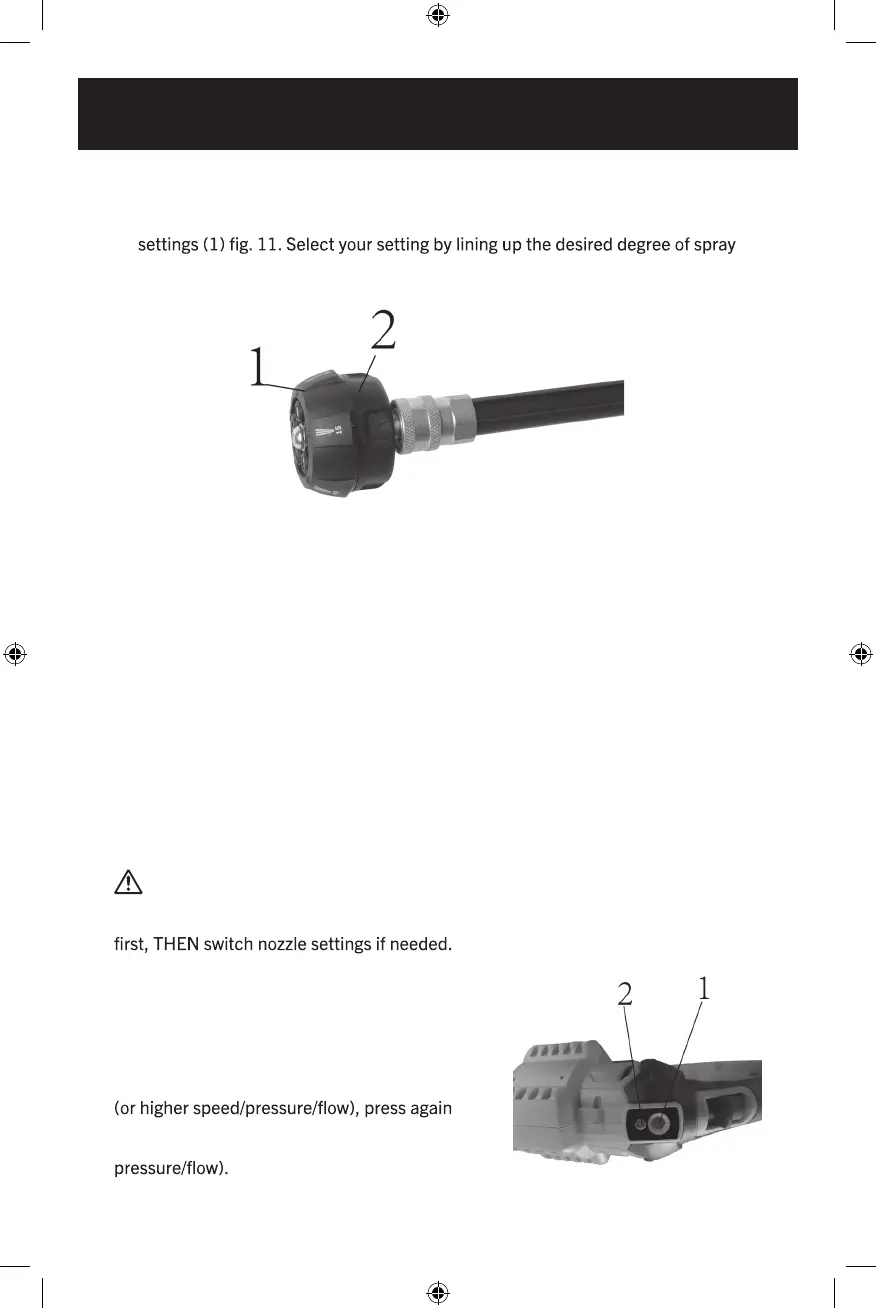

FIG. 11
FIG. 12
