1. Lift the seat and the door of the
engine compartment (Fig 31).
2. Unscrew the oil cap.

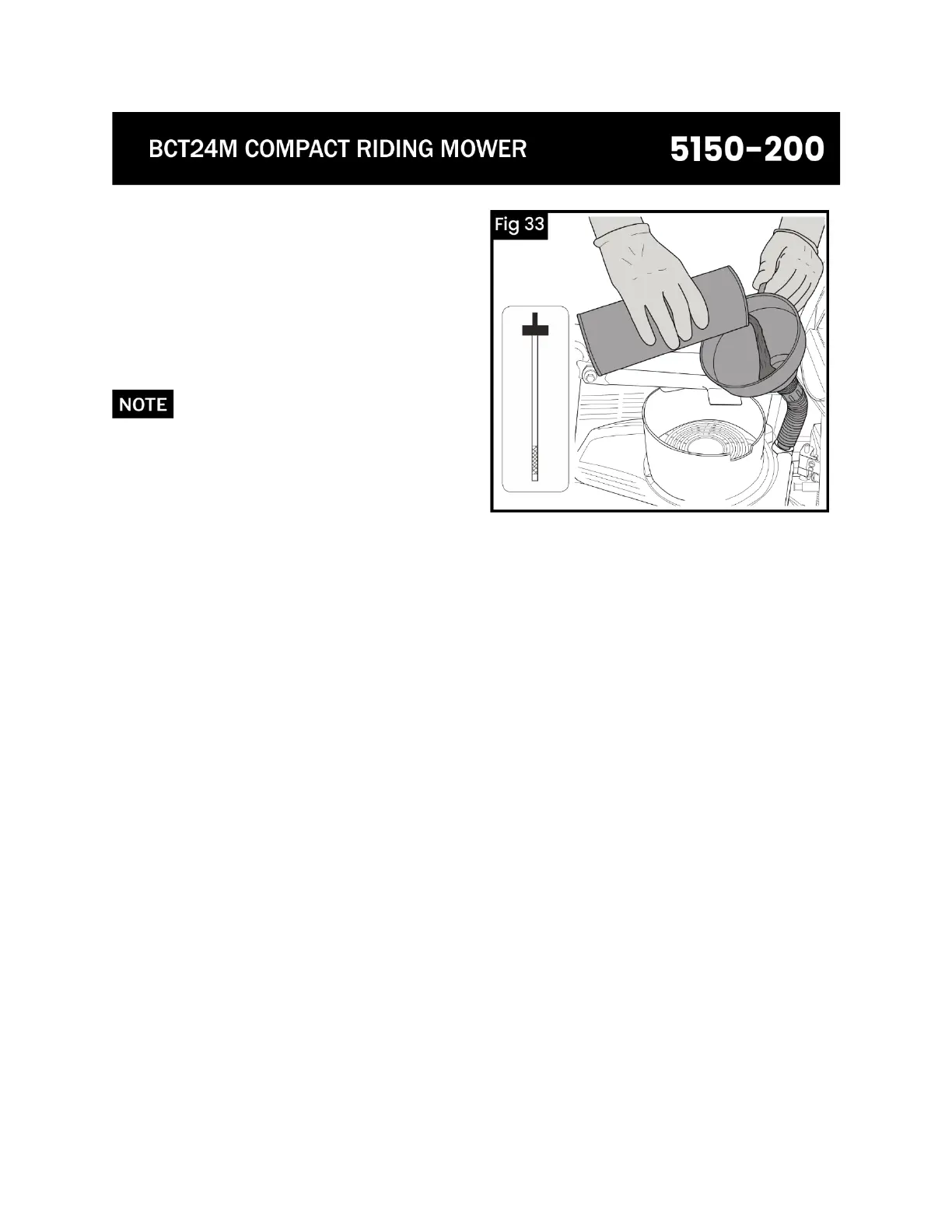

3. Use a funnel to fill up (Fig 33).
4. The oil level must be between the MIN
and MAX notches of the dipstick (see
Fig 33).
Do not exceed the maximum level.
5. Screw the oil cap back on.
CONTROLS AND CONTROL INSTRUMENTS
STEERING WHEEL (Fig 4 Part 9)
Directly steers the front wheels.
BREAK / CLUTCH PEDAL (Part 11)
This pedal has a dual function: BREAK / CLUTCH
▪ BRAKE:
With the machine moving:
1. Press the pedal to quickly slow down or stop the machine. The brake operates on
the rear wheels.
▪ PARKING BRAKE:
With machines stopped:
1. Keep the pedal pressed.
2. Lift the parking brake lever and keep lifted.
3. Release the pedal.
This way the rear wheels remain braked.
To release the parking brake, fully press the pedal (the parking brake level lever is
automatically released and returns to down position).
