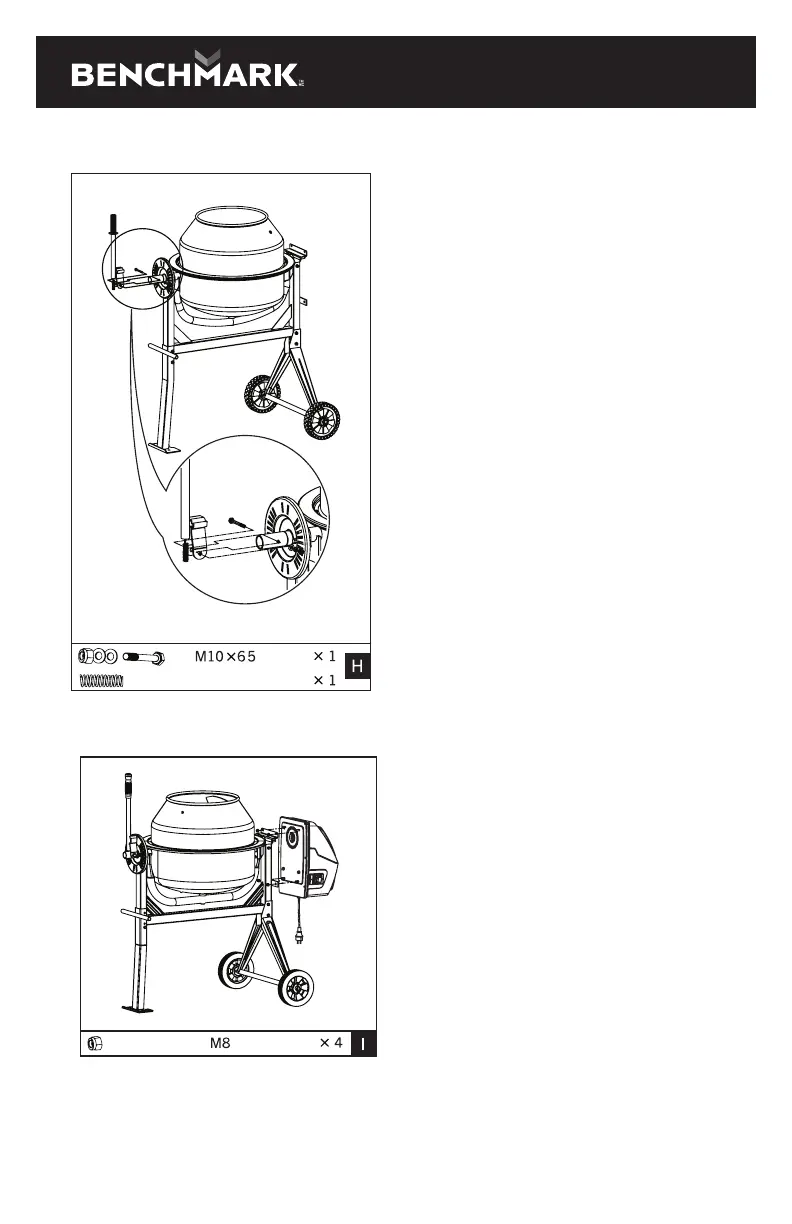

THE TIPPING BAR CONT.
2. Insert the spring into the bar pipe.
Holding it in place with a finger, place
the bar over the larger diameter shaft
so that the shaft retains the spring.
Press down on bar until the holes in the
bracket line up with the hole drilled.
Insert a M10X65 hex bolt and screw
on a nut with flat washers from the
other side. Screw the nut up against the
bracket firmly, but not so tightly so as
to prevent the bar from pivoting about
the bolt.
THE TRANSMISSION CASE
Lining up the keyways, slide the
transmission case over the pinion shaft.
Secure the case to the frame with four
M8 lock nuts.
