11
STEP 9
( Routing Airline )

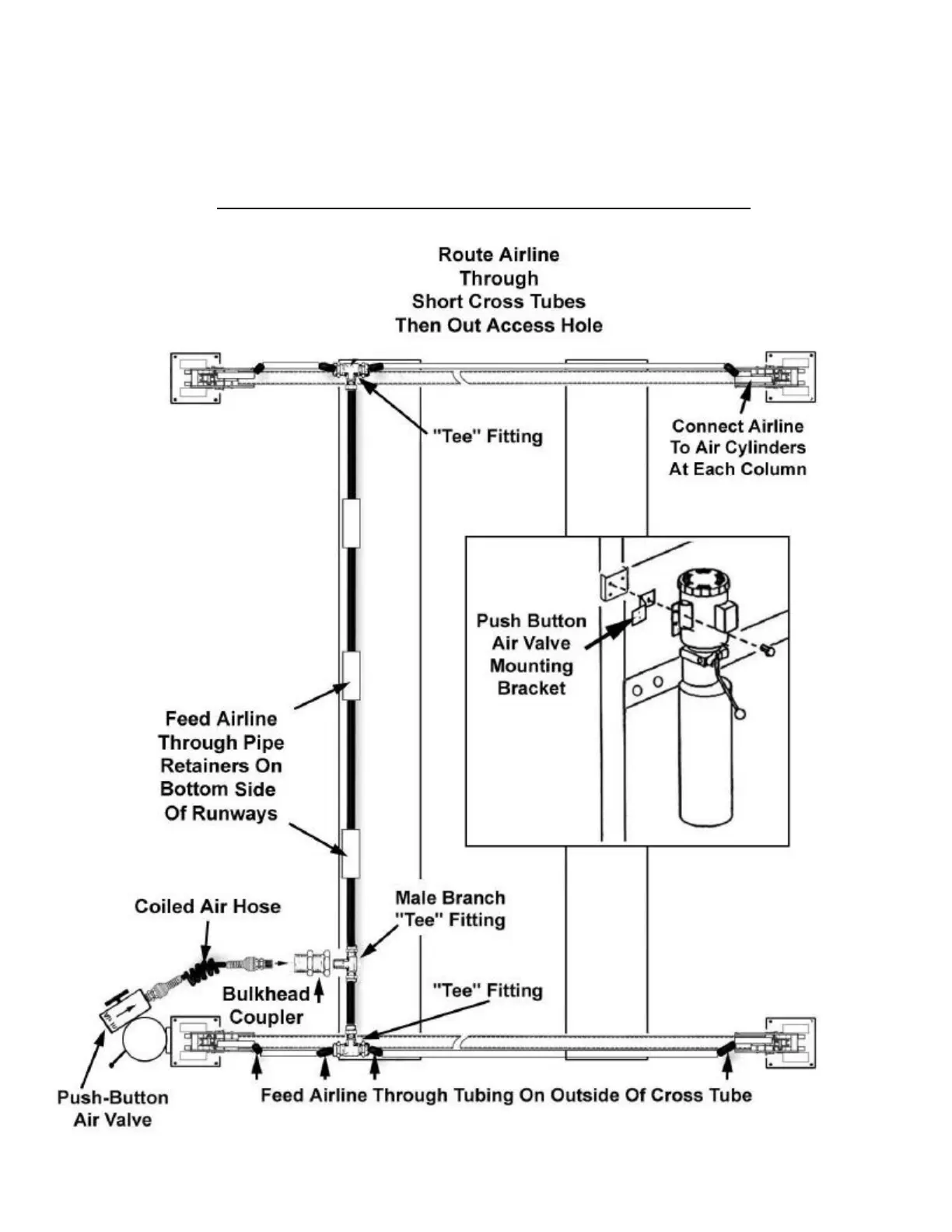

Route the airline as shown below making sure to position the push button air valve with the INLET
facing towards the AIR SOURCE and the OUTLET facing the direction of the COILED AIR HOSE.
Pay careful attention to keep airline clear of any pinch points. Improper assembly may result in
safety lock failure. AIR PRESSURE SHOULD BE REGULATED TO 125 PSI MAX. ( See Fig. 13 )
Fig. 13
