Brake pad wear limit: replace the brake pads before the friction material has been worn down to less than 2.5 mm.

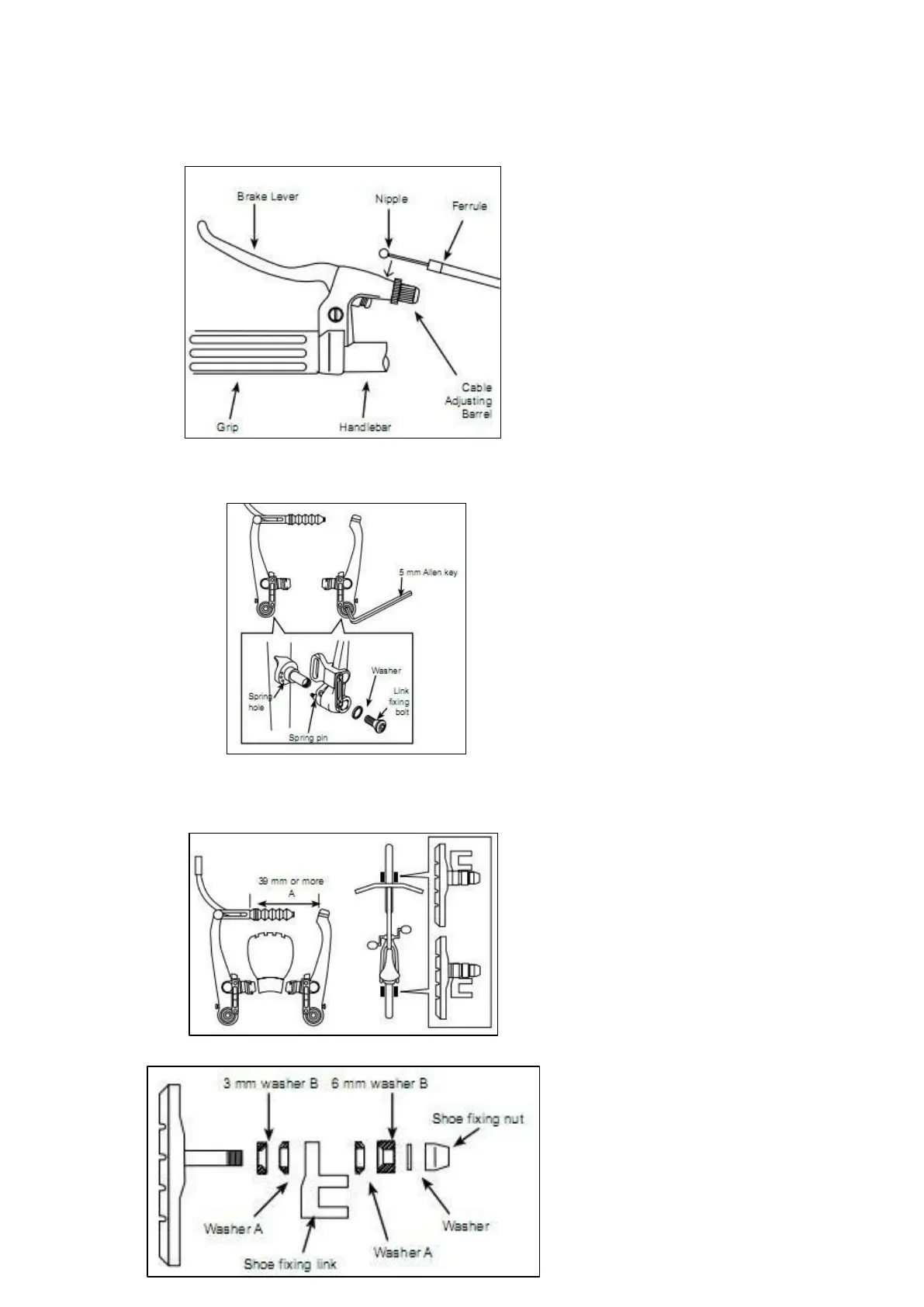

1.Open the brake lever and place the nipple end of the short brake cable into the lever, then close the lever. Secure
the ferrule against the lever using the cable adjusting barrel.
2.If fitted with V-Brakes, insert the brake body into the center spring hole in the frame mounting boss, and then
secure the brake body to the frame with the link fixing bolt.
3. While holding the shoe against the rim, adjust the amount of shoe protrusion by interchanging the position of the
B washers (i.e. 6 mm and 3 mm) so that dimension A is kept at 39 mm or more.
