alance with the spring tension adjustment scre

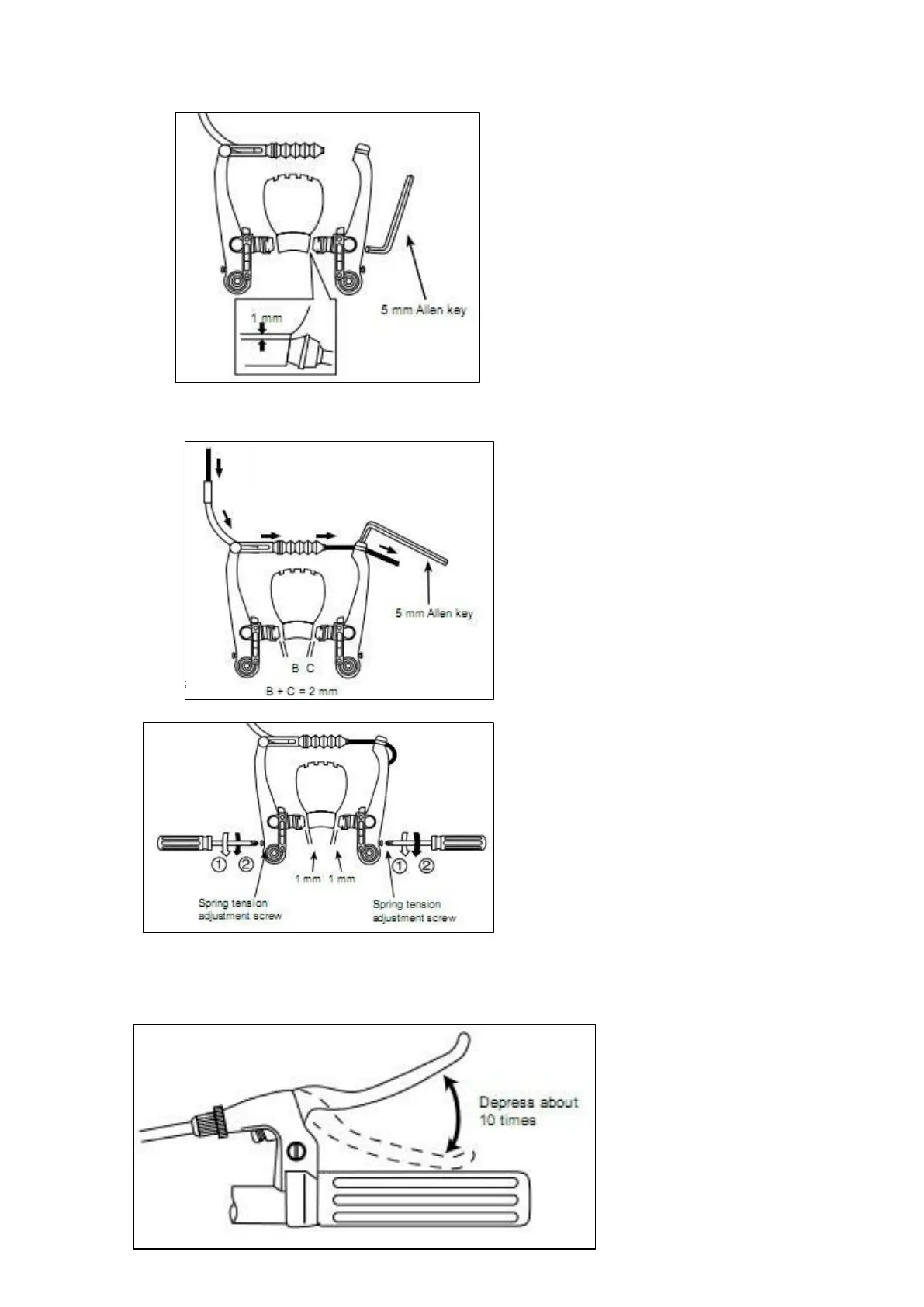

4.While holding the shoe against the rim, tighten the shoe fixing nut.
5. Pass the inner cable through the inner cable lead. Set the cable with a clearance of 1mm between each brake pad
and the rim, tighten the cable fixing bolt.
6. Adjust the b ws.
7. Depress the brake lever about 10 times as far as the grip to check that everything is operating correctly and that the shoe
clearance is correct before riding the bike.
