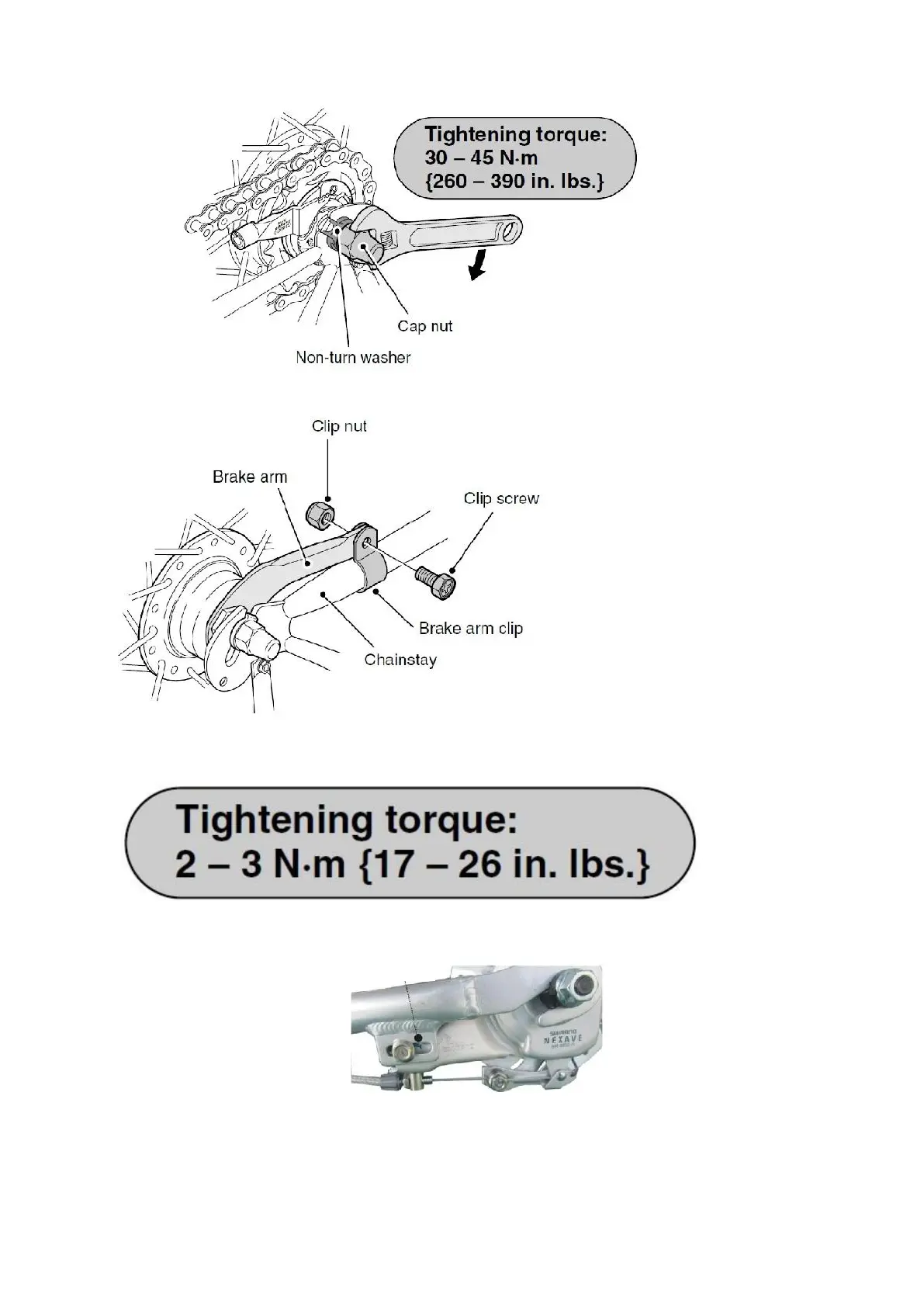

4.3. Take up the slack in the chain and secure the wheel to the frame with the cap nuts.
4.4 Fix the brake arm securely to the chain stay with the brake arm clip.
Note:
When installing the brake arm clip, securely tighten the clip screw while holding the clip nut with a 10 mm spanner.
After installing the brake arm clip, check that the clip screw protrudes about 2 – 3 mm from the surface of the clip nut.
Brake Arm Seat on Back
Fork of the Vehicle Frame
4.5 Before using the Coaster Brake, check that the brake works properly and that the wheel turns smoothly a
