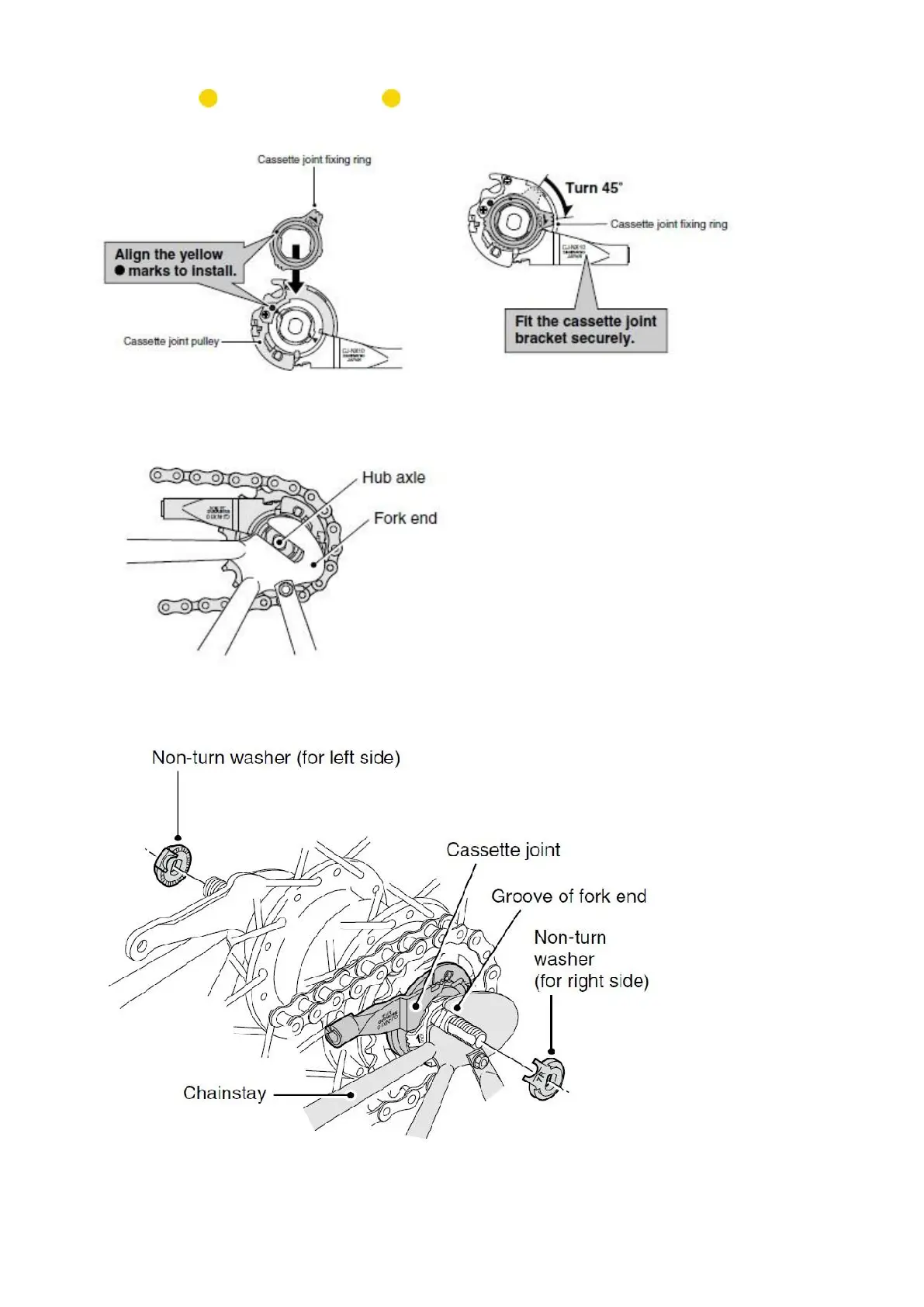

3. Secure the cassette joint to the hub with the cassette joint fixing ring. When installing the cassette joint fixing ring, align
the yellow mark “ ” with the yellow mark “ ” on the cassette joint pulley.
After installing the cassette joint fixing ring, turn it 45 clockwise.
4. Installation of the hub to the frame
4.1 Mount the chain on the sprocket, and then set the hub axle into the fork ends.
4.2 Place the non-turn washers onto the right side and left side of the hub axle. At this time, turn the cassette joint so that
the projecting parts of the non-turn washers fit into the grooves of the fork ends. If this is done, the cassette joint can be
installed so that it is almost parallel to the chain stay.
