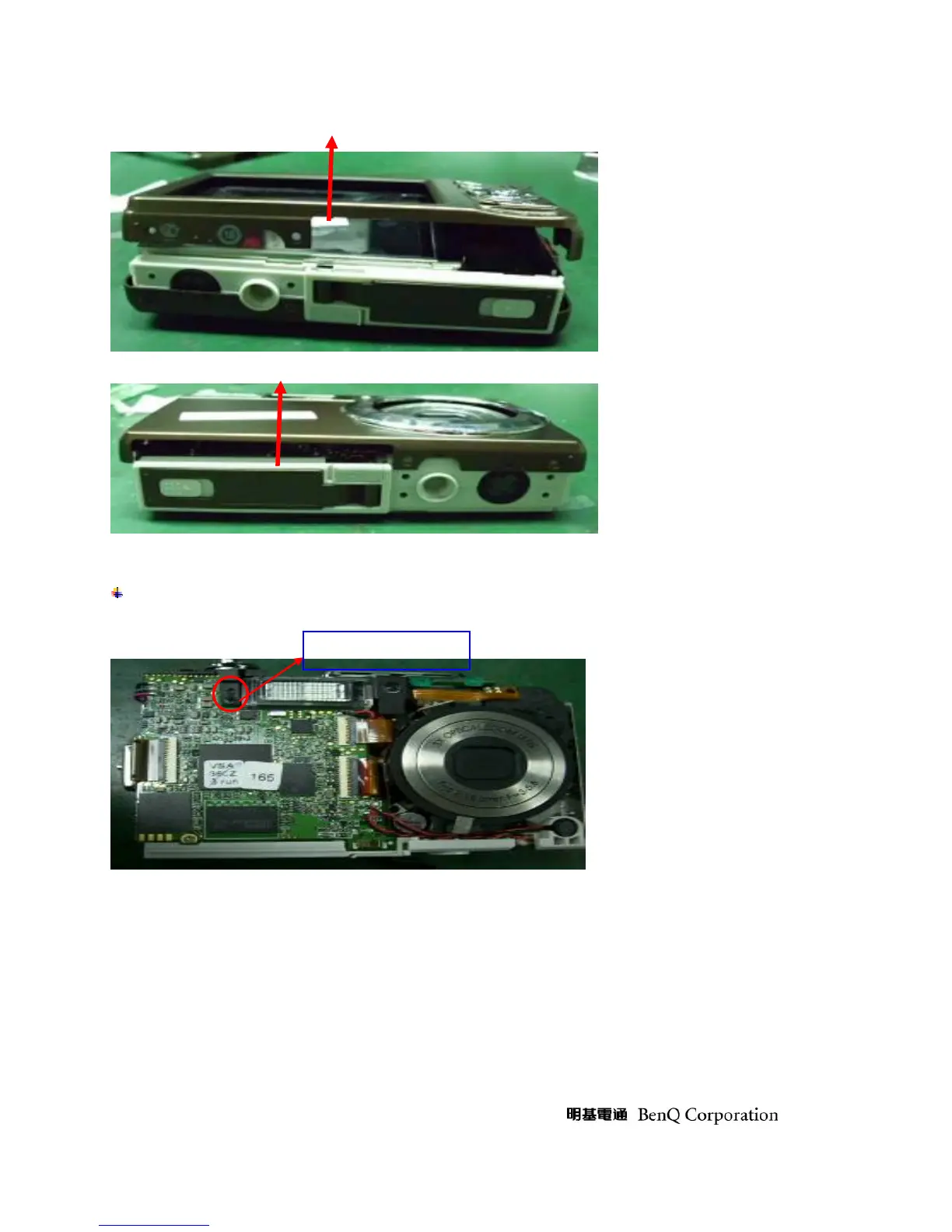

B. Disassemble strobe board, UI board and main board.
Disassemble strobe board. (Remark: Discharge the strobe board first.)
¾ Unscrew the screws Æremove the mylarÆdischarge the strobe board.
Unscrew the screws
