5. The LED will flash and update FW. Once it finished, the camera will be power off automatically.
C. F/W update (replace M/B)

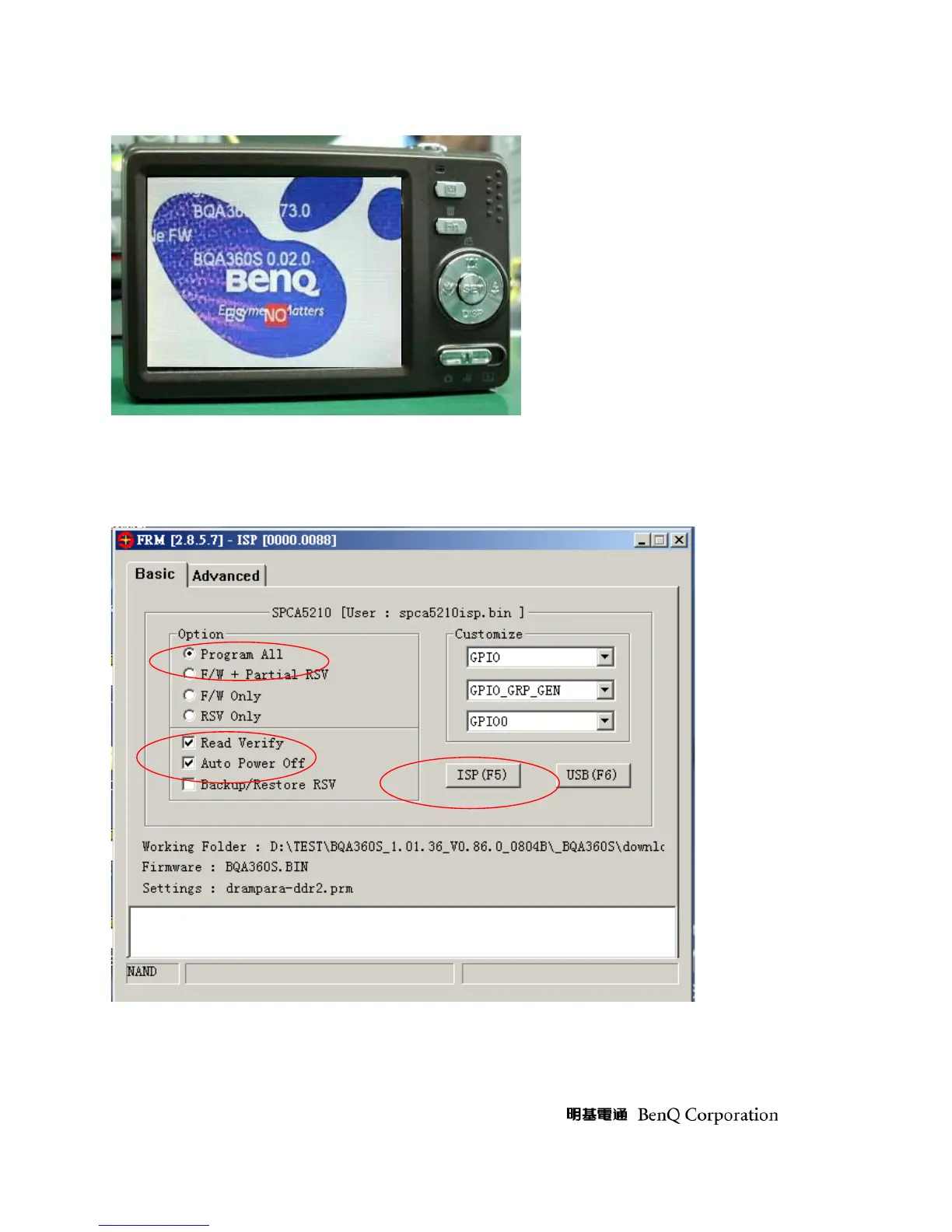

1. Start the F/W testing program FRM and check the following setting is correct or not (Fig 1).
Fig 1.
2. Ensure the cosmetic of camera is clean and without any scratch.
3. Insert the special cable (F/W programming cable—YELLOW COLOR) into the camera and PC
separately and make sure the current is less than 0.01A.
4. Press “Power” button of camera (Fig. 2) to power on and press “ISP” button to update F/W.
5. Press “OK” button (Fig. 3) when the dialogue box showed “ISP Finished”.
