BenQ DC E1030 - Flash WB Calibration

- -
(B) Flash WB Calibration

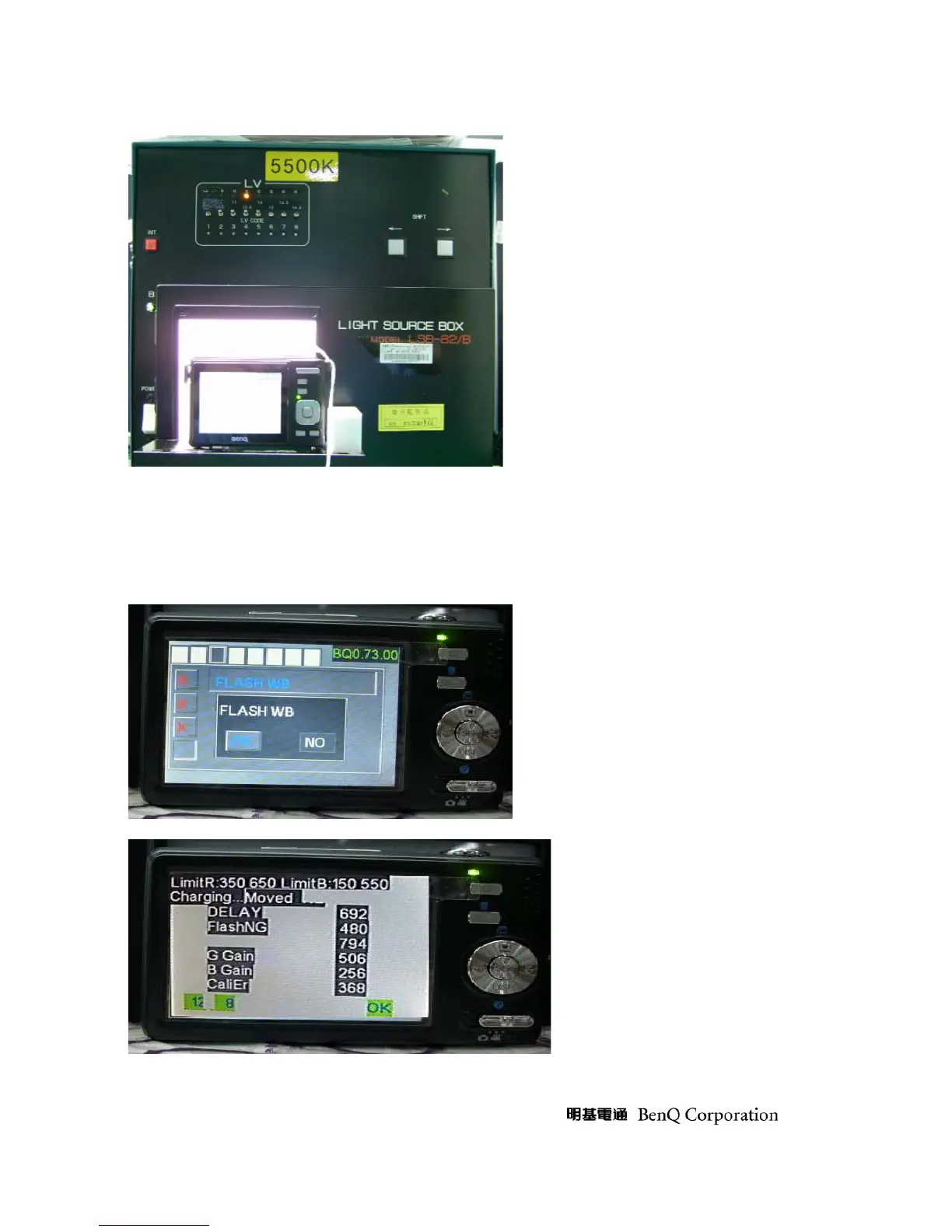

1. Put the camera on the fixture and press “Power+Tele+Set+Playback” to access the test mode
2. The on screen display shows “Flash WB” message (Fig. 11). Shoot the subject which is in low-light
environment.
3. Tap “OK” button and press “Set” button, the test program will execute automatically.
4. The on screen display shows “OK (Fig. 12) once the test is passed. If it shows “NG”, it means the test was
failed.
Fig. 11
Fig. 12
