BenQ DC GH600 - Level 2 Disassembly; Assembly

11
Level 2 Disassembly / Assembly Flow & Calibration Procedure
Disassembly /Assembly
Disassembly SOP
Caution:
1. Prevent cosmetic issue, please clean the table when disassembly.
2. Wear anti-static bracelet for ESD.
A. Disassemble Front/Rear Cover

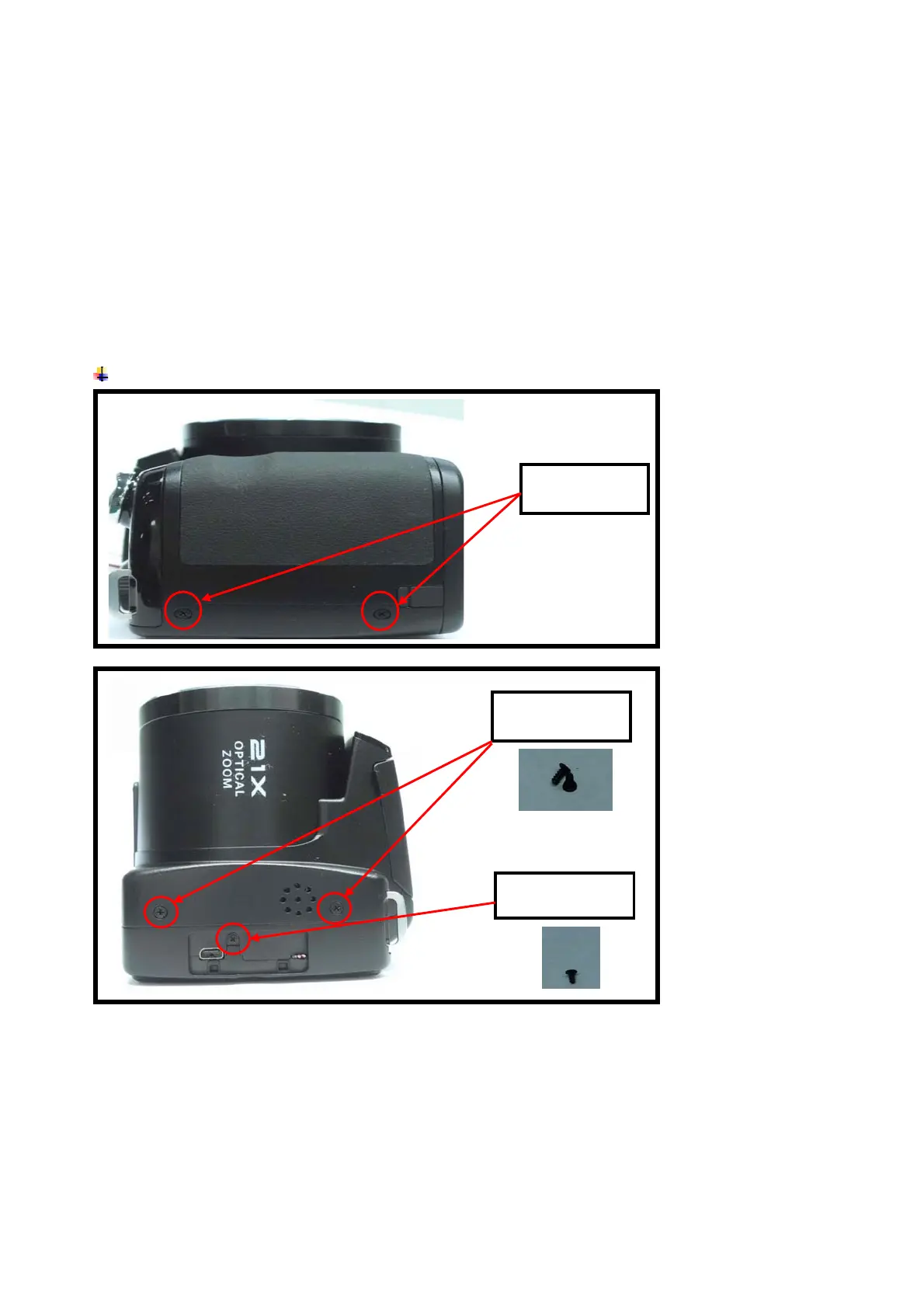

Remove 14 screws from exterior covers.
MACHINE
SCREW 1.7X4
MACHINE
SCREW 1.7X4
MACHINE
SCREW
1.
4
X
2.5
