D. Disassemble Top cover and Main board

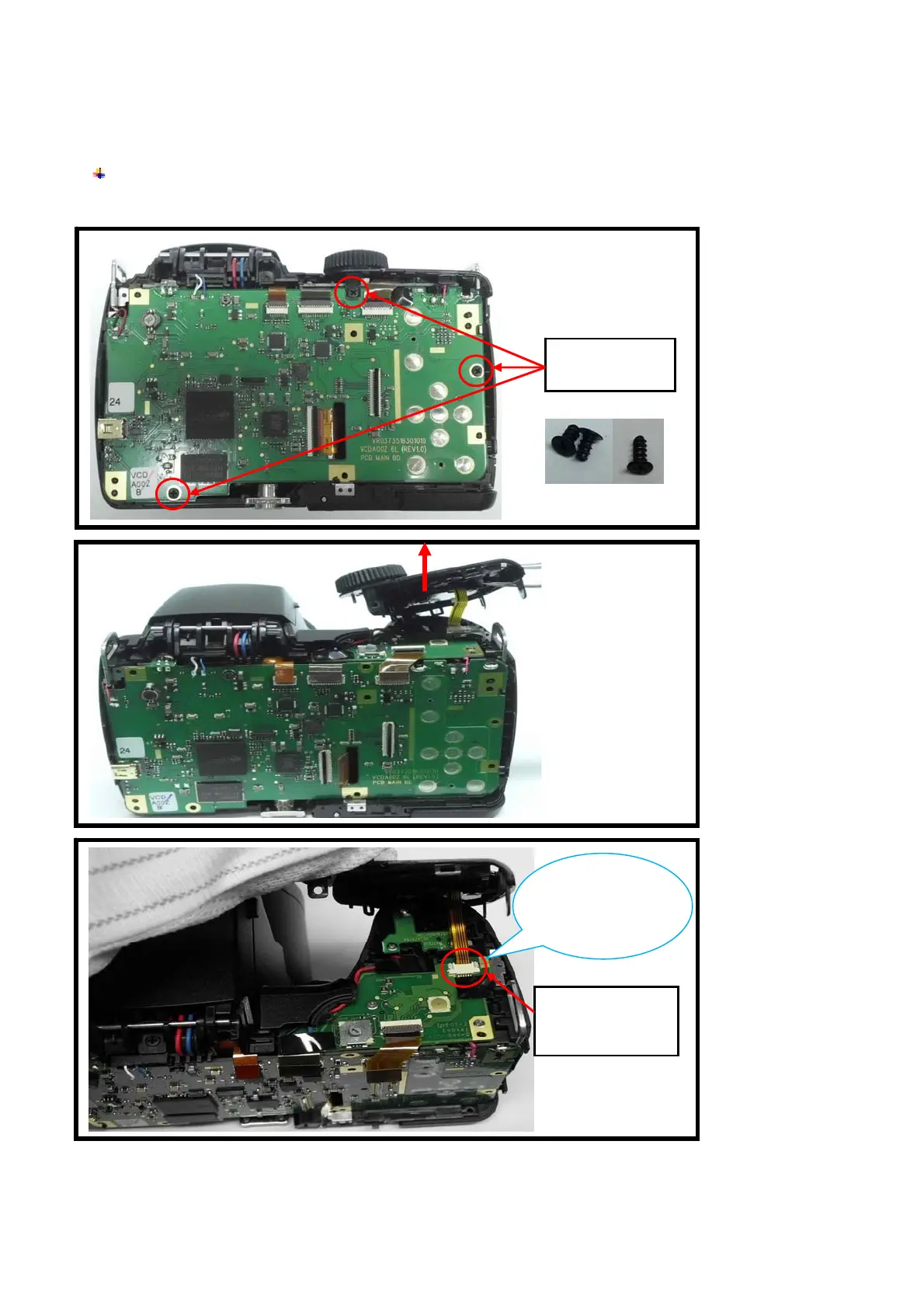

Unfasten 3 screws of M/BD  Take off Top cover  Open “Anti-shake”, “Lens”, “Strobe/BD”,”CCD/BD” FPC
socket  Remove welds for ”Flash detect line”, “microphone line”, “speaker line”, “AF lamp line” and “battery
spring” Take off M/B
MACHINE
SCREW1.7X3
Open shutter FPC
socket then take
off Top cover
FPC socket is
easy to break
down. Be careful
to
ope
n i
t
