BenQ DC GH600 - Flash WB & USB Mode Calibration

51
1. Voltage setting: 4.0+/-0.1V
2. Light source box brightness: K=1.3 LV=10.0±0.1(Color temperature：5500K) &
LV=13.0±0.1& LV=14.0±0.1), LV value is based on the BM3000 measurement data.
3. Brightness: Center: 250±30CD/M2 ; Peripheral : 300±30CD/M2.
(B) Flash WB Calibration
1. Press “Playback + Tele + Set(OK)” to access the test mode.

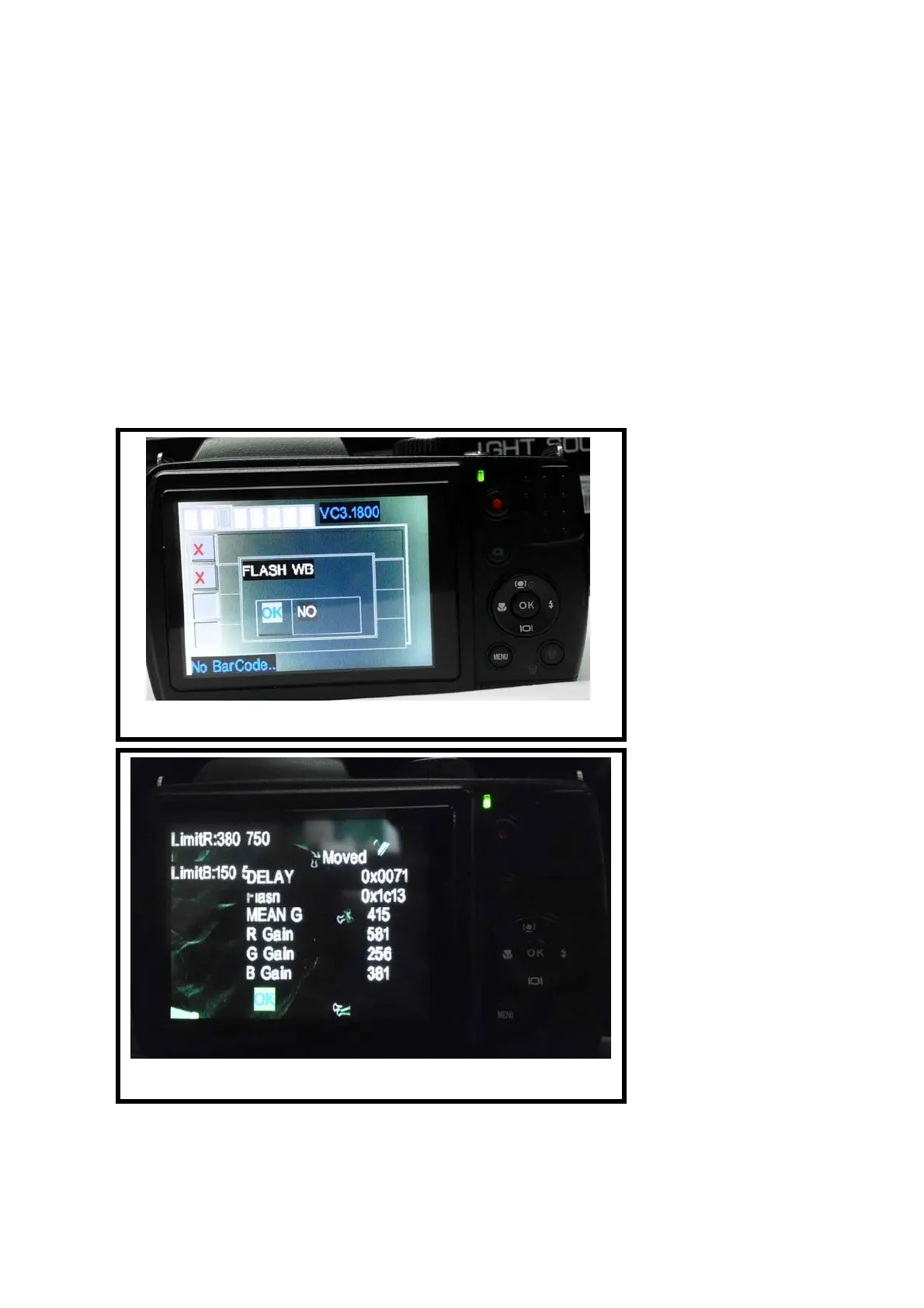

2. The LCD shows “Flash WB” message (Fig. 11). Shoot the subject which is in low-brightness
environment.
3. Press ”OK/Set” button to run auto calibration. When LCD shows ”OK” (Fig. 12), it has passed the test.
If show “NG”, it means have not passed.
Fig. 11
Fig. 12
