9 How to assemble your monitor hardware
How to assemble your monitor hardware
• If your model came with a height adjustment stand (HAS), refer to Appendix: Assembling your monitor with a
height adjustment stand (HAS) on page 41 for details on hardware installation.
• If the computer is turned on you must turn it off before continuing.
Do not plug-in or turn-on the power to the monitor until instructed to do so.
• The following illustrations are for your reference only. Available input and output jacks may vary depending on
the purchased model.

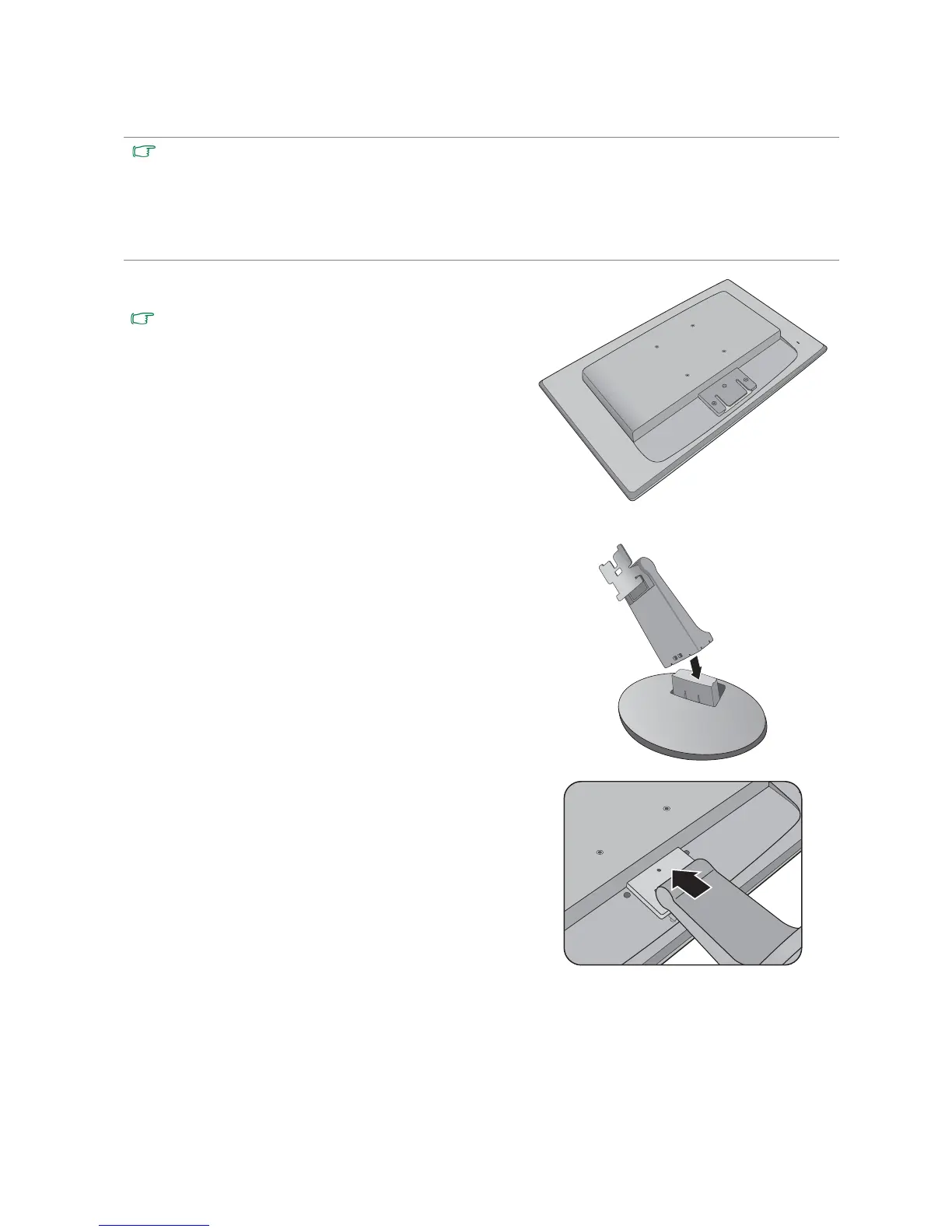

1. Attach the monitor base.
Please be careful to prevent damage to the monitor. Placing
the screen surface on an object like a stapler or a mouse will
crack the glass or damage the LCD substrate voiding your
warranty. Sliding or scraping the monitor around on your
desk will scratch or damage the monitor surround and
controls.
Protect the monitor and screen by clearing a flat open
area on your desk and placing a soft item like the
monitor packaging bag on the desk for padding.
Gently lay the screen face down on a flat clean padded
surface.
Attach the monitor stand to the monitor base as
illustrated until it locks in place.
Gently attempt to pull them back apart to check that
they have properly engaged.
Orient and align the stand arm with the monitor, then
push them together until they click and lock into place.
