BenQ LX60ST - Page 2

Screen Size
Distance from screen (inch) Vertical offset (inch)
Diagonal W
inch
H
inch
Inch mm
80 2032 64 48 38.89 7.2
100 2540 80 60 48.62 9.01
120 3048 96 72 58.3 10.78
150 3810 120 90 72.91 13.5
180 4572 144 108 87.48 16.18
200 5080 160 120 97.20 17.99
220 5588 176 132 106.92 19.8
240 6096 192 144 116.65 21.61
270 6858 216 162 131.22 24.29
300 7620 240 180 145.8 27.0
11.73”
5.89” 4.61” (Excludes Adjustment footer)
15.5”

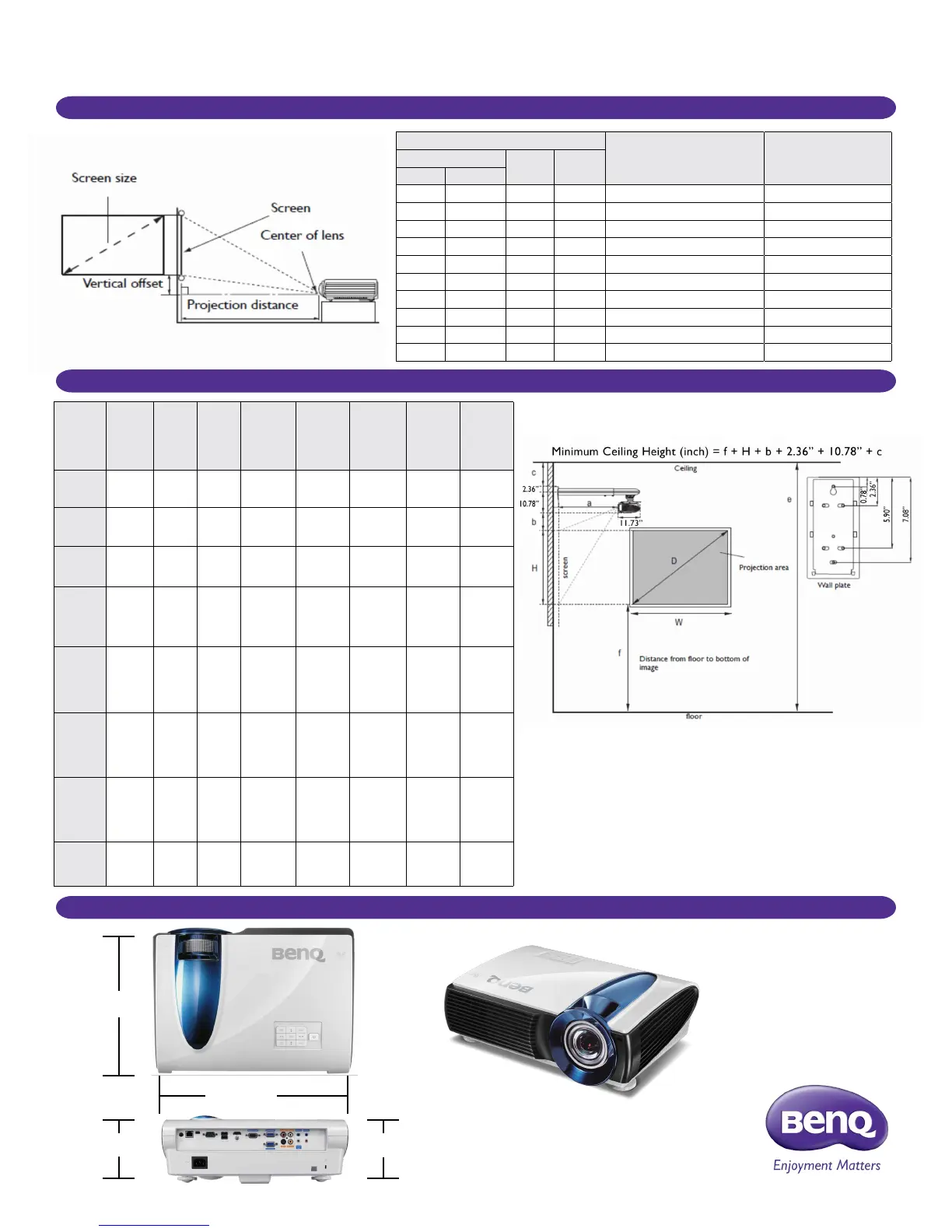

Distance Chart
Wall Mount / Ceiling Mount Chart
Dimensions
LX60ST Digital Projector
Computer
Resolution:
XGA
Resolution:
XGA
Diagram
Reference
SMART
Board
660
SMART
Board
680
Promethean
ActivBoard
164
Promethean
ActivBoard
178
RM
ClassBoard2
77.5
Hitachi
StarBoard
FX-63
StarBoard
FX-77
Diagonal
(inch)
D 2.51 3.03 2.51 3.07 3.05 2.48 3.03
Height
(inch)
H 38.38 46.18 38.38 46.81 74.05 37.79 46.18
Width
(inch)
W 51.18 61.61 51.18 62.40 62.0 50.39 61.61
Distance
from oor
to bottom
of image
(inch)
f 35.43 35.43 35.43 35.43 35.43 35.43 35.43
Distance
from screen
surface to
projector
lens
a 31.1 37.4 31.10 37.91 37.67 30.62 37.4
Distance
from top
case to the
top of image
(inch)
b 3.09 4.27 3.09 4.35 4.31 3.01 4.27
Distance
from top of
wall mount
to ceiling
(inch)
c 1.96 1.96 1.96 1.96 1.96 1.96 1.96
Minimum
Ceiling
Height
(inch)
e 92.03 101.0 92.03 101.71 128.92 91.36 101.0
