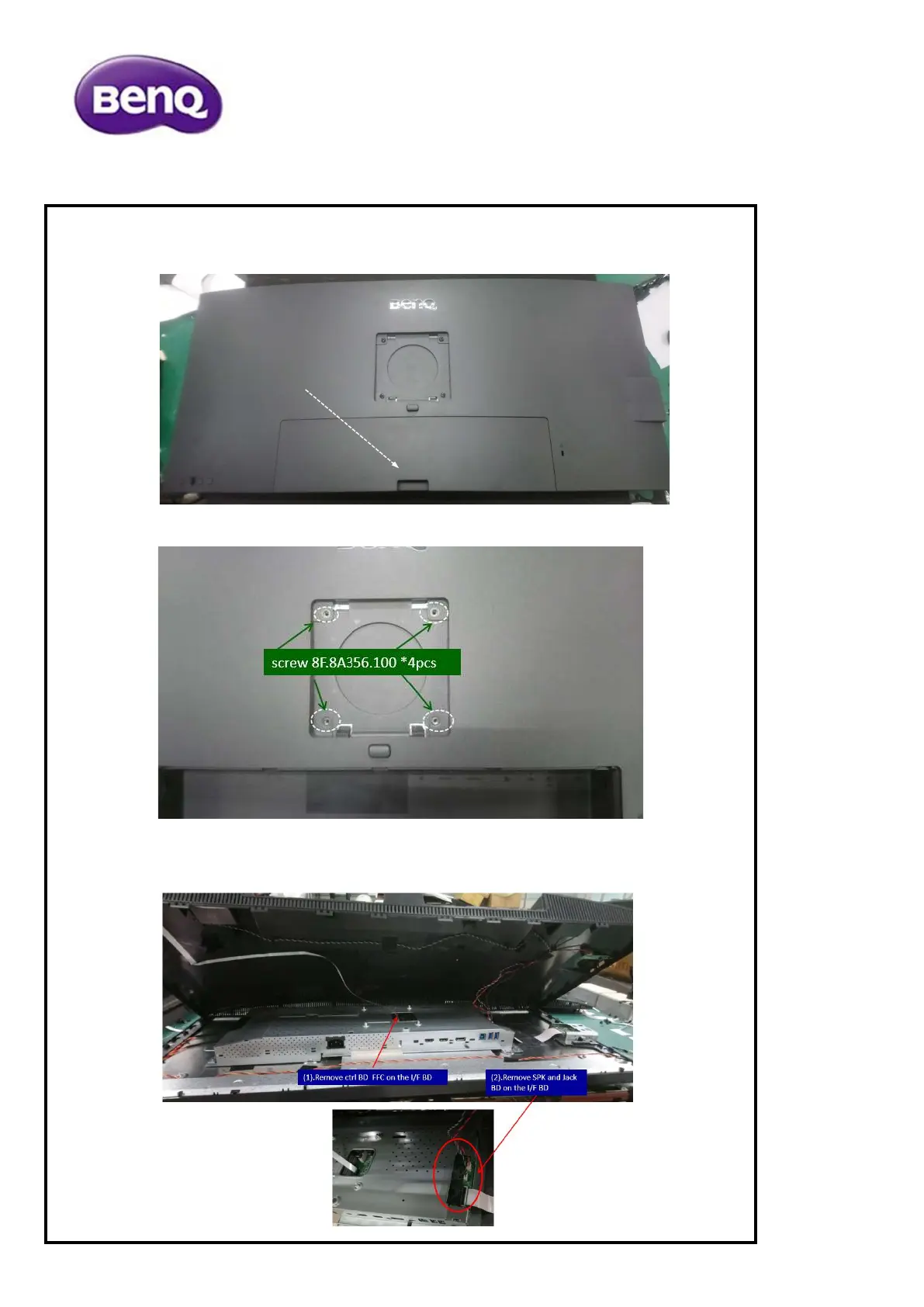

2. Remove ASSY Rear Cover
2.1 Remove IO cover by hand.
2.2 Remove screw to release Rear Cover.
2.3 Remove ctrl BD and IF BD FFC. Remove SPK and Jack BD wire on the I/F
BD.
