L
TsB ETBCTRTcAL
Sysrnu.
IOI
Place
the replacement
bulb in
the holder,
engage
the
projections
in
the
inside of the back
shell
with
the
slots in the
holdei,
press
on
and
secure
by twisting it to the right.
Position
the Light
Unit
in the
lamp
body
so
that
the
heads
of the
vertical
and horizontal
adjusting
screws
protrude
through
the
holes
in
the
flange;
press
in
and twist in
a
clockwise
direction.

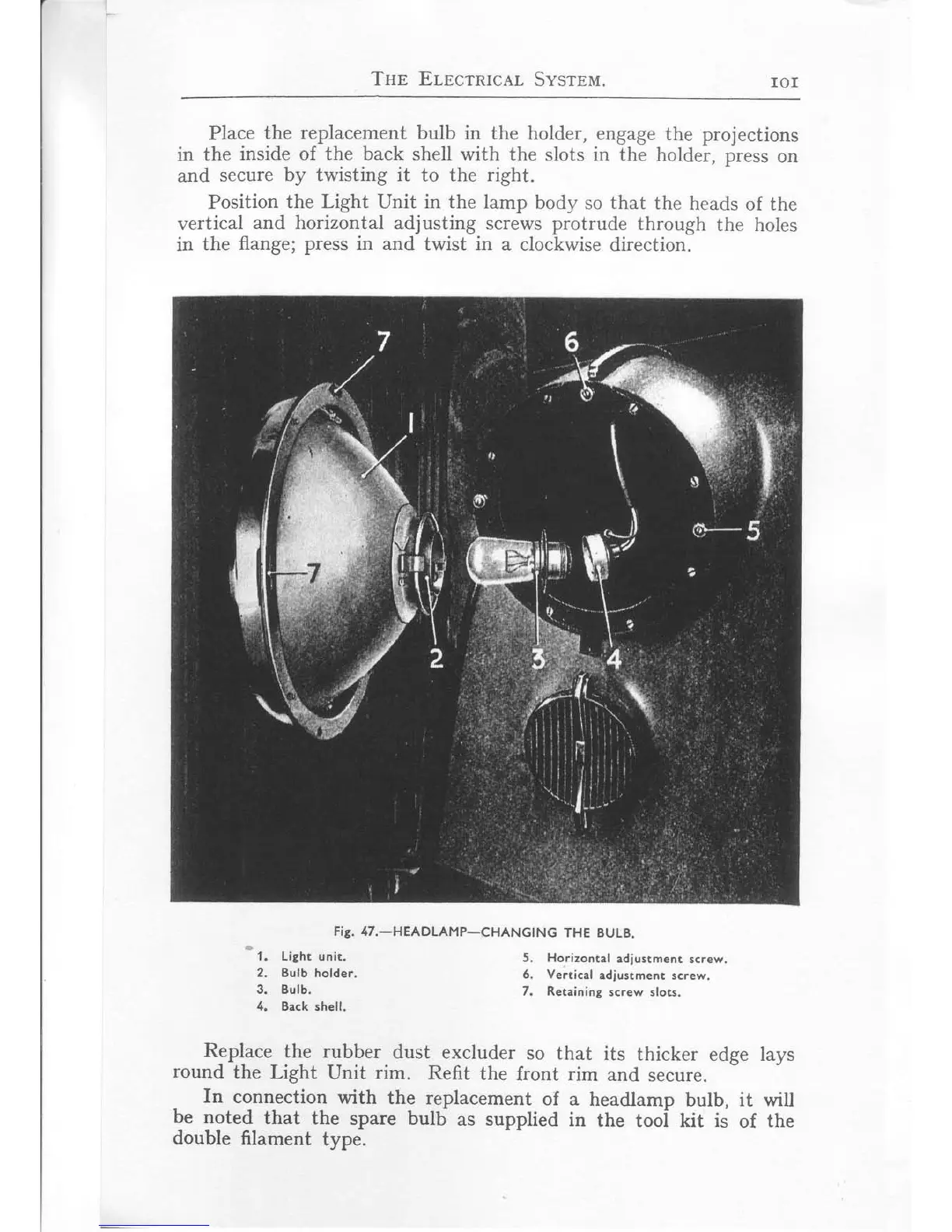

Fig. 47.-HEADLAMP-CHANGING
THE BULB.
5.
6.
7.
1.
2.
3.
4.
Light
unit.
Bulb
holder.
Bulb.
Back shell.
Horizontal
adjustment
screw.
Vertical
adjustment
screw.
Retaining
screw slots.
Rgplace_
the rubber
dust
excluder
so that
its thicker
edge
lays
round
the
Light
unit
rim.
Refit
the
front
rim
and
secure.
In
connection
with
the replacement
of a
headlamp
bulb, it
wiu
be
noted
that
the
spare bulb
as
supplied
in
the
tooi kit is
of
the
double
filament
type.
