CHAPTER
III
Centralised
Chassis
Lubrication
General
-
Foot-operated
OiI Pumf
-
Drip
Plugs.
General.
A
foot-operated
pump,
with
which. is
combined
an
oil reservoir,
is located
on the
front
of the
dashboard, and
supplies
oil under
pressure
for
chassis lubrication.

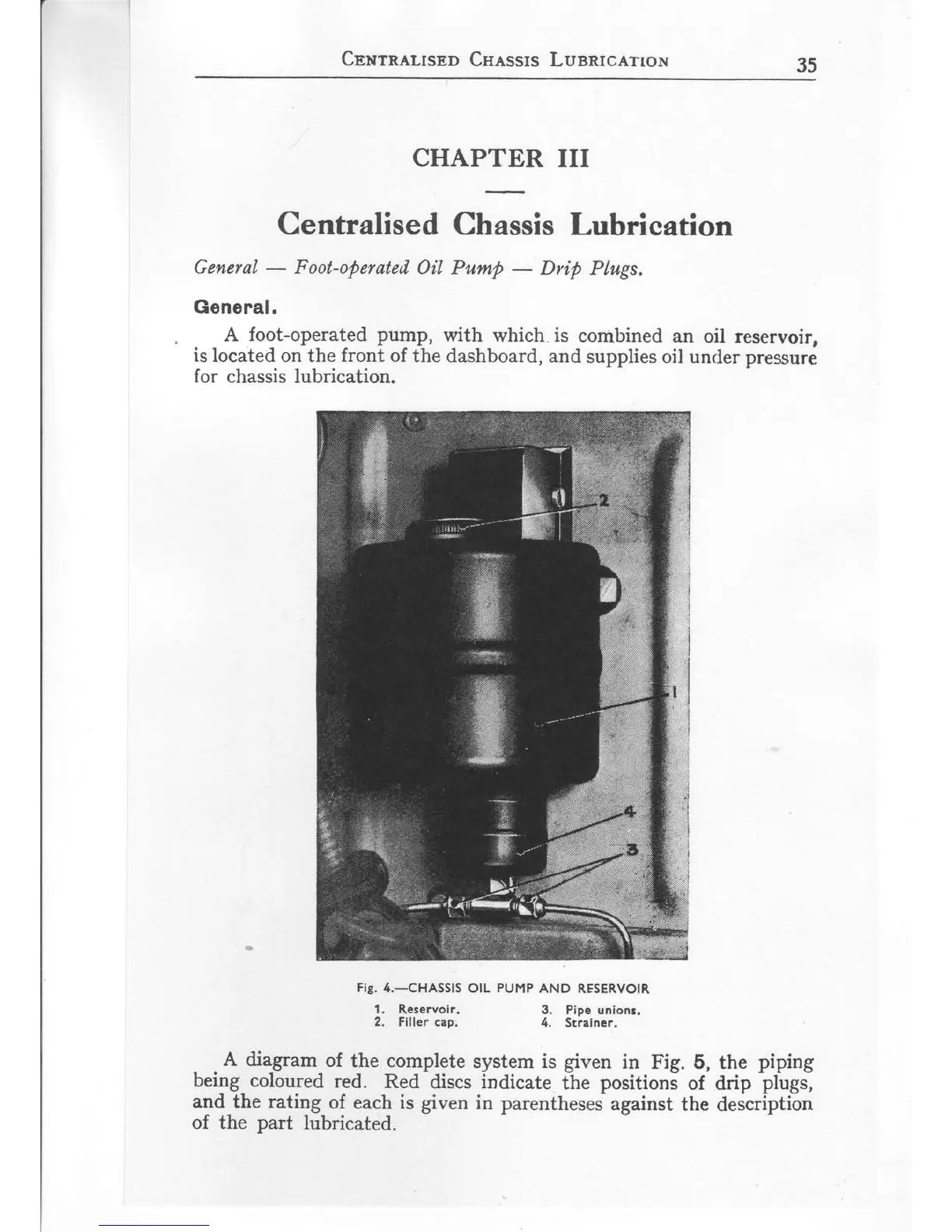

Fig.
4.-CHASSIS
OIL
PUMP
AND
RESERVOIR
l'.
F,itTl?',I;
A
diagram
of
the
complete
being
coloured
red.
Red
discs
and the rating
of
each is
given
of the
part
lubricated.
3. Pipe unions.
4,
Strainer.
system
is given
in Fig. 5,
indicate
the
positions
of
in parentheses
against
the
the
piping
drip
plugs,
description
