76
TrtB
'R'
TvpB
BBttrrnY.
(b) unavoidable
irregularities
in
the
outer cover,
due to
movement
of
the
material during
vulcanizing.
A coloured
spot
on
the
outer
wall
indicates
its lightest
part, and
the
cover
should
be
fitted so that
this spot
is
at
the
valve
position.
To
correct
such out-of-balance,
four
steel weights
are
spaced
at
intervals
around
the wheel
as necessary.
'
The
method of balancing
the
wheel
is
as
follows:-
(i)
Remove the
wheel.

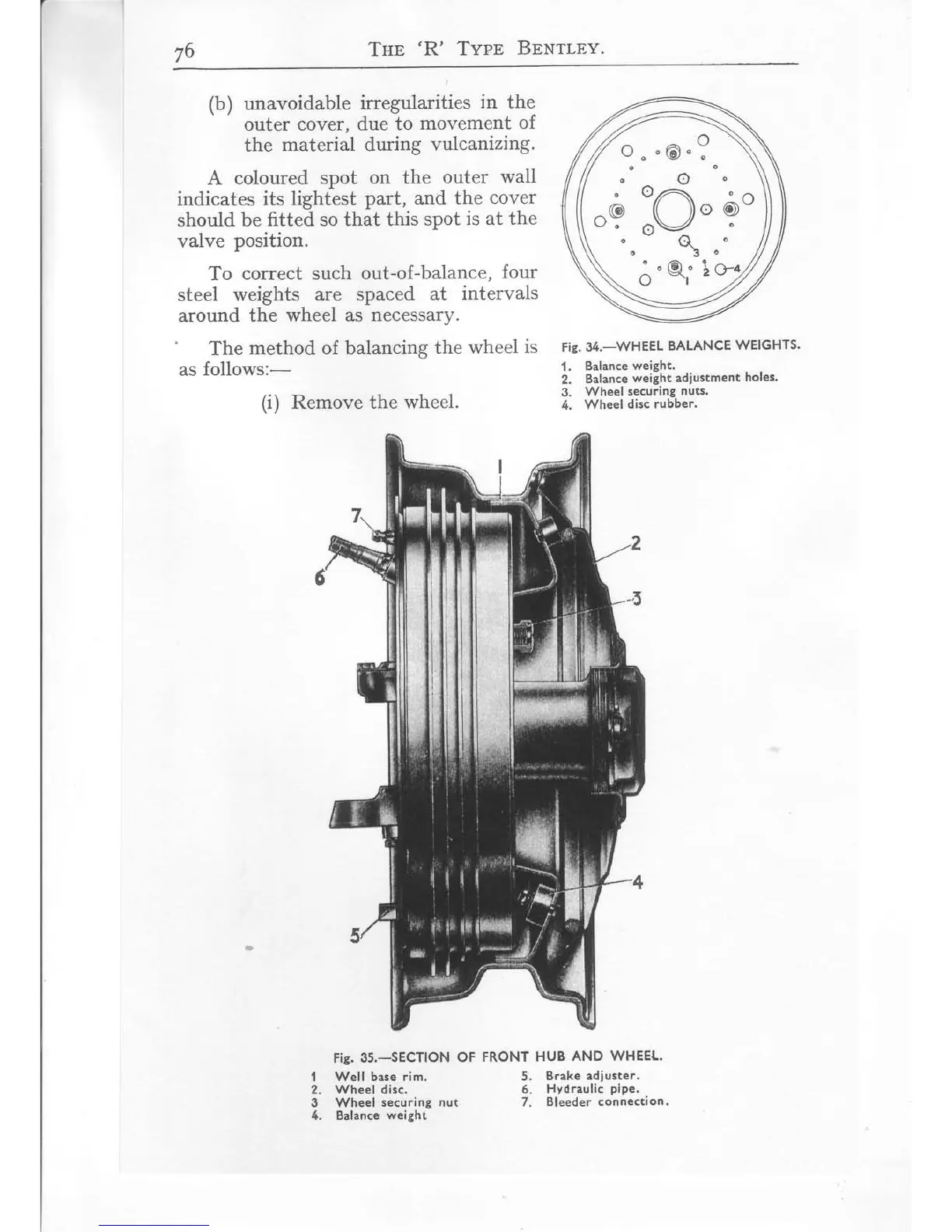

Fig.
34.-WHEEL
BALANCE
WEIGHTS.
1.
Balance
weight.
2.
Balance
weight
adiustment
holes.
3.
Wheel
securing
nuts.
4.
Wheel
disc
rubber.
1
2.
3
4.
Fie.
35.-SECTION
OF
Well base
rim.
Wheel disc.
Wheel
securing
nut
Balance
weight
FRONT
HUB
AND
WHEEI.
5.
Brake
adiuster.
6.
Hvdraulic
pipe.
7. Bleeder
connection'
