Handlebar
height
Saddle
height
Saddle
position
Brake
levers
Suspension
fork
ü ü

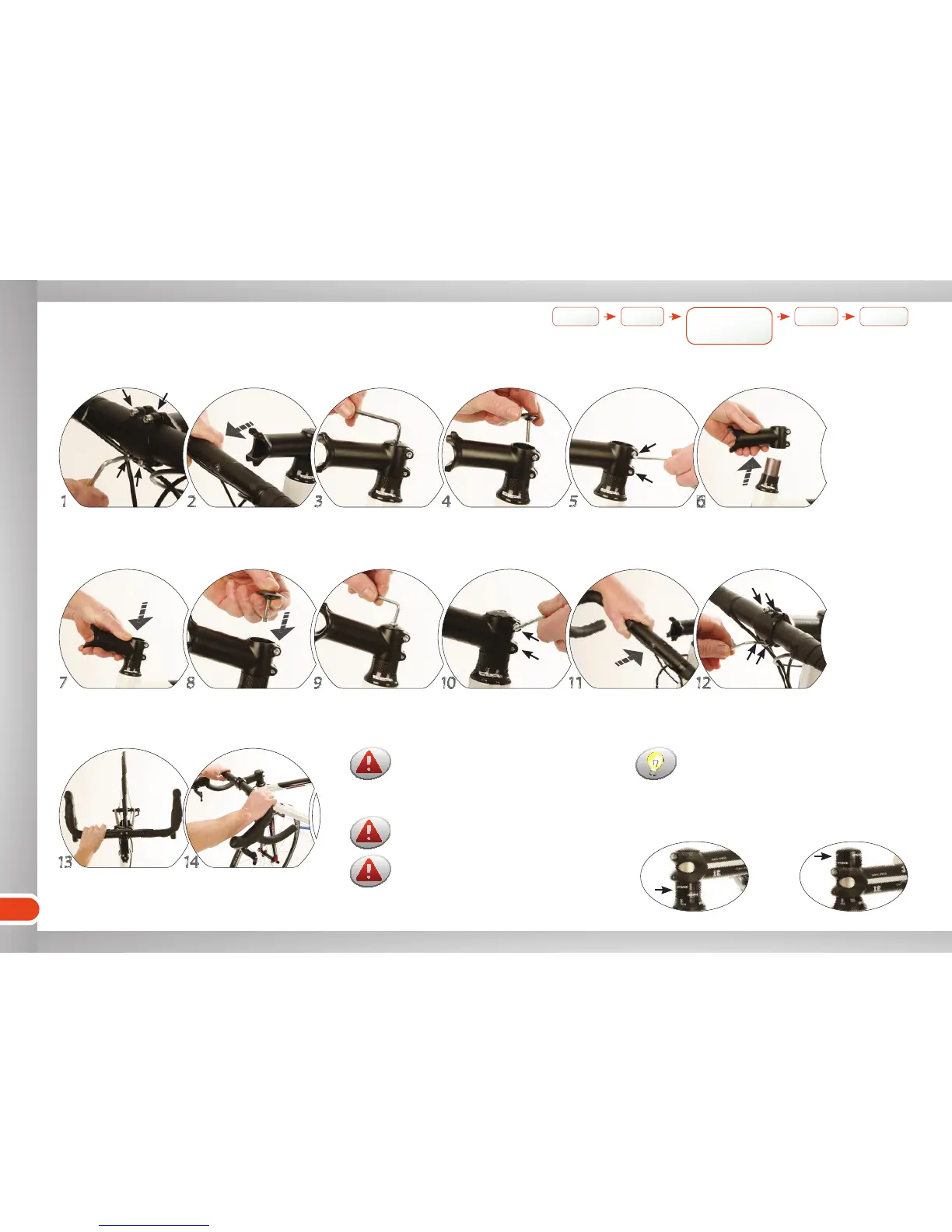

Handlebar height
Loosen the 4 bolts of
the stem clamp cap
Remove the clamp cap
(hold the handlebar to
prevent falling and set
it down)
Loosen the bolt Remove the cap Release both bolts
Pull the stem off the
fork
Replace the cap on to
the stem clamp
Reposition the stem in
upside-down position
Centre and reposition
the handle-bar
Check that it is tight
(try twisting the
handlebars)
Tighten both side bolts
Check the alignment of
the handlebar
Carefully tighten the
top bolt until the play
is gone, but steering is
still possible
Tighten all 4 bolts of
the cap
Spacers beneath Spacers above
Turning stem upside-down
If the brake and shift cables are now
too short, ask your dealer for help.
Do not tighten the handlebar bolts
excessively (steps 10 and 12), as the
material could get damaged. Maximum
torque is written on the stem.
Changing the handlebar height by
cutting the fork tube is complex and
irreversible, and must be done by an
expert.
You can also change the height by
removing spacers and placing them
either above or below the stem.
(Useful when you need to test the
optimum position before cutting the
fork tube.)
