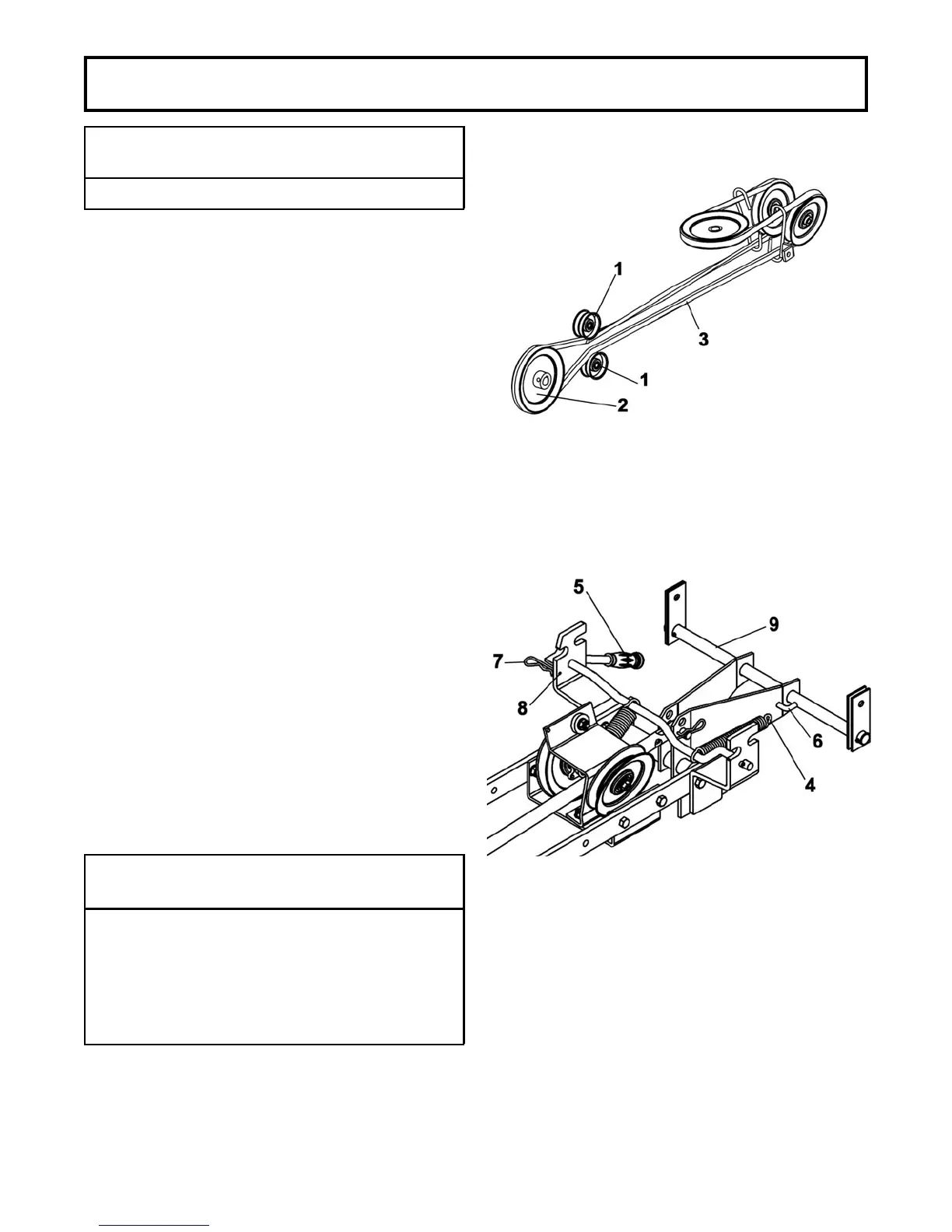

ASSEMBLY
Remove the belt guard from the back of snowblower.
Move the tension arm (item 5) towards the back to
facilitate installation.
Install the belt on the snowblower by inserting it between
the two flat pulleys (item 1) and around the snowblower
pulley (item 2).
Install the belt under the tractor as shown and make
sure the bottom strand (item 3) between the snowblower
pulley and the left hand side pulley is not twisted.
18
NOTE: Do not hook the helper spring (item 4) to the lift
lever (item 9) right now. The belt must be adjusted
before installing the spring.
Apply tension on the belt by moving the tension arm
(item 5) towards the front
Check the tension on the belt and adjust if necessary.
See maintenance section for adjustment instructions.
Raise the snowblower in order to install the helper
spring.
Move the tension arm (item 5) towards the back.
Hook the helper spring (item 4) in the eyelet (item 6) that
is welded to the lift lever (item 9).
Apply tension on the belt by moving the tension arm
towards the front.
Secure in the hole (item 8) with a 3 mm hair pin (item 7).
9 CAUTION 9
TO PREVENT INJURIES:
Always raise the attachment to reduce the
tension on the spring before applying or
releasing tension on the helper spring. Firmly
hold the handle when you release the tension
because the arm will kick back due to the tension
on the spring.
Install belt
Install helper spring
9
CAUTION
9
Never use the snowblower without the belt guard.
