ASSEMBLY

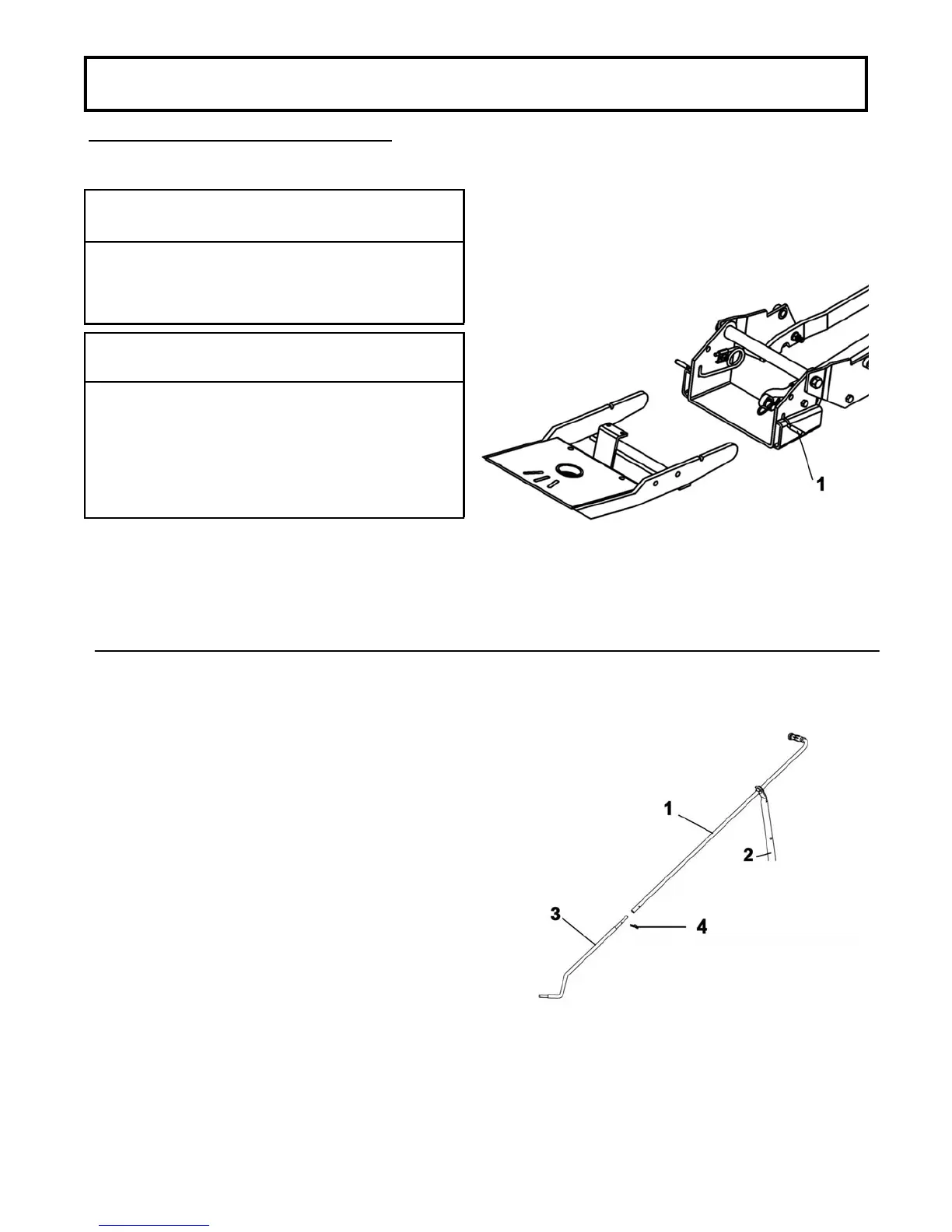

Install the rotary broom to the subframe as shown.
Make sure the rotary broom is pushed in until locked
into place by the springs (item 1).
Insert the handle (item 1) into the support (item 2) as
shown.
Install the handle (item 1) on the control rod (item 3)
as shown and secure with a 2.5 mm hair pin.
20
ROTARY BROOM INSTALLATION:
Refer to Rotary Broom owner’s manual, parts
breakdown section for parts identification.
9
WARNING
9
FOR YOUR SECURITY:
Read the Rotary Broom owner's manual for
safety precautions and rules.
Follow the assembly and operation instructions.
9
WARNING
9
TO PREVENT INJURIES:
Stop the motor.
Apply parking brakes.
Remove the ignition key.
Disconnect the wire from the spark plug(s) and
keep away from spark plug(s) to prevent accidental
starting.
Install the rotary broom
Install the handle
