5
I
MPORTANT
: This thermostat is designed to be used only with
heating controls system with a maximum switching load of 2A
at 30VDC or 0,25A at 230VAC.
I
NSTALLATION OF THERMOSTAT
Position the thermostat on a wall surface away from
obstructions and direct heat sources or draughts, in a room
that is warmed by the heating system. The fixing of the
transmitter can be done either with the screws and wall plug or
with the double side adhesive depending on the wall surface

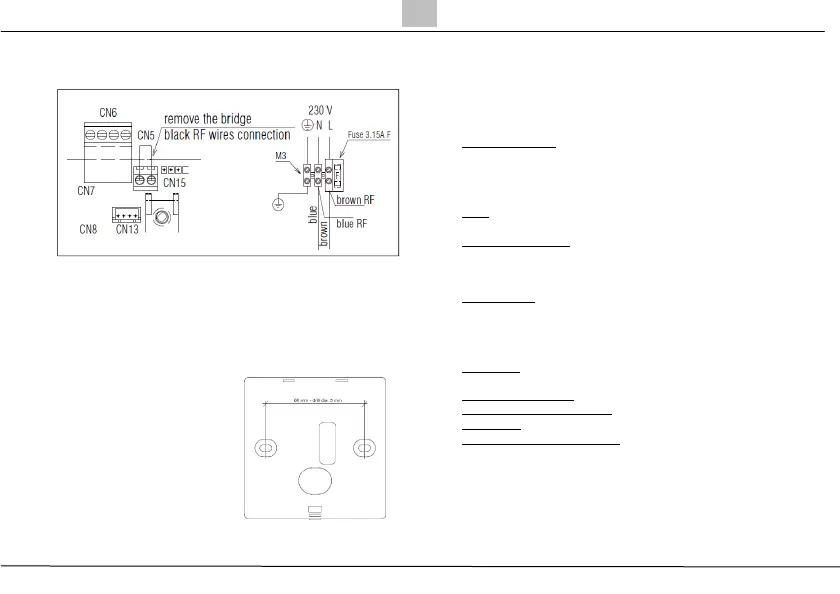

quality (both supplied). See the side diagram as reference to
drill the wall. Distance between 2 holes is 60 mm, drill hole dia.
5 mm.
In the case of using wall plug,
the transmitter box must be
open to fix the screws to the
wall plug from inside the box.
The opening of the transmitter
must be done pressing gently
the lower button and leverage
on the upper side. Fit the
supplied two batteries inside
the transmitter with the
direction as indicated
internally.
W
ARNING
! Do not touch the printed circuit board of the
transmitter as it contains electrostatically sensitive
components.
F
UNCTIONS
The weekly thermostat has the following functions:
• Room thermostat: the internal temperature sensor detects
the temperature and, comparing with the set point, switches
ON or OFF the heating request (according the programmed
timings). The temperature sensor is located on the lower
side of the item.
• Time: on the display it is possible to set and read the time
(weekly hours display mode)
• Programming timing: it is possible to select the desired ON
or OFF heating times. The programming is possible during
one week 24-hours and the minimum time segment is one
hour.
• Status mode: AUTO, PARTY, OFF: Select AUTO mode if
timed ON/OFF period are required. Select PARTY mode for
constant ON (24-hours). Select OFF mode for heating OFF
(summer mode). Note: summer/winter selection is better to
be selected on the main boiler dashboard.
• ADVANCE functions: the pre-programmed heating pattern
is advanced to the next ON (or OFF) period
• 3 level temperatures: comfort, economy and frost protection
• Frost protection functionality
• Battery low
• Room temperature calibration
