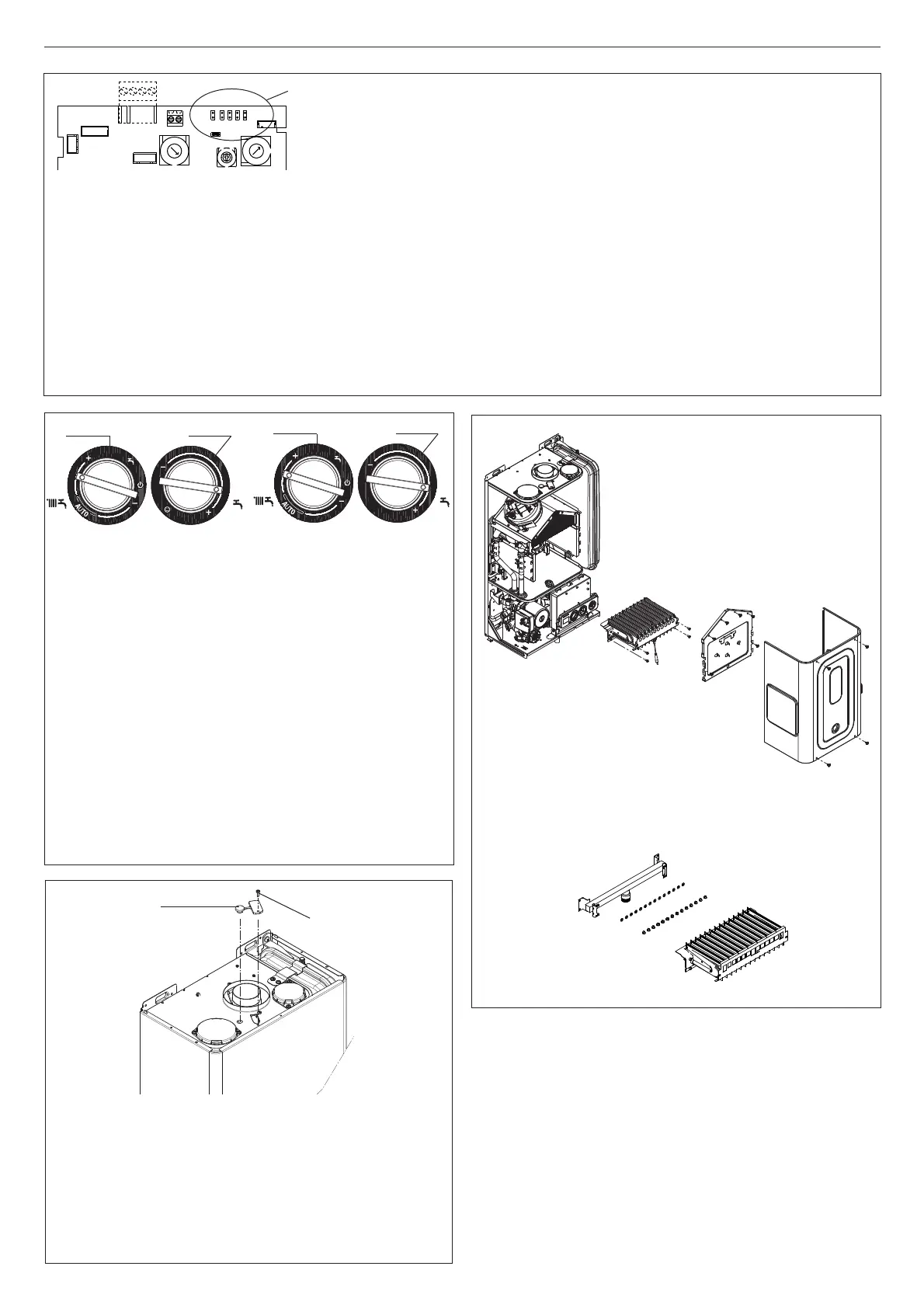

fi g. 16
fi g. 18
[EN]
A cover
B screw
A
[EN]
JP1 Bridge to enable function calibration
JP2 Bridge to adjust maximum heating
JP3 Bridge to select MTN-LPG
fi g. 17
[EN] MIN heating minimum calibration
MAX heating maximum calibration
B
C
MAXMIN
[F]
JP1 Shunt activation fonction de réglage
JP2 Shunt réglage de chauffage maximum
JP3 Shunt sélection MTN-GPL
[F] MIN. réglage de chauffage minimum
MAX. réglage de chauffage maximum
[F]
A couvercle
B vis
[ES]
JP1 Puente habilitación función regulación
JP2 Puente regulación de la máxima
calefacción
JP3 Puente selección MTN - GLP
[ES] MÍN regulación mínima calefacción
MÁX regulación máxima calefacción
[ES]
A tapa
B tornillo
[PT]
JP1 Ponte habilitação função calibragem
JP2 Ponte regulação máximo aquecimento
JP3 Ponte selecção MTN-GPL
[PT] MÍN. calibragem mínimo aquecimento
MÁX. calibragem máximo aquecimento
[PT]
A tampa
B parafuso
JP1
JP2
JP3
JP4
JP5
JP6
CN8
CN7
CN6
CN5
CN12
1
CN13
P1
P2
B
A
B
C
MAXMIN
C.S.I.
R.S.I.
fi g. 19
[SRB]
A omot
B vite
[TR]
A kapak
B vida
[SRB] MIN podešavanje minimuma grejanja
MAX podešavanje maksimuma grejanja
[TR]
MİN ısıtma minimum kalibrasyonu
MAKS ısıtma maksimum kalibrasyonu
[SRB]
JP1 Ograničenje funkcije mosta
podešavanje
JP2 Regulacija mosta maksimalno zagrevanje
JP3 Most izaberite MTN-GPL
[TR]
JP1 Fonksiyon kalibrasyonunu etkinleştirmek için köprü
JP2 Maksimum ısıyı ayarlamak için köprü
JP3 MTN - LPG seçen köprü
