Beretta POWER MAX 50 P DEP User Manual

8
POWER MAX 65 P - 80 P
1
2
3
4
5
1
4
5
6
10
16
6
7
8
9
10
22
20
21
23
24
17
2
21
22
23
3
16
15
1211 13 14
17
18
19

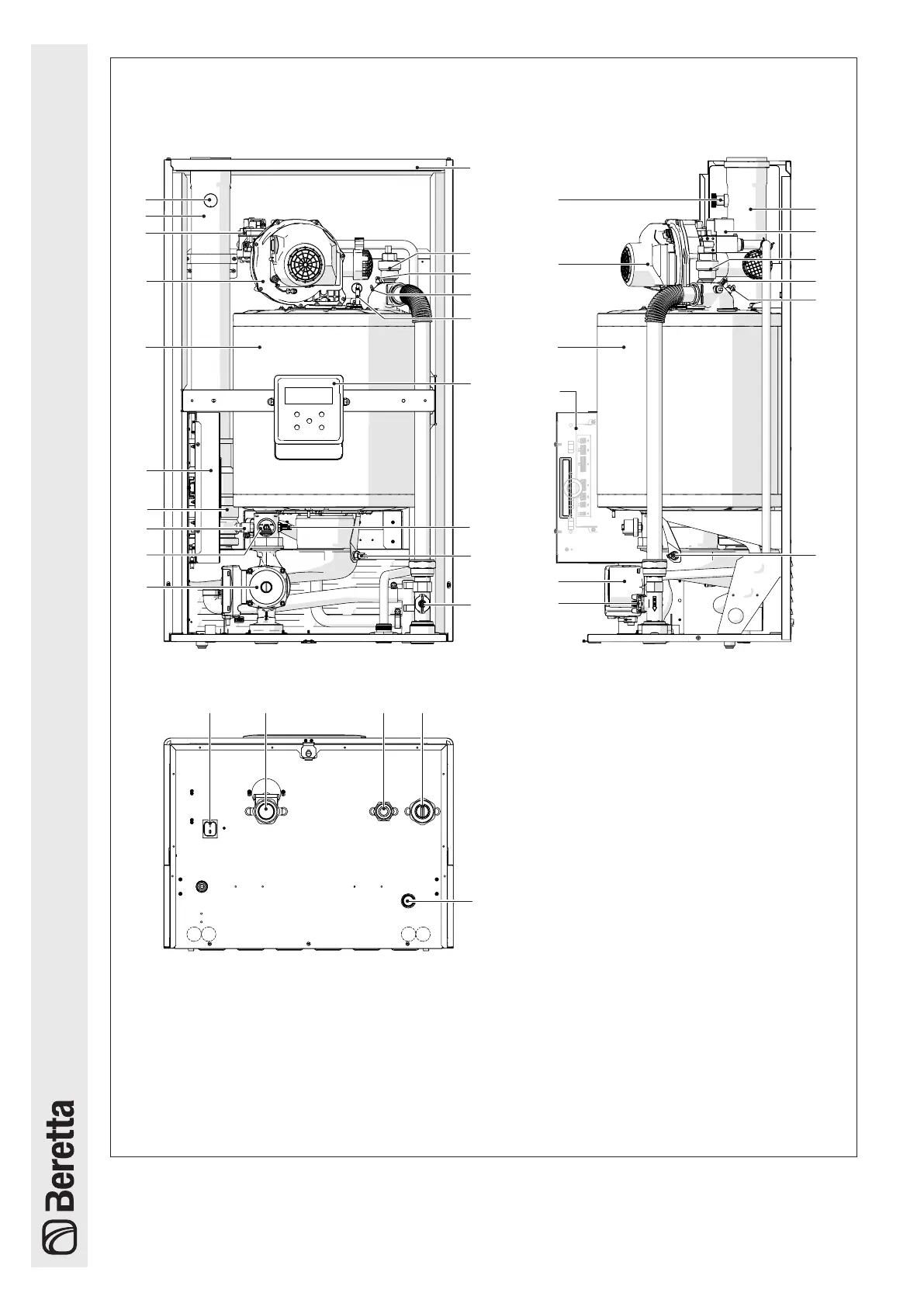

1 Flue gas analysis outlet
2 Flue gas exhaust connection
3 Gas valve
4 Fan
5 Combustion chamber
6 Electrical panel
7 Smoke-exhaust ue non-return valve
8 Drain cock
9 Minimum Pressure Switch set at 0,7 bar
10 Pump
11 Main switch
12 Central heating return
13 Gas supply
14 Central heating ow
15 Condensate drain connection
16 Flow-meter
17 Exhaust ue probe
18 Return probe
19 Control panel
20 Ignition/detection electrode
21 Safety Thermostat with manual reset by PCB
22 Flow probe
23 Automatic bleed valve
24 Casing

Beretta POWER MAX 50 P DEP Specifications
