RolloTec cutoff relay with/without extension unit outgo
ing
feeders
Page 4/7
10/2023
Connecting and mounting the cutoff relay

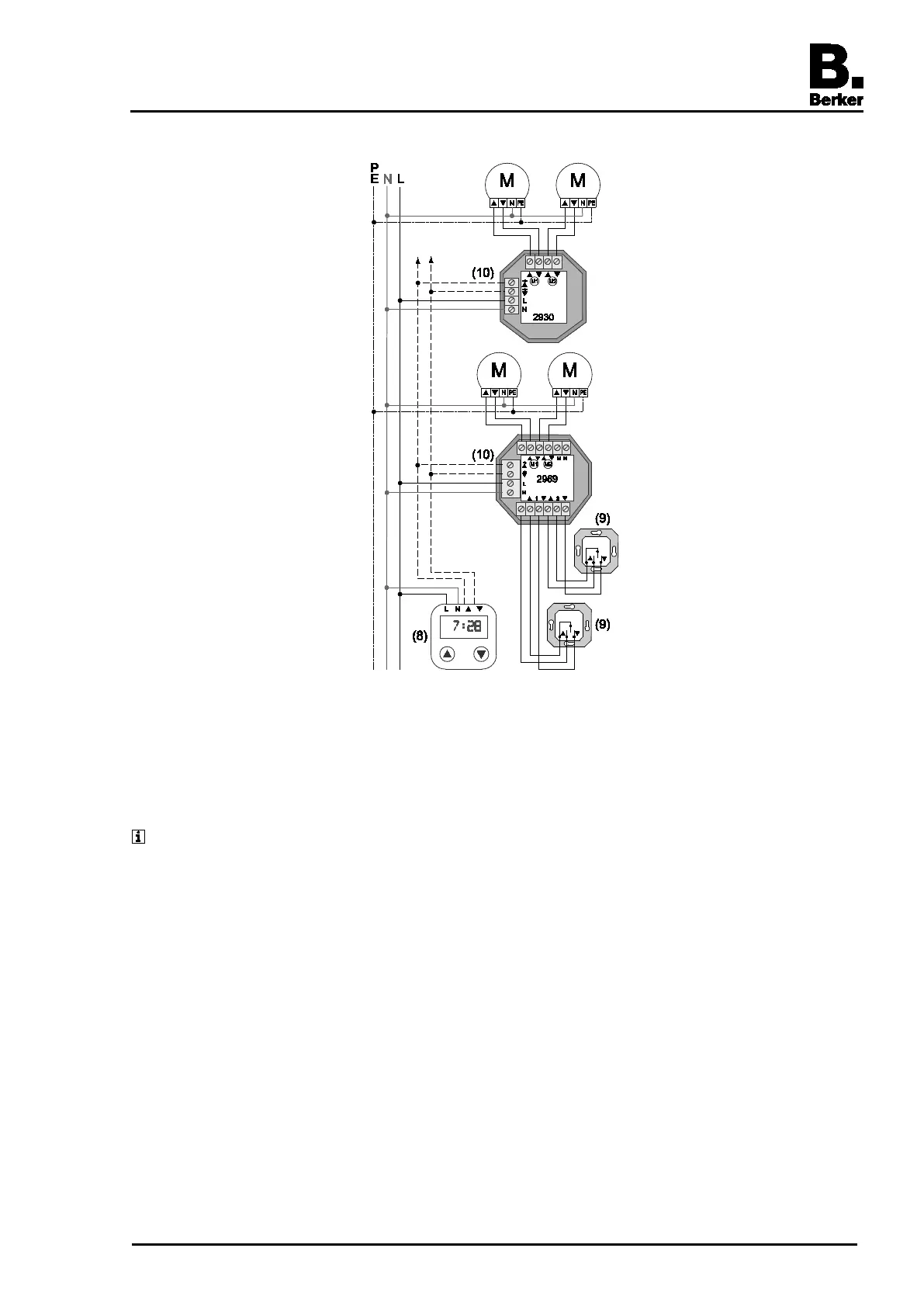

Figure 3

Connect cutoff relay according to connection diagram (Figure 3).

Mount cutoff relay in
- separate junction box.
- Switch box according to DIN 49073.
Recommendation: Use deep switch box.
The cutoff relay is connected and ready for operation.
