INSTALLATION

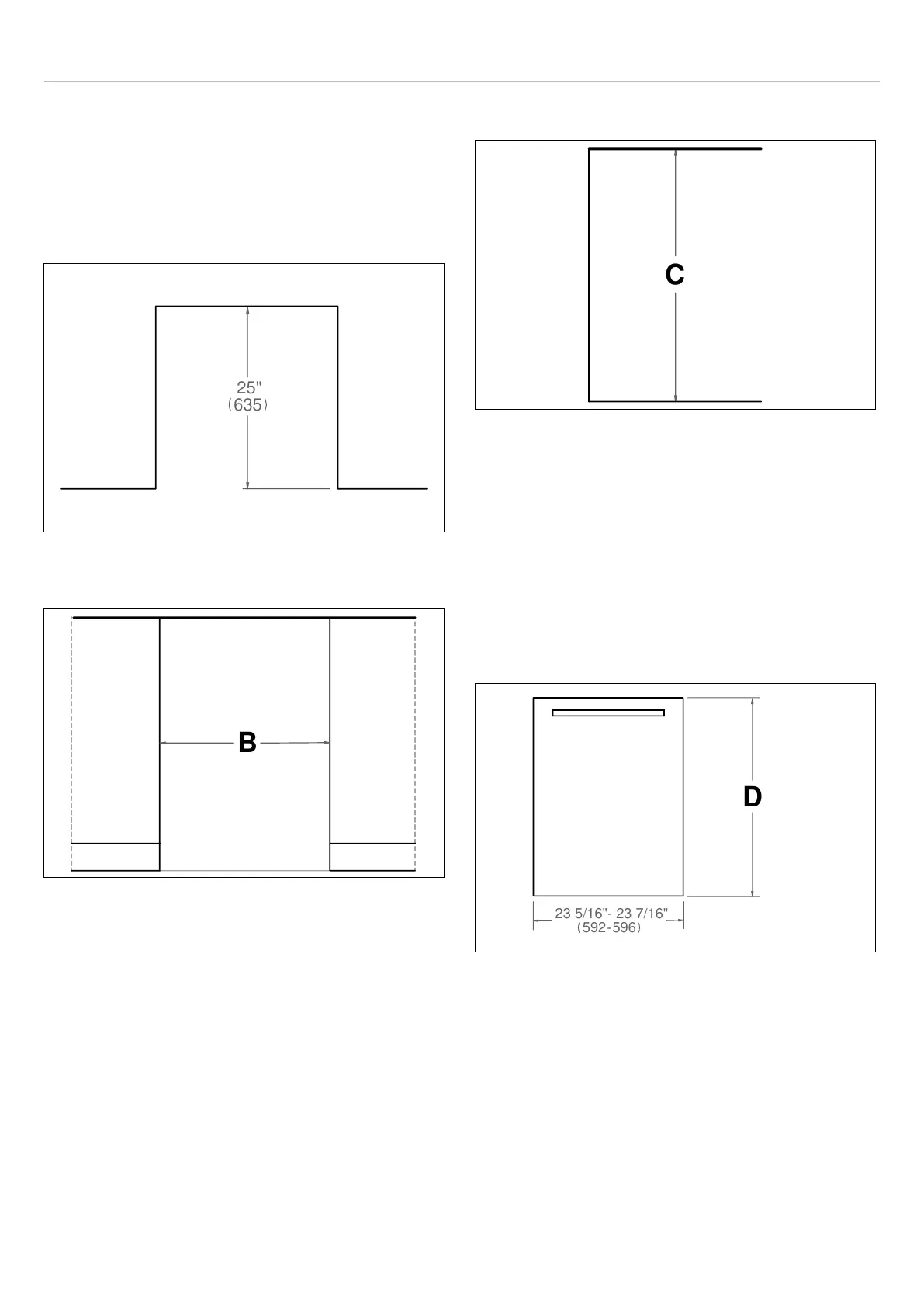

CUTOUT DIMENSIONS
Cabinet depth shown includes kitchen cabinet front panel.
For a flush installation, a minimum inset depth of 22 1/2″
(570) is required with a custom door panel thickness of 3/4″
(20).
TOP VIEW
Fig. 2
FRONT VIEW
Fig. 3
• B 23 5/8″ (600mm)* or 24″ (610mm)**
* without side trims
** with side trims installed
SIDE VIEW
Fig. 4
• C 34″ - 36″ (864mm-914mm)
CUSTOM DOOR PANEL (FOR PANEL-READY
MODELS)
The thickness of the custom panel may vary. A minimum 1/
2″ (13 mm) thick panel is required, but the thickness can be
increased provided the panel does not exceed 18 lb (8 kg) .
The custom door panel template provided accommodates
25″ 5/16 (592 mm) – 23″ 7/16 (596 mm) wide panels.
FRONT VIEW
Fig. 5
• D 27 1/16″ - 29 13/16″ (687mm-757mm)
ELECTRICAL REQUIREMENTS
Please check the electrical standards and local codes
before installing the appliance.
Connect to a properly rated, protected, and sized power
supply circuit to avoid electrical overload. The dishwasher
is designed for an electrical supply of 120 V (volts), 60 Hz
(hertz), AC, connected to a separate, properly-grounded
electrical circuit servicing only this appliance, with a fuse or
23 5/16 "- 23 7/16"
59 2- 596
D
10
