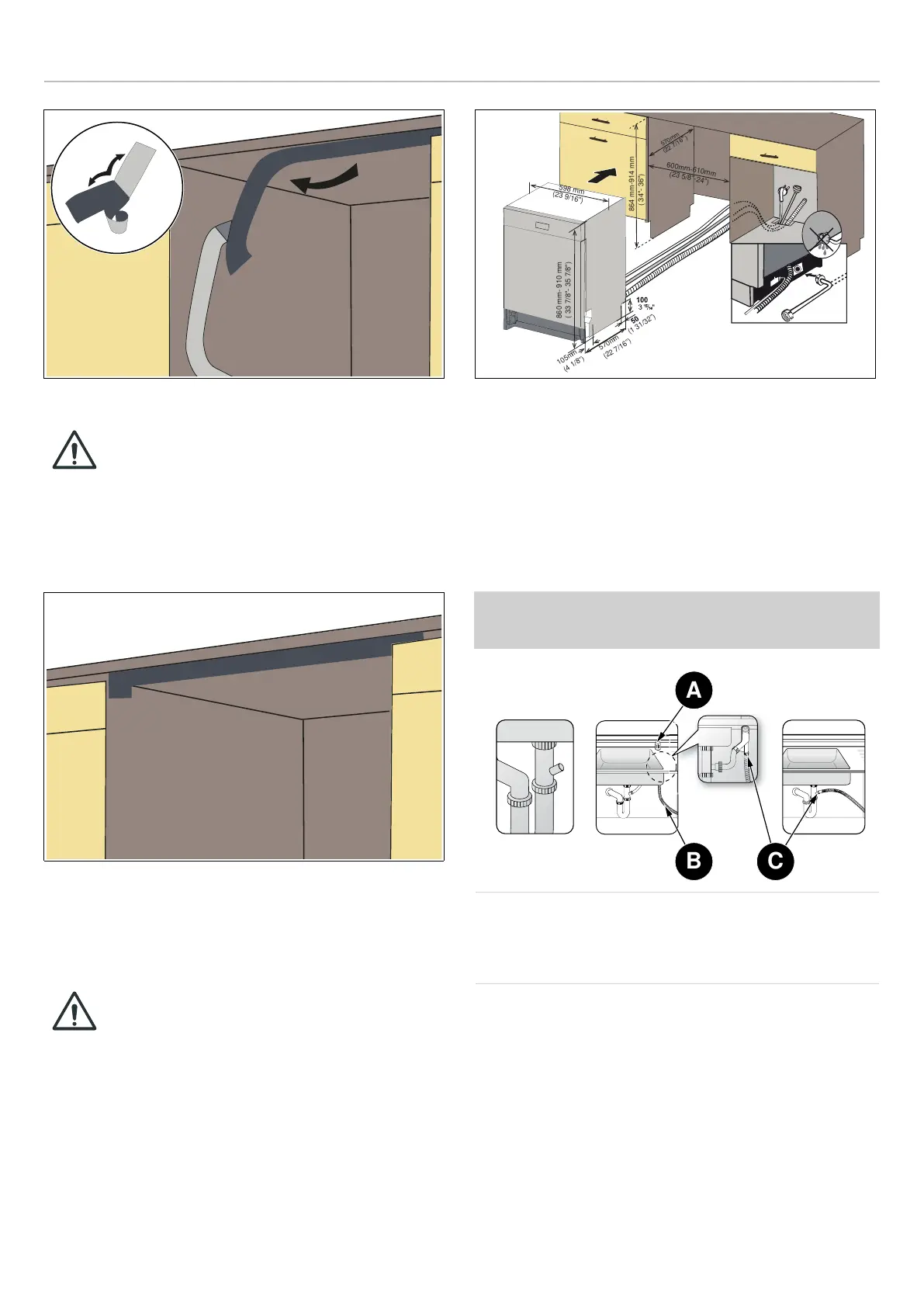

INSTALLATION
Fig. 15
CAUTION
Steam protection foil must be applied
where the steam escapes when the door is
first opened. Failure to install the steam
protection foil during installation can
lead to damage to the cabinets and
countertop.
Fig. 16
PLACEMENT OF DISHWASHER INTO THE OPENING
Now place the dishwasher into the opening and get ready
to connect all hoses and electrical connections.
CAUTION
Make sure that all hoses are pulled through
the side opening of the cabinet, that no
hoses are kinked and that all slack is taken
out as shown in the figure.
Fig. 17
DRAIN HOSE CONNECTION
1) Check the parts on the sink to which the drain hose will
be connected.
2) There are several ways to insert the drain hose into the
drain hose connector of the sink, as shown in the
following figures. You must connect the drain hose in
accordance with the water pipe installation regulations in
your region.
GARBAGE
DISPOSAL
WITH AN AIR
GAP
WITHOUT AN
AIR GAP
• A Air gap
• B Drain hose
• C Hose clamp
570mm
860 mm- 910 mm
( 33 7/8"- 35 7/8")
105m
m
570m
m
(22 7/16”)
(4 1/8”)
(22 7/16")
(1 31/32”)
( 34"- 36")
864 mm-914 mm
598 mm
600mm-610mm
(23 5/8"-24")
(23 9/16")
17
