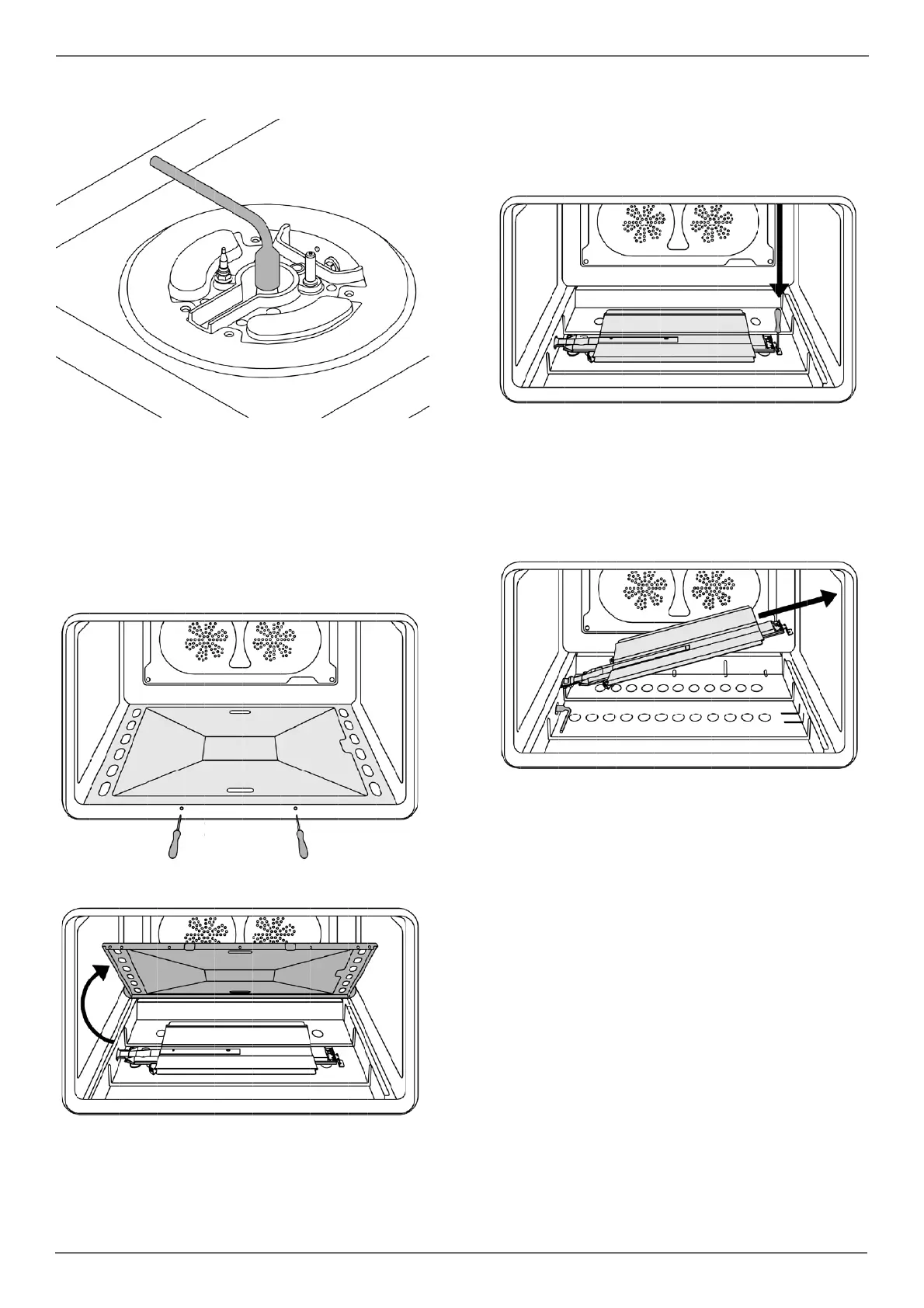

Step 3: oven burner (main or auxiliary)
To replace the nozzles of the main oven bur-
ner, start by removing the door and the bot-
tom panel of the oven.
Remove the screw located on the right side of the
burner and pull out the burner from its support.
ATTENTION: pay extra attention to avoid damage
to the igniter and thermocouple.
Unscrew the nozzle located inside the gas fi tting
using a 7 mm [ socket wrench].
Replace the nozzle as table number 1.
/ Gas conversion
1
2
3
4
