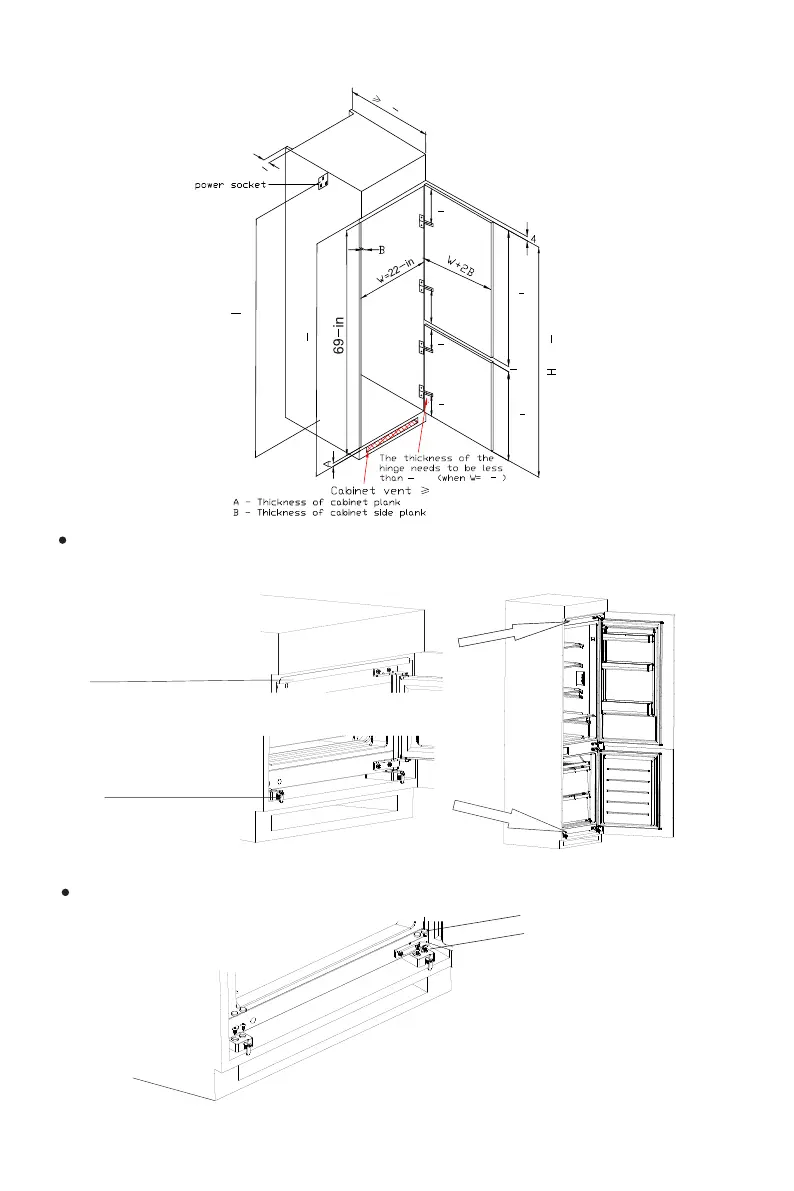

Push the refrigerator into the cabinet and adjust it to make sure the edgefold of top baffle completely
touch the top edge of the cabinet, and the Stopper bracket of supporting leg completely touch
the bottom edge of the cabinet.
Fix the supporting leg with screws, then install the screw caps.
6
Edgefold of top baffle
Stopper bracket
Screw cap
Screw
