Beta 1760/IR800 - User Interface Overview; Front Panel Layout; Display Indications

EN

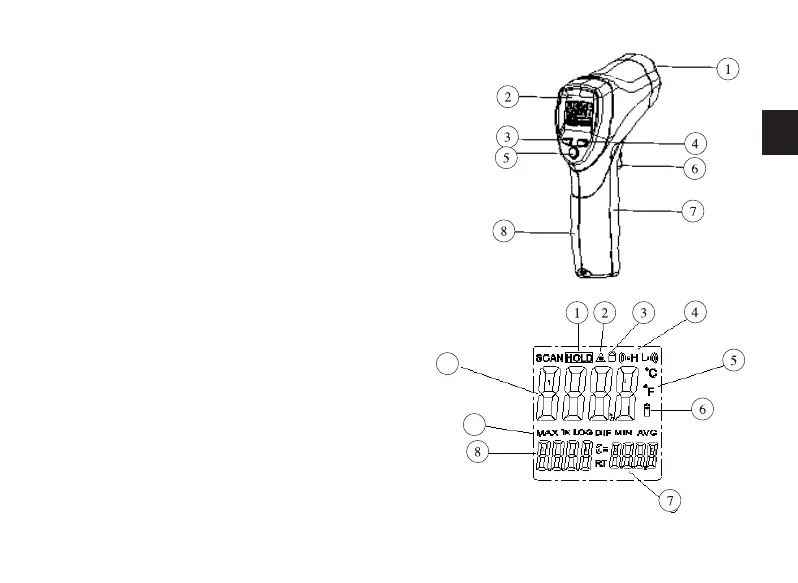

FRONT PANEL DESCRIPTION
IR sensor
LCD Display Laser pointer beam
Up key
Down key
Mode selection key
Measurement Push button (trigger)
Battery Cover
Handle Grip
1
2
3
4
5
6
7
8
9
10
INDICATIONS ON DISPLAY
Measurement maintenance
Laser ” on” symbols
Continuous
measurement method symbol
High or low alarm
℃/℉ symbol (Celsius/Fahrenheit)
Battery download symbols
Emissivity
symbol and value
Maximum temperature values (MAX)
Symbols for maximum values (MAX)
Current
temperature value
1
2
3
4
5
6
7
8
9
10
