• Connect detergent trigger wires to
“DETERGENT” and rinse solenoid wires to
“RINSE”, connecting one wire to HOT and
the other to the appropriate voltage (use
115 for 90-115V, and 230 for voltages a bit
over 230)
• WHT & BLK = 120V 50/60 Hz
• WHT& RED = 230V 50/60 Hz
• If you want to inject both detergent and
rinse using the rinse solenoid during the
rinse cycle, connect the trigger signal to one
side of the terminal block and jump the
signal to the other side.
If using a pressure switch, connect it to the
+RINSE green PCB connection

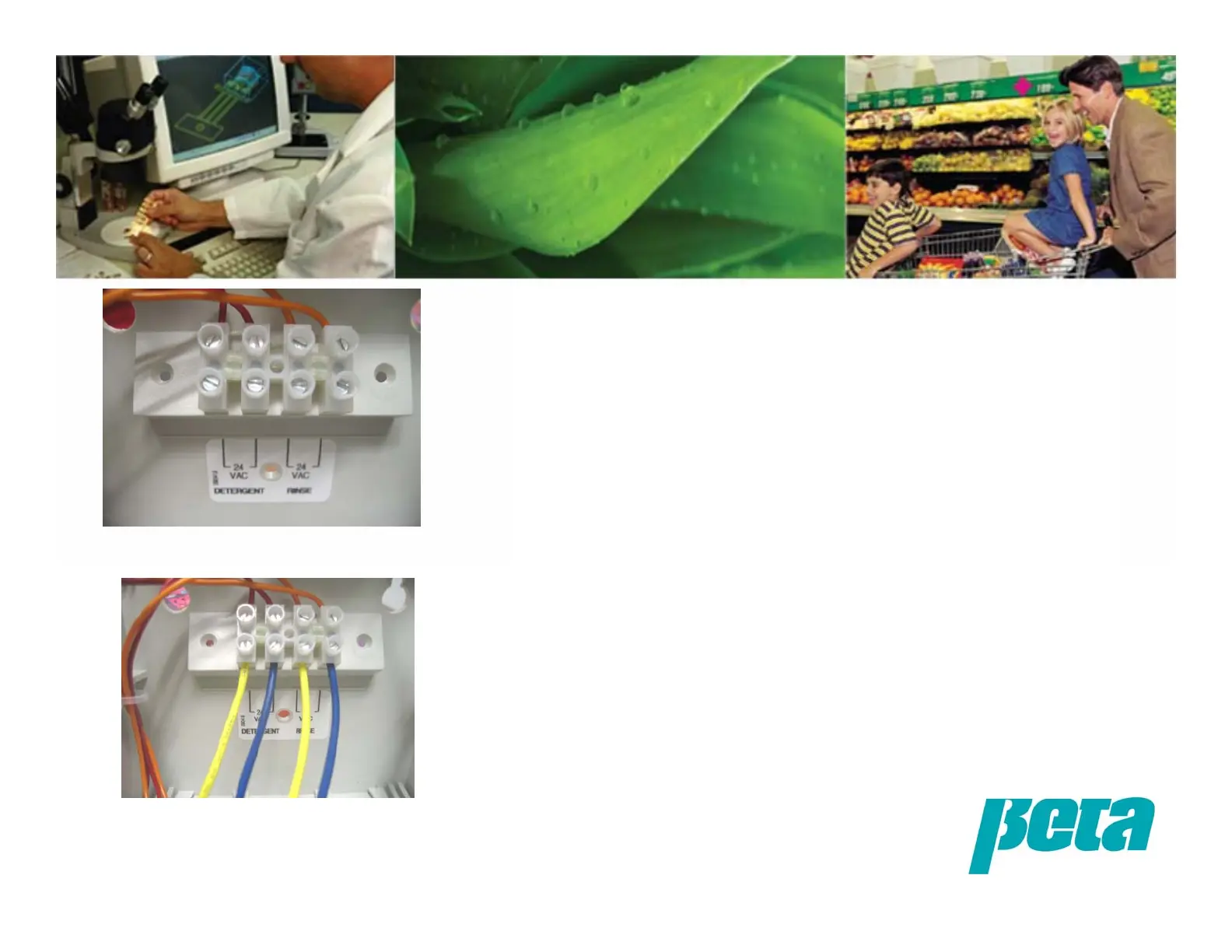

Terminal block before connecting power
wires
Terminal block after connecting power wires
WIRING: Trigger Connection
