• Mount conductivity probe 3-4 inches (8-10 cm) under the
water line, about 3”-5”/7-12cm under the detergent
injection point and as close to the wash pump intake

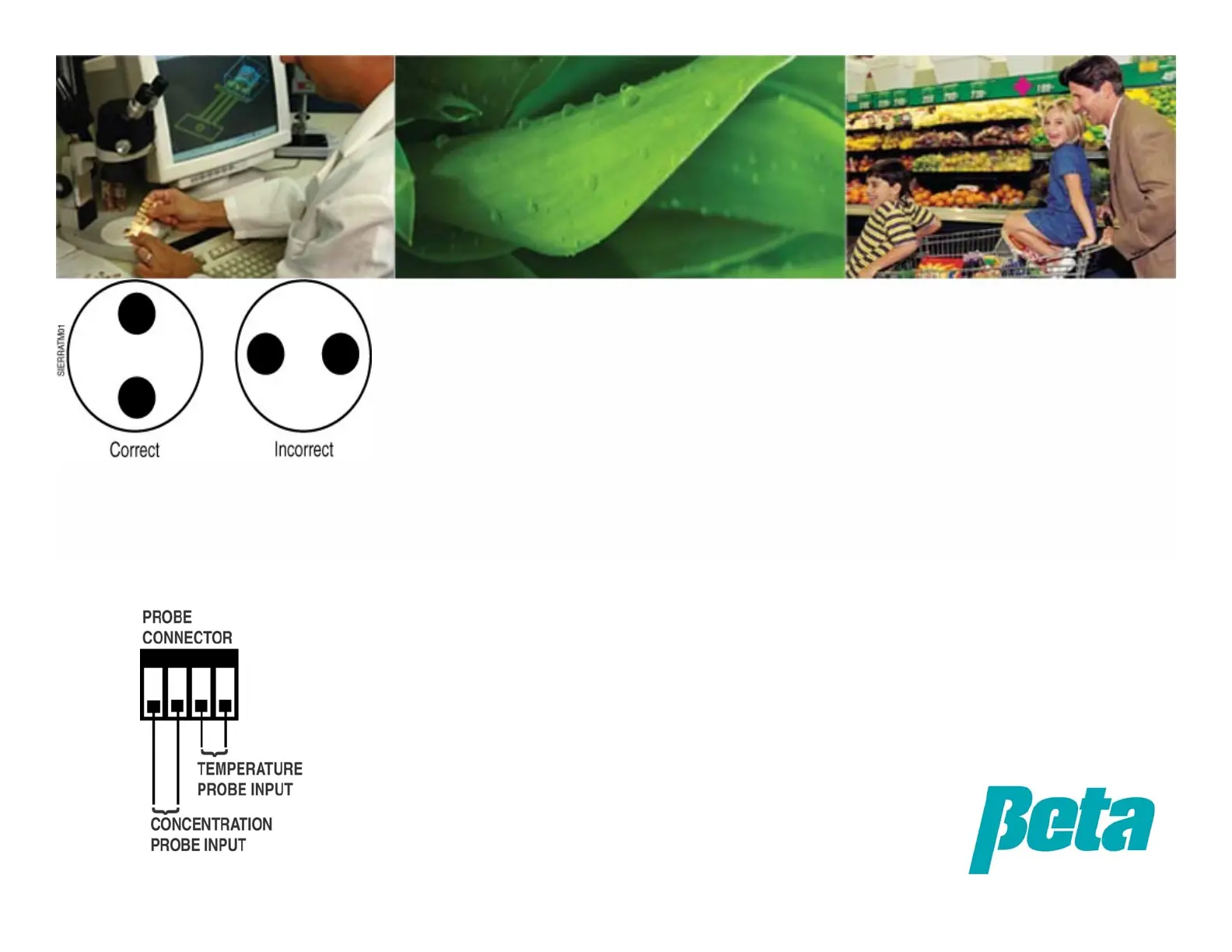

strainer as possible. The terminals should be vertically
oriented as shown.
• Note: Some shallow tanks have probe holes on the wall, but when
pots run through they can carry out so much of the rinse water that
the water level may drop over 4”(10CM)/below the probe hole; in
these cases mount the probe through the bottom of the washer
.
• Ensure the probe location is not close to heater elements,
corners, or in the path of moving mechanical components.
Ensure the probe location is in an area with plenty of
circulation
• Connect probe wires to COND input. If using a temperature
compensated probe, run the thermistor/temperature wires
to the TEMP input
• Probe wires can be run out of the pumpbox with low level
wires since they don’t emit electrical noise, but they must
be separated from noisy power and trigger wires
Be sure you do not mount the probe in an
old hole that’s a bad location, since that
can produce bad probe readings or subject
the probe to too much thermal shock
WIRING: Probe Connection
