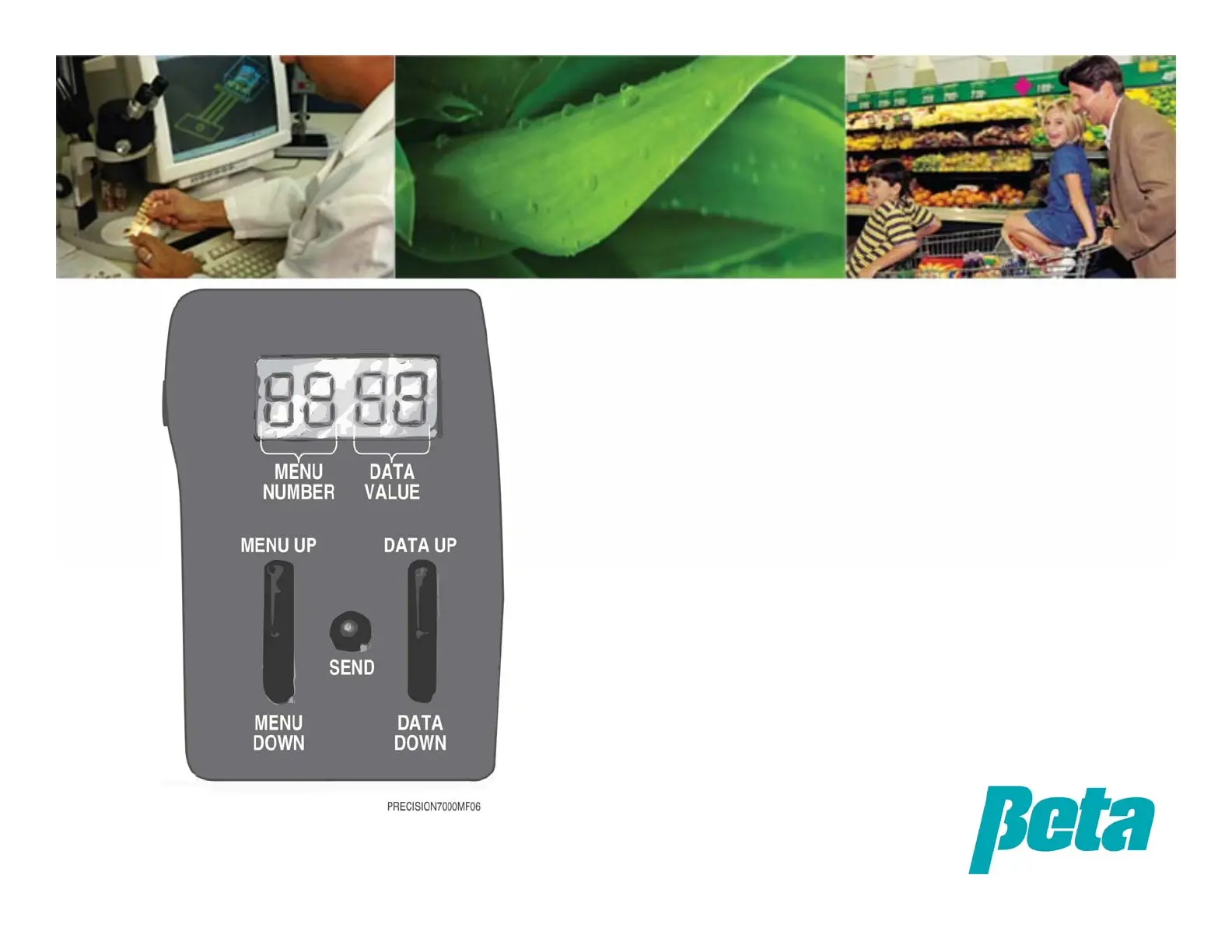

• The telephone cable (090358) used on the
UNIVIEW displays the following symptoms
when the a wire is severed or the socket
connection is dubious such that the contact is
OPEN:
• Black wire: UNIVIEW display is blank / PCB
operates ok.
• Red wire: UNIVIEW reads data but will not
send data to PCB / PCB operates ok.
• Green wire: UNIVIEW shows 4 bars on display
/ PCB operates ok.
• Yellow wire: UNIVIEW display is blank / LED
on PCB is always on instead of flashing and
no other functions work.
• Menu 11 & 12 don’t appear? Screen 11 & 12
are only used for data reporting (trigger
status etc) with the D5000, and thus aren’t
displayed on the UniView.
UniView Communication Trouble
