Quick™ Adjustments
Height of Cut

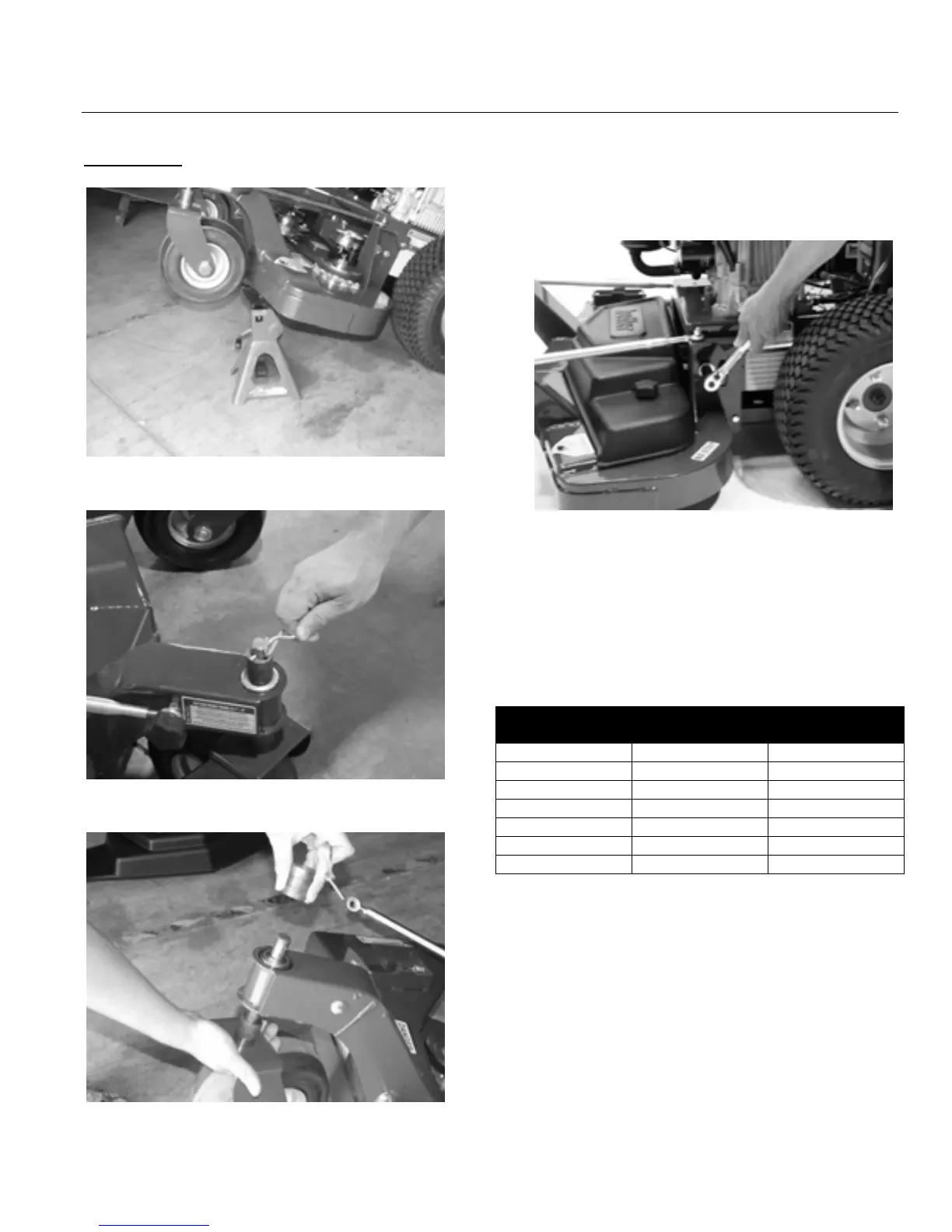

1. Support front of deck with a jack stand Figure 7.
Figure 7
2. Remove twist pin (10800) from the top of caster fork
Figure 8.
Figure 8
3. Remove HOC spacers (10004) and slide caster fork
out Figure 9.
Figure 9
4. Add/remove spacers to the bottom side of the fork
for desired height of cut. See table below.
5. Install in reverse order and repeat on other fork.
6. Using a 3/4” socket, loosen the nut 1-1/2 to 2 full
turns for the rear height of cut adjustment on both
sides Figure 10.
Figure 10
7. Pull up or push down on the rear of the deck to align
the arrow on the rear adjusters so that they both
point to the number position that matches your
caster fork setting and retighten nuts.
8. The height-of-cut can be adjusted from 1 to 4 inches
(25 to 100 mm).
Note: Machines leave the factory set at 2-1/2
inches.
Grass Height Front
Casters
Rear
Adjustment
1 inch 0 spacers 0
1 ½ inches 1 spacer 1
2 inches 2 spacers 2
2 ½ inches 3 spacers 3
3 inches 4 spacers 4
3 ½ inches 5 spacers 5
4 inches 6 spacers 6
