The Base Lock Screw is pre-installed on the Base
Remove the Base Lock Screw
360°
Lower Arm can rotate 180°.
180°
Lower Arm can rotate 360°.

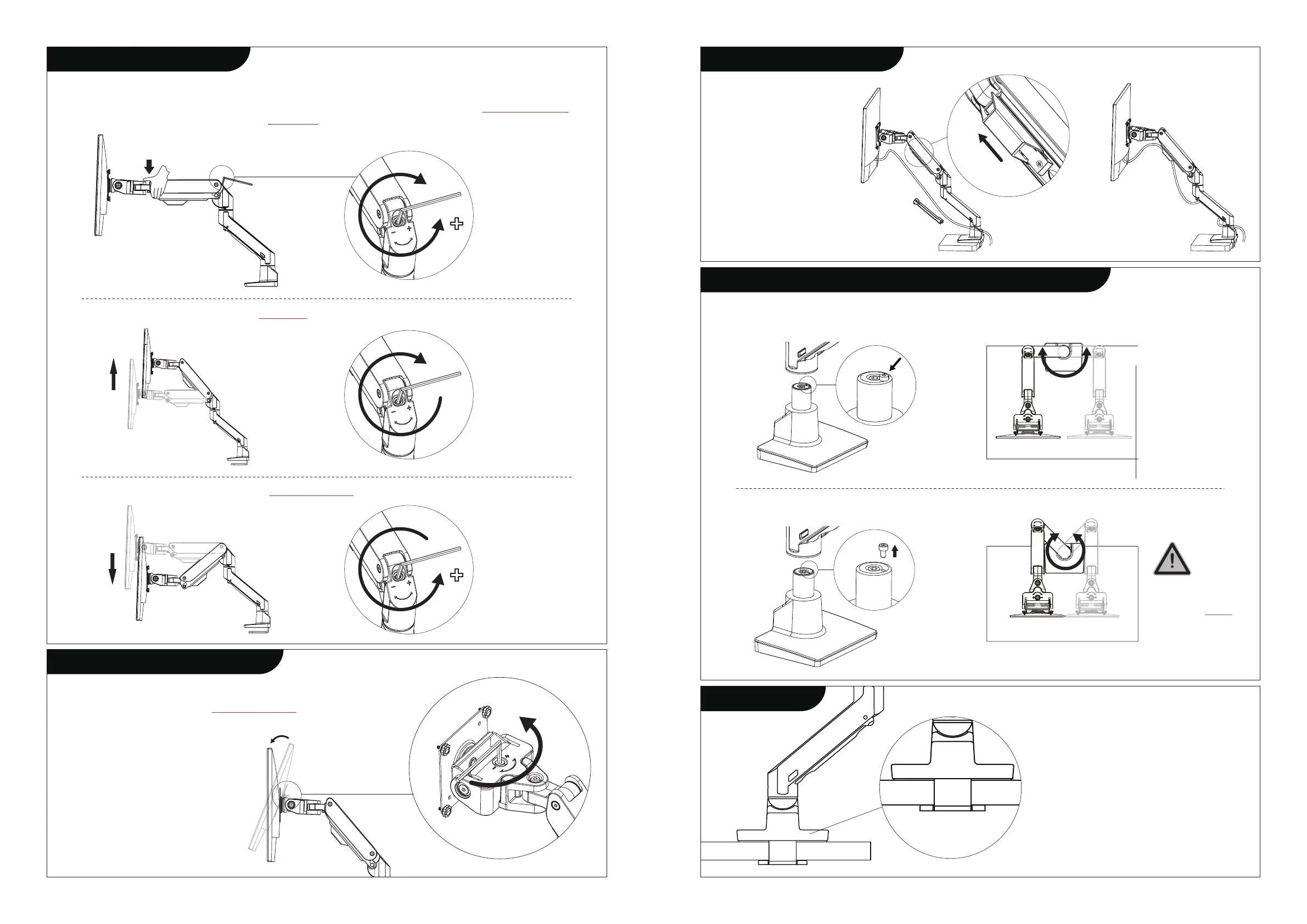

Adjust Arm Tension
⑥
Cable Management
⑧
Optional Installation – Lower Arm Rotation Lock
⑨
Monitor Tilt Adjustment
⑦
By using the Allen Wrench you can adjust the gas spring tension in the Upper Arm. Adjust the screw counter-clockwise (+) to
increase gas spring tension. Adjust the screw clockwise (-) to decrease gas spring tension.
To avoid any damage and facilitate easy adjustment, hold the arm in a horizontal position during tension adjustment.a.
If the arm rises, turn the adjustment screw clockwise (-) until it stays in a horizontal position.
b.
If the arm droops, turn the adjustment screw counter-clockwise (+) until it stays in a horizontal position.
c.
For extremely heavy monitors, if the monitor tilt does not stop at the desired angle,
please turn the top tension screw counter-clockwise (+) using the Allen Wrench so
that the tilt tension increases to hold the monitor tilt at the desired angle.
It is suggested to adjust the top tension
screw by up to 5 full rotations rst.
Upper Arm Cable Cover:
remove by pushing cover
in direction of the arrow
(some extra force
may be needed).
Lower Arm Cable Cover:
pinch and squeeze
protruding aps of the
cover, then gently
remove.
The Lower Arm rotation lock is used to prevent the monitor arm from swinging into oce divider, screen or wall.
To avoid tipping. DO NOT
position the monitor past
the back of the desk.
CAUTION:
Attention
Note that after all the screws are tightened
according to the instructions, the monitor still
slowly slide to one side. Please check if the table
is slightly tilted. Because the monitor is very
heavy, the table will tilt slightly after installation,
resulting in imbalance of the product lever. You
can try to weigh down the table with some
heavy things to see if this is still the case.
If you still have questions, please contact us.
