CA 4146 – Examples
20
7. Examples
Inserting devices at any location
Devices such as microphone stations, interpreter stations and digital / analogue interfaces are looped in anywhere in the system.
Additional power supply units for chains
MCS-D 200 control unit (1 integrated power supply = 2 A) . . . . . . . . . . . . . . . . . . for approx. 15 devices
MCS-D 200 control unit option A (2 intergrated power supplies = 4 A). . . . . . . . . . for approx. 30 devices
To expand the system:
CA 4146 power supply unit (6 A) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . for approx. 45 devices

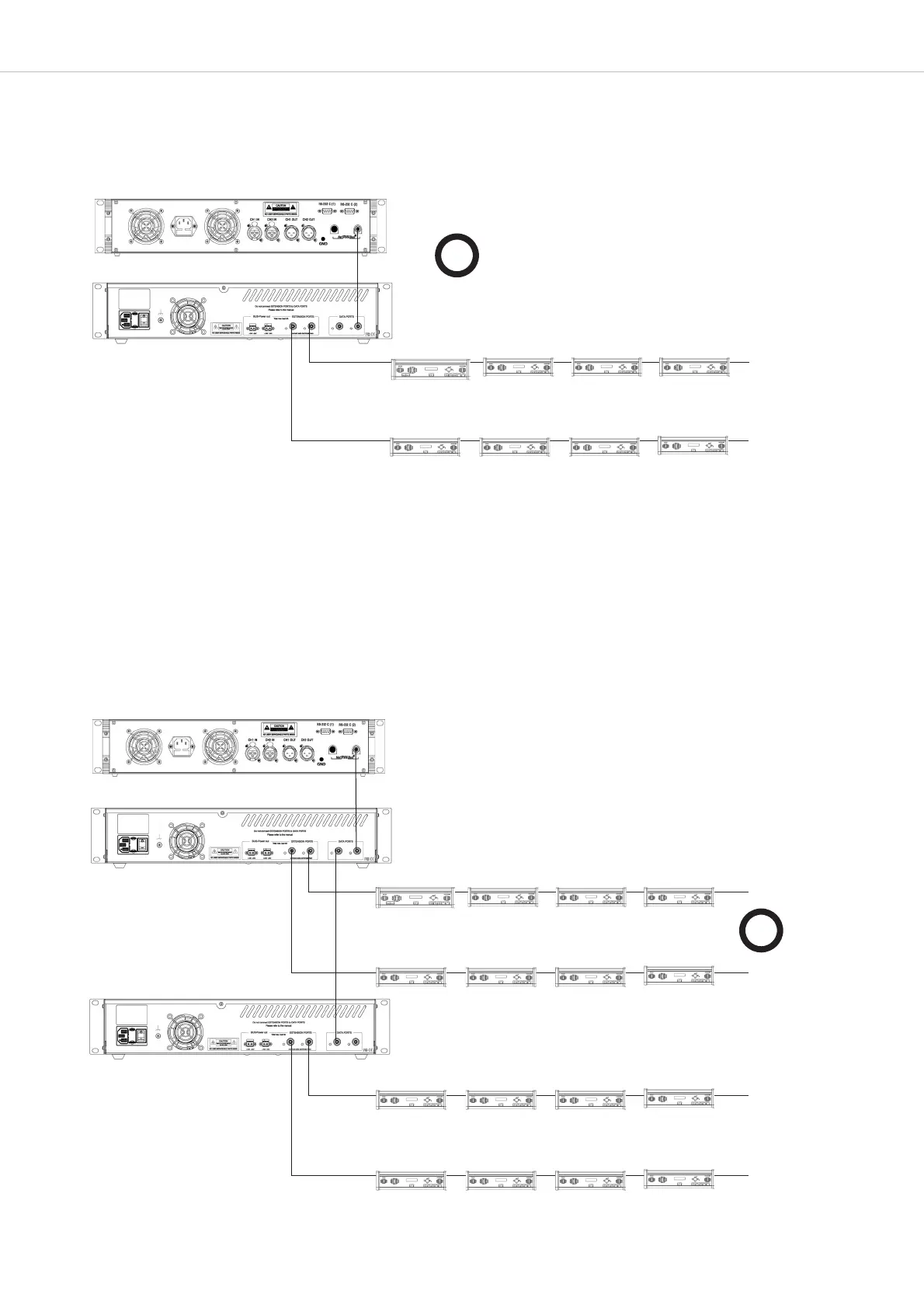

Connect the control unit and the power supply unit with each other via the DATA PORTS.
Connect all devices consuming power such as microphone units, interpreter stations, digital / analogue interfaces and adapters to the
EXTENSION PORTS.
MCS-D 200 control unit
OK
CA 4146 power supply unit
OK
MCS-D 200 control unit
CA 4146 power supply unit
CA 4146 power supply unit
more
microphone units
more
microphone units
more
microphone units
more
microphone units
more
microphone units
more
microphone units
